ABB 1SBN010013R1010

CB5-10 Impulse Contact Block

MPN
1SBN010013R1010
EAN
3471522121042
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare ABB parts? We buy surplus →

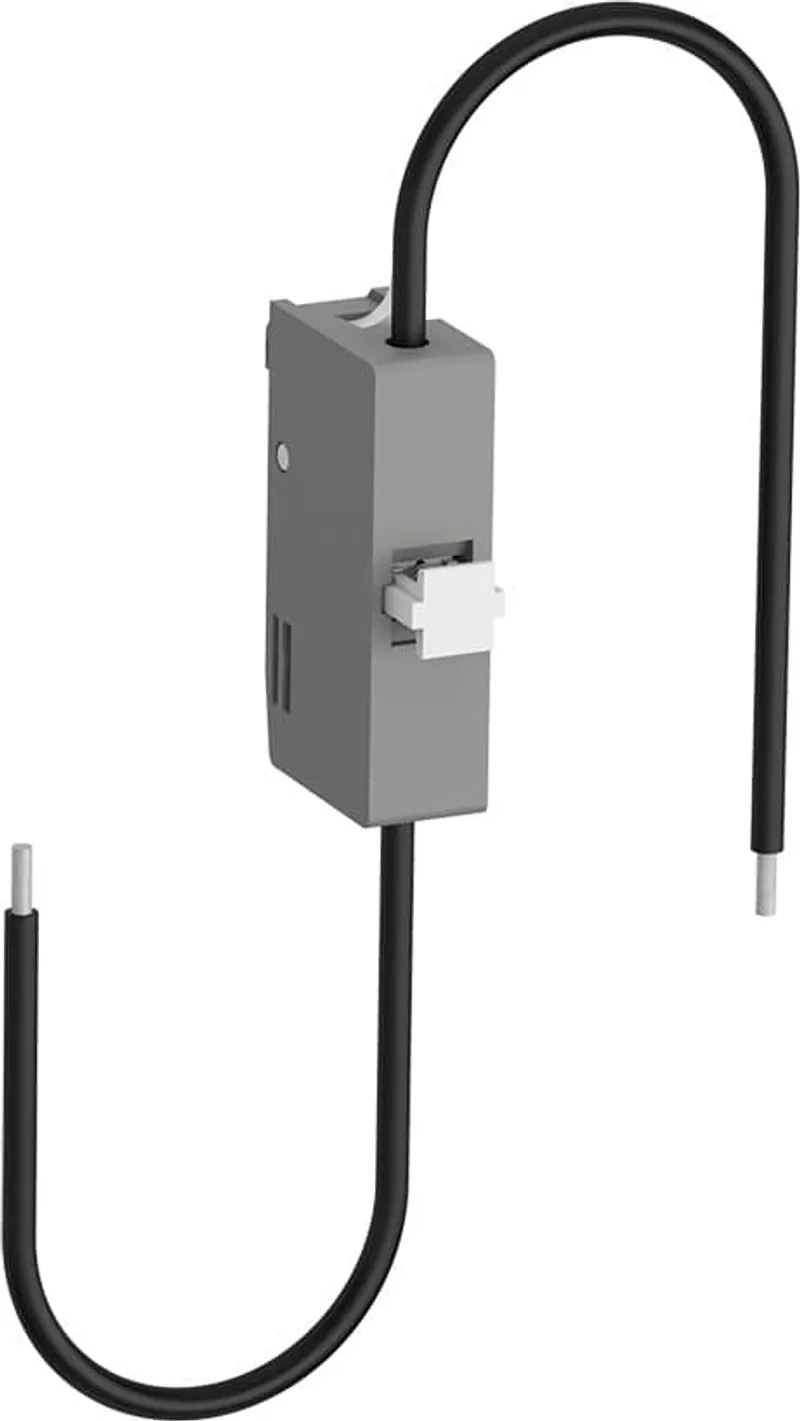

What is the ABB 1SBN010013R1010?

CB5-01 is an impulse contact blocks are designed for use in enclosures, in association with an adjustable mechanical pushbutton. CB5-01:

includes a N.C. contact with a light grey actuator ("OFF" function)

is equipped with 2 connecting leads 0.5 mm² with end, approximately 18 cm long

is clipped onto the front face of the contactors.

Specifications

General

Order code (ABB product ID)1SBN010013R1010
TypeCB5-10
LifecycleActive (current ABB product)

Ordering

Minimum Order Quantity1 piece
Customs Tariff Number85389099

Dimensions

Product Net Width9.8 mm
Product Net Depth / Length21.6 mm
Product Net Height36 mm
Product Net Weight0.012 kg

Technical

Number of Auxiliary Contacts NO1
Number of Auxiliary Contacts NC0
Number of Poles1P
StandardsUL 508, CSA 22.2 No. 14
Rated Operational VoltageAuxiliary Circuit 600 V
Rated Operational Current AC-15 (I<sub>e</sub>)(24 / 127 V) 6 A, (220 / 240 V) 3 A
Terminal TypeScrew Terminals
Suitable ForAF09, AF09Z, AF12, AF12Z, AF16, AF16Z, AF26, AF26Z, AF30, AF30Z, AF38, AF38Z, AF40, AF52, AF65, AF80, AF96, AFC09, AFC12, AFC16, AFC26, AFC30, AFC38, AF45, AF50, AF63, AF75, A9, A12, A16, A26, A30, A40, A45, A50, A63, A75, A95, A110, AL9, AL9Z, AL12, AL12Z, AL16, AL16Z, AL26, AL30, AL40, AE45, AE50, AE63, AE75, TAL9, TAL12, TAL16, TAL26, TAL30, TAL40, TAE45, TAE50, TAE75, GA75, GAE75, UA16, UA26, UA30, UA50, UA63, UA75, UA95, UA110
Product NameImpulse Contact Block

Material Compliance

RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2BBusiness To Business
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)

External Classifications and Standards

Object Classification CodeK
ETIM 7EC000041 - Auxiliary contact block
ETIM 8EC000041 - Auxiliary contact block
ETIM 9EC000041 - Auxiliary contact block
eClassV11.0 : 27371302
UNSPSC39121522
IDEA Granular Category Code (IGCC)4743 >> Auxiliary contact block
E-Number (Finland)3709194

1SBN010013R1010: frequently asked questions

When can 1SBN010013R1010 be shipped?

1SBN010013R1010 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1SBN010013R1010 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1SBN010013R1010 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SBN010013R1010, subject to availability and destination.
