ABB 1SBN010010W1001 – CA5-01 Auxiliary Contact Block

MPN: 1SBN010010W1001 · Brand: ABB

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	ABB Block Contactors
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.014 kg
UPC / EAN	3471522121554

Shipping & availability

When can 1SBN010010W1001 be shipped?

1SBN010010W1001 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1SBN010010W1001 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1SBN010010W1001 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SBN010010W1001, subject to availability and destination.

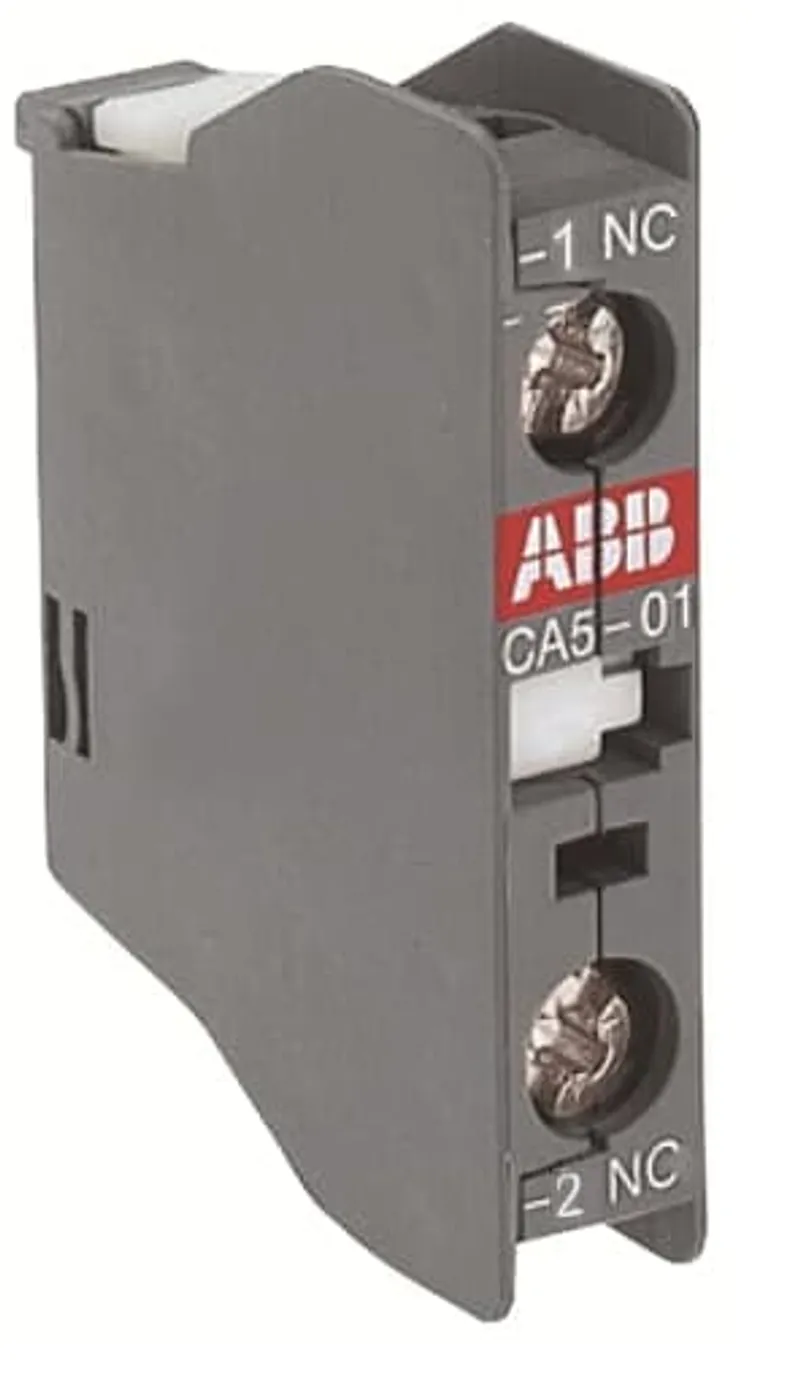

CA5-01 is a 1-pole front mounted auxiliary contact block equipped with screw terminals and can be fitted on A serie contactors and N serie contactor relays. CA5-01 is available with 1 N.C. instantaneous contacts for standard industrial environments.

CA5-01 in W version is available in multiple packing.

Specifications

General

Order code (ABB product ID)	1SBN010010W1001
Type	CA5-01
Lifecycle	Active (current ABB product)

Ordering

Minimum Order Quantity	60 piece
Customs Tariff Number	85389099

Dimensions

Product Net Width	11 mm
Product Net Depth / Length	32.5 mm
Product Net Height	47 mm
Product Net Weight	0.014 kg

Technical

Number of Auxiliary Contacts NO	0
Number of Auxiliary Contacts NC	1
Number of Poles	1P
Rated Operational Voltage	Auxiliary Circuit 690 V
Rated Frequency (f)	Auxiliary Circuit 50 / 60 Hz
Rated Operational Current AC-15 (I<sub>e</sub>)	(500 V) 2 A, (690 V) 2 A, (24 / 127 V) 6 A, (220 / 240 V) 4 A, (380 / 400 V) 3 A
Rated Operational Current DC-13 (I<sub>e</sub>)	(24 V) 6 A / 144 W, (48 V) 2.8 A / 134 W, (72 V) 1 A / 72 W, (110 V) 0.55 A / 60 W, (125 V) 0.55 A / 69 W, (220 V) 0.30 A / 66 W, (250 V) 0.3 / 75 W
Short-Circuit Protective Devices	Auxiliary Circuit - gG Type Fuses 10 A
Rated Short-time Withstand Current Low Voltage (I<sub>cw</sub>)	for 0.1 s 140 A, for 1 s 100 A
Rated Insulation Voltage (U<sub>i</sub>)	acc. to IEC 60947-5-1 690 V, acc. to UL/CSA 600 V
Maximum Electrical Switching Frequency	1200 cycles per hour
Mechanical Durability	10 million, 3 million
Maximum Mechanical Switching Frequency	3600 cycles per hour
Minimum Switching Capacity	A9 ... A75 17 / 5 VLT4K, A95 ... A110 24 / 50 VLT4K
Power Loss	at Rated Operating Conditions per Pole 0.1 W
Degree of Protection	acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20
Terminal Type	Screw Terminals
Suitable For	AF45, AF50, AF63, AF75, AF95B, GAF75, A9, A12, A16, A26, A30, A40, A45, A50, A63, A75, A95, A110, AL9, AL9Z, AL12, AL12Z, AL16, AL16Z, AL26, AL30, AL40, AE45, AE50, AE63, AE75, TAL9, TAL12, TAL16, TAL26, TAL30, TAL40, TAE45, TAE50, TAE75, GA75, GAE75, UA16, UA26, UA30, UA50, UA63, UA75, UA95, UA110, UA16RA, UA26RA, UA30RA, UA50RA, UA63RA, UA75RA, UA95RA, UA110RA, UAF75RA, UAF95RA, UAF110RA, N22E, N31E, N40E, NL22E, NLZ22E, NL31E, NLZ31E, NL40E, NLZ40E, TNL22E, TNL31E, TNL40E
Product Name	Auxiliary Contact Block
Remarks	100

Material Compliance

RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B	Business To Business
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)

External Classifications and Standards

Object Classification Code	K
ETIM 7	EC000041 - Auxiliary contact block
ETIM 8	EC000041 - Auxiliary contact block
ETIM 9	EC000041 - Auxiliary contact block
eClass	V11.0 : 27371302
UNSPSC	39121500
