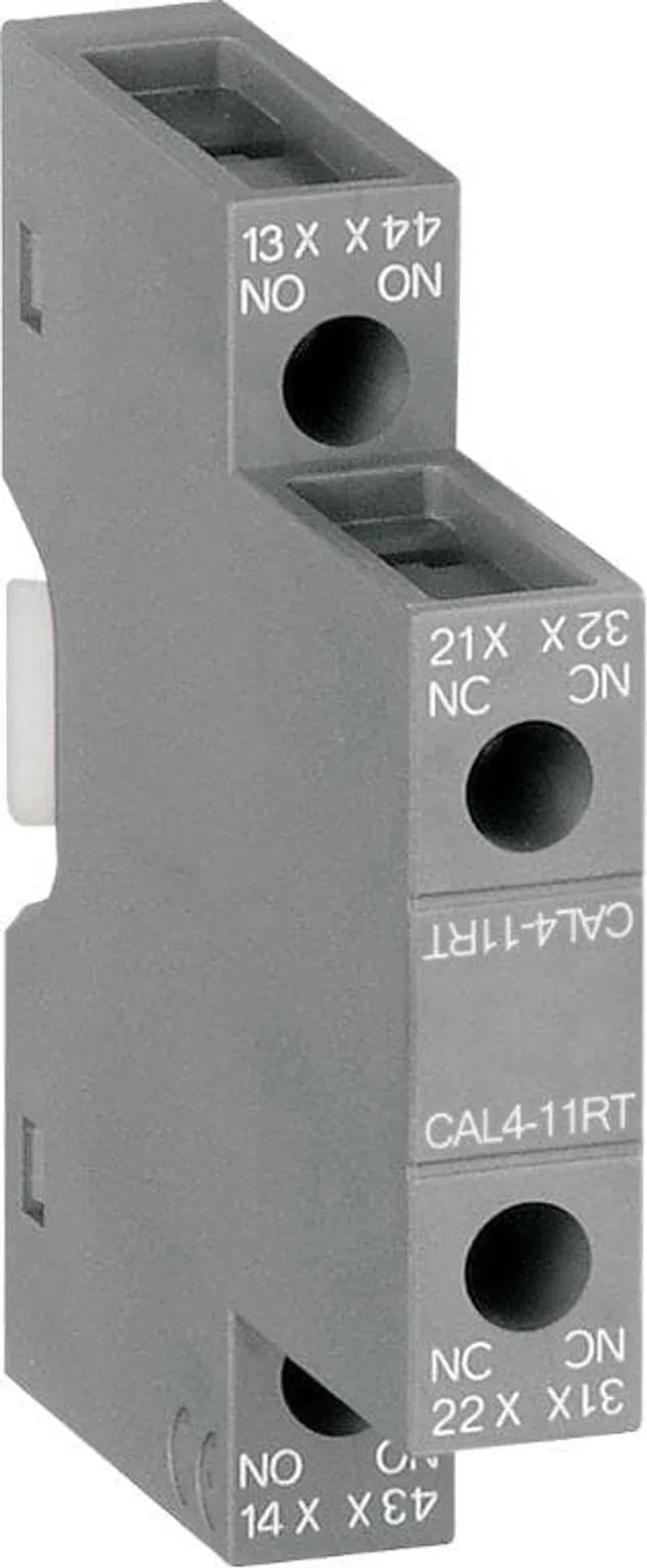

AF96B-30-11RT-13 100-250V50/60HZ-DC Contactor — photo 1 of 3

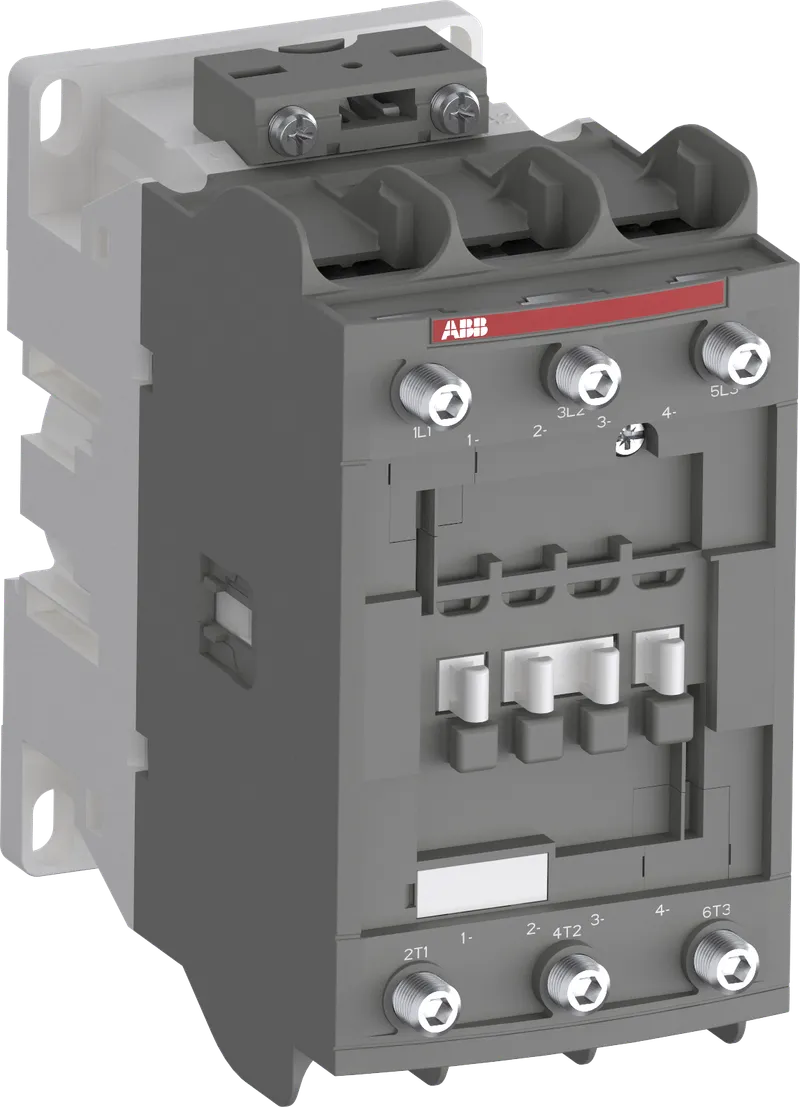

AF96B-30-11RT-13 100-250V50/60HZ-DC Contactor — photo 2 of 3

AF96B-30-11RT-13 100-250V50/60HZ-DC Contactor — photo 3 of 3

Available on request

ABB 1SBL407060R1311 – AF96B-30-11RT-13 100-250V50/60HZ-DC Contactor

MPN: 1SBL407060R1311 · Brand: ABB

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	ABB AF Contactors
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	1.1 kg
UPC / EAN	3471523026148

Shipping & availability

When can 1SBL407060R1311 be shipped?

1SBL407060R1311 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1SBL407060R1311 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1SBL407060R1311 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SBL407060R1311, subject to availability and destination.

The AF96B-30-11RT-13 is a 3 pole - 1000 V IEC or 600 UL contactor with pre-mounted auxiliary contacts and RT terminals, controlling motors up to 45 kW / 400 V AC (AC-3) or 60 hp / 480 V UL and switching power circuits up to 130 A (AC-1) or 115 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (100-250 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.

Specifications

General

Order code (ABB product ID)	1SBL407060R1311
Type	AF96B-30-11RT-13
Lifecycle	Active (current ABB product)

Ordering

Minimum Order Quantity	1 piece
Customs Tariff Number	85364900

Dimensions

Product Net Width	82 mm
Product Net Depth / Length	116 mm
Product Net Height	131 mm
Product Net Weight	1.1 kg

Technical

Number of Main Contacts NO	3
Number of Main Contacts NC	0
Number of Auxiliary Contacts NO	1
Number of Auxiliary Contacts NC	1
Number of Poles	3P
Standards	IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60947-1:22, CSA C22.2 No. 60947-4-1:22, IEC 60077-1 (applicable parts), IEC 60077-2 (applicable parts), EN 50155 (applicable parts), IEC 61373, For compliance confirmation on applicable parts based on your application and combination, please consult your ABB sales representatives.
Rated Operational Voltage	Auxiliary Circuit 690 V, Main Circuit 1000 V
Rated Frequency (f)	Auxiliary Circuit 50 / 60 Hz, Control Circuit 50 / 60 Hz, Main Circuit 50 / 60 Hz
Conventional Free-air Thermal Current (I<sub>th</sub>)	acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 130 A, acc. to IEC 60947-5-1, Θ = 40 °C 16 A
Rated Operational Current AC-1 (I<sub>e</sub>)	(690 V) 40 °C 130 A, (690 V) 60 °C 105 A, (690 V) 70 °C 90 A
Rated Operational Current AC-3 (I<sub>e</sub>)	(500 V) 60 °C 80 A, (690 V) 60 °C 57 A, (1000 V) 60 °C 30 A, (380 / 400 V) 60 °C 105 A, (220 / 230 / 240 V) 60 °C 105 A
Rated Operational Current AC-3e (I<sub>e</sub>)	(415 V) 60 °C 96 A, (440 V) 60 °C 96 A, (500 V) 60 °C 80 A, (690 V) 60 °C 57 A, (380 / 400 V) 60 °C 105 A, (220 / 230 / 240 V) 60 °C 105 A
Rated Operational Current AC-15 (I<sub>e</sub>)	(500 V) 2 A, (690 V) 2 A, (24 / 127 V) 6 A, (220 / 240 V) 4 A, (400 / 440 V) 3 A
Rated Operational Current DC-1 (I<sub>e</sub>)	(110 V) 2 Poles in Series, 40 °C 130 A, (110 V) 2 Poles in Series, 60 °C 105 A, (110 V) 2 Poles in Series, 70 °C 90 A, (110 V) 3 Poles in Series, 40 °C 130 A, (110 V) 3 Poles in Series, 60 °C 105 A, (110 V) 3 Poles in Series, 70 °C 90 A, (220 V) 3 Poles in Series, 40 °C 125 A, (220 V) 3 Poles in Series, 60 °C 105 A, (220 V) 3 Poles in Series, 70 °C 90 A, (72 V) 1-Pole, 40 °C 130 A, (72 V) 1-Pole, 60 °C 105 A, (72 V) 1-Pole, 70 °C 90 A, (72 V) 2 Poles in Series, 40 °C 130 A, (72 V) 2 Poles in Series, 60 °C 105 A, (72 V) 2 Poles in Series, 70 °C 90 A, (72 V) 3 Poles in Series, 40 °C 130 A, (72 V) 3 Poles in Series, 60 °C 105 A, (72 V) 3 Poles in Series, 70 °C 90 A
Rated Operational Current DC-3 (I<sub>e</sub>)	(110 V) 2 Poles in Series, 40 °C 130 A, (110 V) 2 Poles in Series, 60 °C 105 A, (110 V) 2 Poles in Series, 70 °C 90 A, (110 V) 3 Poles in Series, 40 °C 130 A, (110 V) 3 Poles in Series, 60 °C 105 A, (110 V) 3 Poles in Series, 70 °C 90 A, (220 V) 3 Poles in Series, 40 °C 130 A, (220 V) 3 Poles in Series, 60 °C 105 A, (220 V) 3 Poles in Series, 70 °C 90 A, (72 V) 1-Pole, 40 °C 130 A, (72 V) 1-Pole, 60 °C 105 A, (72 V) 1-Pole, 70 °C 90 A, (72 V) 2 Poles in Series, 40 °C 130 A, (72 V) 2 Poles in Series, 60 °C 105 A, (72 V) 2 Poles in Series, 70 °C 90 A, (72 V) 3 Poles in Series, 40 °C 130 A, (72 V) 3 Poles in Series, 60 °C 105 A, (72 V) 3 Poles in Series, 70 °C 90 A
Rated Operational Current DC-5 (I<sub>e</sub>)	(110 V) 2 Poles in Series, 40 °C 130 A, (110 V) 2 Poles in Series, 60 °C 105 A, (110 V) 2 Poles in Series, 70 °C 90 A, (110 V) 3 Poles in Series, 40 °C 130 A, (110 V) 3 Poles in Series, 60 °C 105 A, (110 V) 3 Poles in Series, 70 °C 90 A, (110 V) 4 Poles in Series, 40 °C 130 A, (220 V) 3 Poles in Series, 60 °C 105 A, (220 V) 3 Poles in Series, 70 °C 90 A, (72 V) 1-Pole, 40 °C 130 A, (72 V) 1-Pole, 60 °C 105 A, (72 V) 1-Pole, 70 °C 90 A, (72 V) 2 Poles in Series, 40 °C 130 A, (72 V) 2 Poles in Series, 60 °C 105 A, (72 V) 2 Poles in Series, 70 °C 90 A, (72 V) 3 Poles in Series, 40 °C 130 A, (72 V) 3 Poles in Series, 60 °C 105 A, (72 V) 3 Poles in Series, 70 °C 90 A
Rated Operational Current DC-13 (I<sub>e</sub>)	(24 V) 6 A / 144 W, (48 V) 2.8 A / 134 W, (72 V) 1 A / 72 W, (110 V) 1.1 A / 121 W, (125 V) 0.55 A / 69 W, (220 V) 0.27 A / 60 W, (250 V) 0.27 A / 68 W, (400 V) 0.15 A / 60 W, (500 V) 0.13 A / 65 W, (600 V) 0.1 A / 60 W
Rated Operational Power AC-3 (P<sub>e</sub>)	(415 V) 55 kW, (440 V) 55 kW, (500 V) 55 kW, (690 V) 55 kW, (1000 V) 40 kW, (380 / 400 V) 200 kW, (220 / 230 / 240 V) 110 kW
Rated Operational Power AC-3e (P<sub>e</sub>)	(415 V) 55 kW, (440 V) 55 kW, (500 V) 55 kW, (690 V) 55 kW, (380 / 400 V) 100 kW, (220 / 230 / 240 V) 55 kW
Rated Short-time Withstand Current Low Voltage (I<sub>cw</sub>)	at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 140 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 450 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 1200 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 840 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 300 A, for 0.1 s 140 A, for 1 s 100 A
Maximum Breaking Capacity	cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 750 A
Rated Insulation Voltage (U<sub>i</sub>)	acc. to IEC 60947-4-1 1000 V, acc. to IEC 60947-5-1 690 V, acc. to UL/CSA 600 V
Maximum Electrical Switching Frequency	(AC-1) 600 cycles per hour, (AC-15) 1200 cycles per hour, (AC-2 / AC-4) 150 cycles per hour, (AC-3) 1200 cycles per hour, (DC-13) 900 cycles per hour
Maximum Mechanical Switching Frequency	3600 cycles per hour
Rated Control Circuit Voltage (U<sub>c</sub>)	50 Hz 100 ... 250 V, 60 Hz 100 ... 250 V, DC Operation 100 ... 250 V
Coil Consumption	Average Holding Value 50 / 60 Hz 4 V·A, Average Holding Value DC 2 W
Power Loss	at Rated Operating Conditions AC-1 per Pole 8.2 W, at Rated Operating Conditions AC-3 per Pole 4.5 W
Operate Time	Between Coil De-energization and NC Contact Closing 19 ... 105 ms, Between Coil De-energization and NO Contact Opening 17 ... 100 ms, Between Coil Energization and NC Contact Opening 38 ... 95 ms, Between Coil Energization and NO Contact Closing 42 ... 100 ms
Mounting on DIN Rail	TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
Mounting by Screws (not supplied)	2 x M4 or 2 x M6 Screws Placed Diagonally
Connecting Capacity Main Circuit	Flexible with Insulated Ferrule 1/2x 4 ... 35 mm²
Connecting Capacity Auxiliary Circuit	Rigid Solid 1/2x 1 ... 2.5 mm², Rigid Stranded 1/2x 1 ... 2.5 mm²
Connecting Capacity Control Circuit	Flexible with Ferrule 1/2x 0.75 ... 2.5 mm², Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm², Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm², Rigid Solid 1/2x 1 ... 2.5 mm², Rigid Stranded 1/2x 1 ... 2.5 mm²
Degree of Protection	acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20, acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20, acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP10
Recommended Screw Driver	Hexagon 4
Tightening Torque	Auxiliary Circuit 1.2 N·m, Control Circuit 1.2 N·m, Main Circuit 6 N·m
Terminal Type	Ring-Tongue Terminals
Product Name	Block Contactor

Technical UL/CSA

Continuous Current Rating NEMA	0 A
Maximum Operating Voltage UL/CSA	Main Circuit 600 V
General Use Rating UL/CSA	(600 V AC) 115 A
Horsepower Rating UL/CSA	(120 V AC) Single Phase 7-1/2 hp, (200 ... 208 V AC) Three Phase 30 hp, (220 ... 240 V AC) Three Phase 40, (240 V AC) Single Phase 20 hp, (440 ... 480 V AC) Three Phase 75 hp, (550 ... 600 V AC) Three Phase 75 hp
Connecting Capacity Main Circuit UL/CSA	1/2x 17-2 AWG
Connecting Capacity Control Circuit UL/CSA	Rigid Solid 1/2x 18-14 AWG, Rigid Stranded 1/2x 18-14 AWG
Tightening Torque UL/CSA	Auxiliary Circuit 11 in·lb, Control Circuit 11 in·lb, Main Circuit 35 in·lb
Full Load Amps Motor Use	(120 V AC) Single Phase 80 A, (200 ... 208 V AC) Three Phase 92 A, (220 ... 240 V AC) Three Phase 80 A, (240 V AC) Single Phase 88 A, (440 ... 480 V AC) Three Phase 77 A, (550 ... 600 V AC) Three Phase 77 A

Environmental

Ambient Air Temperature	Close to Contactor Fitted with Thermal O/L Relay -40 ... 70 °C, Close to Contactor without Thermal O/L Relay -40 ... 70 °C, Close to Contactor without Thermal O/L Relay (Uc) -40 ... 70 °C, Close to Contactor for Storage -60 ... +80 °C
Climatic Withstand	Category B according to IEC 60947-1 Annex Q
Maximum Operating Altitude Permissible	Without Derating 3000 m
Shock and Vibration Withstand acc. to IEC 61373	Category 1, Class B
Pollution Degree	3

Material Compliance

RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B	Business To Business
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)

ABB EcoSolutions

ABB EcoSolutions	Yes
ABB Site Meeting Group Waste To Landfill Target	No non-hazardous waste is sent to a landfill
Improved Energy Efficiency for Customers	Product Efficiency - Product considered more energy-efficient compared to similar product on market or older products from the same line, Product Efficiency - Product requires less energy to operate compared to similar product on market or older products from the same line
Recyclability Rate of the Product acc. to EN45555	Design for Closing Resource Loops - Standard EN45555 - 91.9 %

External Classifications and Standards

Object Classification Code	Q
ETIM 7	EC000066 - Power contactor, AC switching
ETIM 8	EC000066 - Power contactor, AC switching
ETIM 9	EC000066 - Power contactor, AC switching
eClass	V11.0 : 27371003
UNSPSC	39121529
