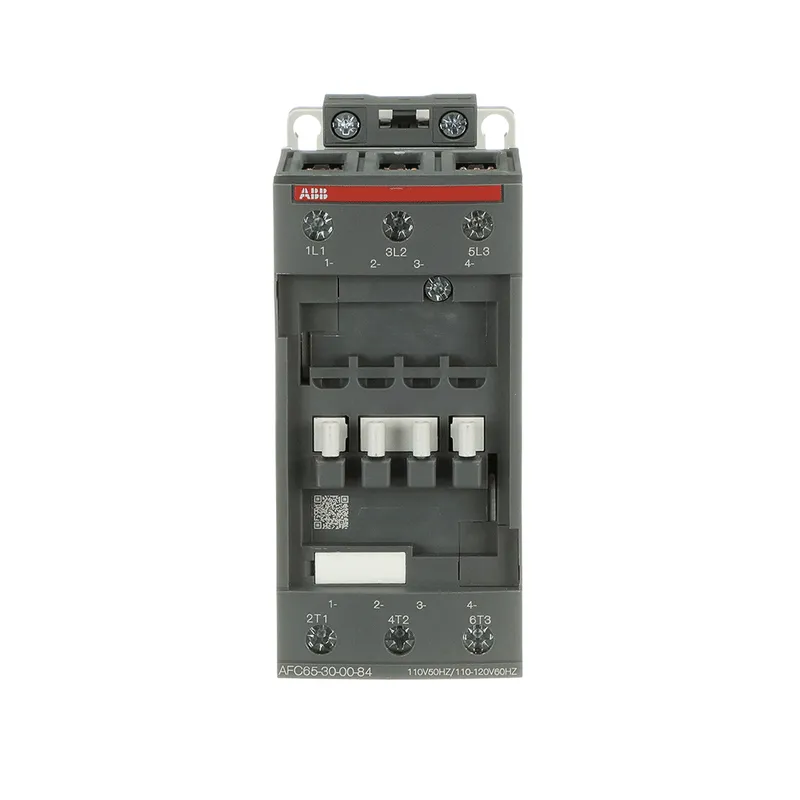

AFC65-30-00-84 110V50Hz 110-120V60Hz Contactor — photo 1 of 4

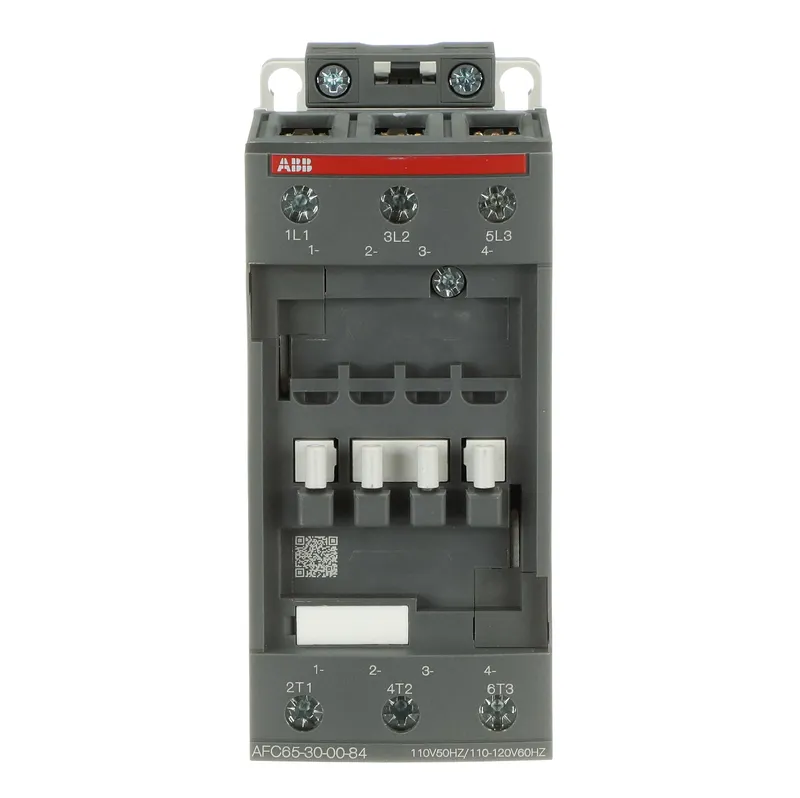

AFC65-30-00-84 110V50Hz 110-120V60Hz Contactor — photo 2 of 4

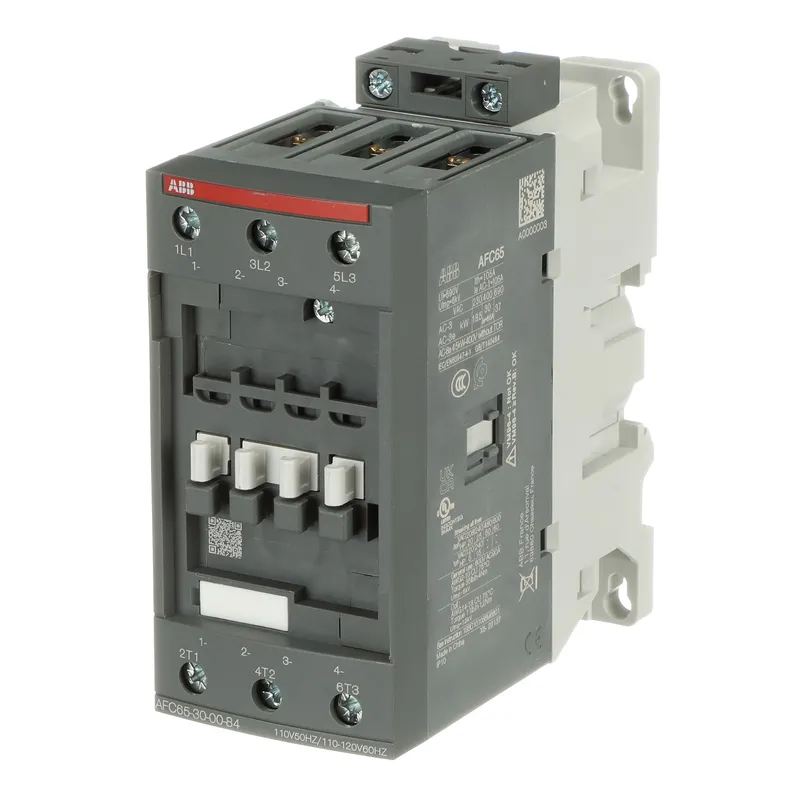

AFC65-30-00-84 110V50Hz 110-120V60Hz Contactor — photo 3 of 4

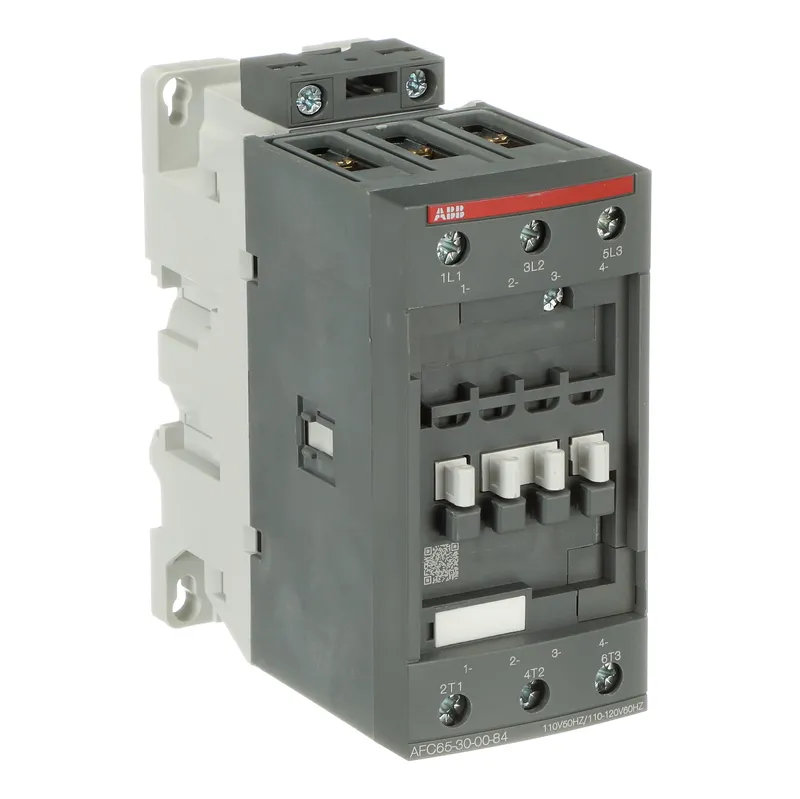

AFC65-30-00-84 110V50Hz 110-120V60Hz Contactor — photo 4 of 4

Available on request

ABB 1SBL381001R8400 – AFC65-30-00-84 110V50Hz 110-120V60Hz Contactor

MPN: 1SBL381001R8400 · Brand: ABB

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	ABB AF Contactors
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.98 kg
UPC / EAN	3471523018976

Shipping & availability

When can 1SBL381001R8400 be shipped?

1SBL381001R8400 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1SBL381001R8400 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1SBL381001R8400 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SBL381001R8400, subject to availability and destination.

The AFC65-30-00-84 is a 3-pole - 690 V IEC or 600 V UL contactor with Screw terminals, mainly controlling power circuits up to 30 kW / 400 V AC (AC-3) or 50 hp / 480 V AC UL and 105 A (AC-1) or 90 A UL general use. Within the AF platform, AFC contactors offer an optimized operating time for AC controlled applications with electromagnetic coil (control voltage : 110 V AC 50 Hz / 110 ... 120 V AC 60 Hz). AFC contactors have a block type design and can be easily extended with add-on auxiliary contact blocks and a wide range of additionnal accessories.

Specifications

General

Order code (ABB product ID)	1SBL381001R8400
Type	AFC65-30-00-84
Lifecycle	Active (current ABB product)

Ordering

Minimum Order Quantity	1 piece
Customs Tariff Number	85364900

Dimensions

Product Net Width	55 mm
Product Net Depth / Length	111 mm
Product Net Height	125.5 mm
Product Net Weight	0.98 kg

Technical

Number of Main Contacts NO	3
Number of Main Contacts NC	0
Number of Auxiliary Contacts NO	0
Number of Auxiliary Contacts NC	0
Number of Poles	3P
Standards	IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 60947-4-1, UL 60335-2-40 LZGH2 A2L
Rated Operational Voltage	Main Circuit 690 V
Conventional Free-air Thermal Current (I<sub>th</sub>)	acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 105 A
Rated Operational Current AC-1 (I<sub>e</sub>)	(690 V) 40 °C 105 A, (690 V) 60 °C 90 A, (690 V) 70 °C 80 A
Rated Operational Current AC-3 (I<sub>e</sub>)	(415 V) 60 °C 65 A, (440 V) 60 °C 65 A, (500 V) 60 °C 55 A, (690 V) 60 °C 39 A, (380 / 400 V) 60 °C 65 A, (220 / 230 / 240 V) 60 °C 65 A
Rated Operational Current AC-3e (I<sub>e</sub>)	(415 V) 60 °C 65 A, (440 V) 60 °C 65 A, (500 V) 60 °C 55 A, (690 V) 60 °C 39 A, (380 / 400 V) 60 °C 65 A, (220 / 230 / 240 V) 60 °C 65 A
Rated Operational Power AC-3 (P<sub>e</sub>)	(415 V) 37 kW, (440 V) 37 kW, (500 V) 37 kW, (690 V) 37 kW, (380 / 400 V) 30 kW, (220 / 230 / 240 V) 18.5 kW
Rated Operational Power AC-3e (P<sub>e</sub>)	(415 V) 37 kW, (440 V) 37 kW, (500 V) 37 kW, (690 V) 37 kW, (380 / 400 V) 30 kW, (220 / 230 / 240 V) 18.5 kW
Rated Operational Power AC-6b (P<sub>e</sub>)	(400 / 415 V) 40 °C, 50 / 60 Hz 43 kvar, (400 / 415 V) 70 °C, 50 / 60 Hz 39 kvar, (400 / 415 V) 55 °C, 50 / 60 Hz 43 kvar, (440 V) 40 °C, 50 / 60 Hz 47 kvar, (440 V) 55 °C, 50 / 60 Hz 47 kvar, (440 V) 70 °C, 50 / 60 Hz 42.7 kvar, (500 / 550 V), 40 °C, 50 / 60 Hz 54 kvar, (500 / 550 V) 55 °C, 50 / 60 Hz 54 kvar, (500 / 550 V) 70 °C, 50 / 60 Hz 48.5 kvar, (690 V) 40 °C, 50 / 60 Hz 74 kvar, (690 V) 55 °C, 50 / 60 Hz 74 kvar, (690 V) 70 °C, 50 / 60 Hz 67 kvar
Rated Short-time Withstand Current Low Voltage (I<sub>cw</sub>)	at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 110 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 250 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 1000 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 350 A
Maximum Breaking Capacity	cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 950 A, cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 600 A
Rated Insulation Voltage (U<sub>i</sub>)	acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 690 V, acc. to UL/CSA 600 V
Rated Impulse Withstand Voltage (U<sub>imp</sub>)	Auxiliary Circuit 6 kV
Maximum Electrical Switching Frequency	(AC-1) 600 cycles per hour, (AC-2 / AC-4) 150 cycles per hour, (AC-3) 1200 cycles per hour
Maximum Mechanical Switching Frequency	3600 cycles per hour
Rated Control Circuit Voltage (U<sub>c</sub>)	50 Hz 110 V, 60 Hz 110 ... 120 V
Coil Consumption	Average Holding Value 50 / 60 Hz 20 V·A, Average Holding Value, from Warm State 6 W, Average Pull-in Value 50 Hz 150 V·A, Average Pull-in Value 60 Hz 151 V·A
Power Loss	at Rated Operating Conditions AC-1 per Pole 7 W, at Rated Operating Conditions AC-3 per Pole 2.7 W
Operate Time	Between Coil De-energization and NC Contact Closing 6 ... 19 ms, Between Coil De-energization and NO Contact Opening 4 ... 14 ms, Between Coil Energization and NC Contact Opening 3 ... 16 ms, Between Coil Energization and NO Contact Closing 7 ... 21 ms
Mounting on DIN Rail	TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Mounting by Screws (not supplied)	2 x M4 or 2 x M6 Screws Placed Diagonally
Connecting Capacity Main Circuit	Flexible with Ferrule 1/2x 4 ... 35 mm², Flexible with Insulated Ferrule 1/2x 4 ... 35 mm², Rigid 1/2x 6 ... 3 5 mm²
Connecting Capacity Control Circuit	Flexible with Ferrule 1/2x 0.75 ... 2.5 mm², Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm², Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm², Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm², Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm², Rigid 1/2x 1 ... 2.5 mm²
Wire Stripping Length	Control Circuit 10 mm, Main Circuit 16 mm
Degree of Protection	acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20, acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20, acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP10
Recommended Screw Driver	Pozidriv PZ
Tightening Torque	Control Circuit 1.2 N·m, Main Circuit 4 N·m
Terminal Type	Screw Terminals
Product Name	Block Contactor

Technical UL/CSA

Maximum Operating Voltage UL/CSA	Main Circuit 600 V
General Use Rating UL/CSA	(600 V AC) 90 A
Horsepower Rating UL/CSA	(120 V AC) Single Phase 5 hp, (200 ... 208 V AC) Three Phase 20 hp, (220 ... 240 V AC) Three Phase 25, (240 V AC) Single Phase 15 hp, (440 ... 480 V AC) Three Phase 50 hp, (550 ... 600 V AC) Three Phase 60 hp
Tightening Torque UL/CSA	Control Circuit 11 in·lb, Main Circuit 35 in·lb
Full Load Amps Motor Use	(120 V AC) Single Phase 56 A, (200 ... 208 V AC) Three Phase 62.1 A, (220 ... 240 V AC) Three Phase 68 A, (240 V AC) Single Phase 68 A, (440 ... 480 V AC) Three Phase 65 A, (550 ... 600 V AC) Three Phase 62 A

Environmental

Ambient Air Temperature	Close to Contactor without Thermal O/L Relay -40 ... 70 °C, Close to Contactor for Storage -60 ... +80 °C
Climatic Withstand	Category B according to IEC 60947-1 Annex Q
Maximum Operating Altitude Permissible	Without Derating 3000 m
Resistance to Shock acc. to IEC 60068-2-27	Closed, Shock Direction: A 25 g, Closed, Shock Direction: B1 25 g, Closed, Shock Direction: B2 15 g, Closed, Shock Direction: C1 25 g, Closed, Shock Direction: C2 25 g, Open, Shock Direction: B1 5 g
Pollution Degree	3

Material Compliance

RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B	Business To Business
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)

External Classifications and Standards

Object Classification Code	Q
ETIM 7	EC000066 - Power contactor, AC switching
ETIM 8	EC000066 - Power contactor, AC switching
ETIM 9	EC000066 - Power contactor, AC switching
eClass	V11.0 : 27371003
UNSPSC	39121529
IDEA Granular Category Code (IGCC)	4758 >> Iec Contactors
