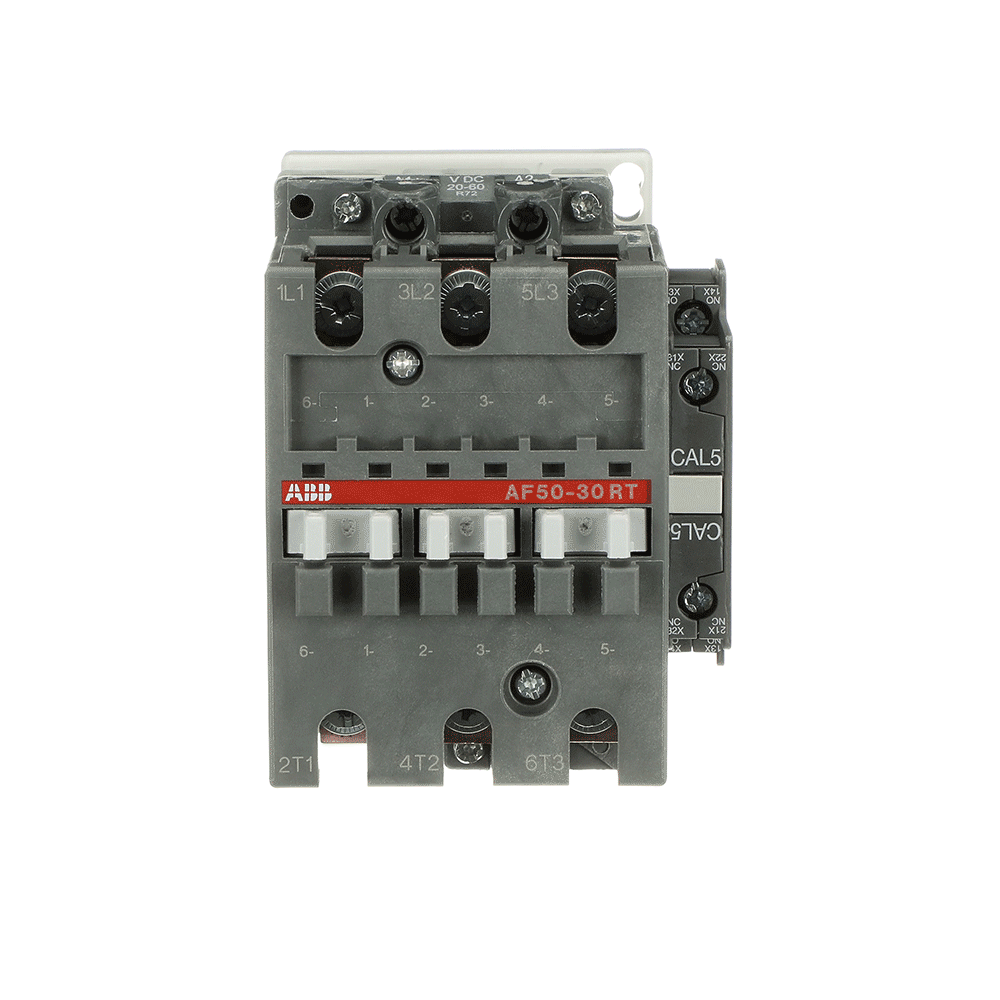

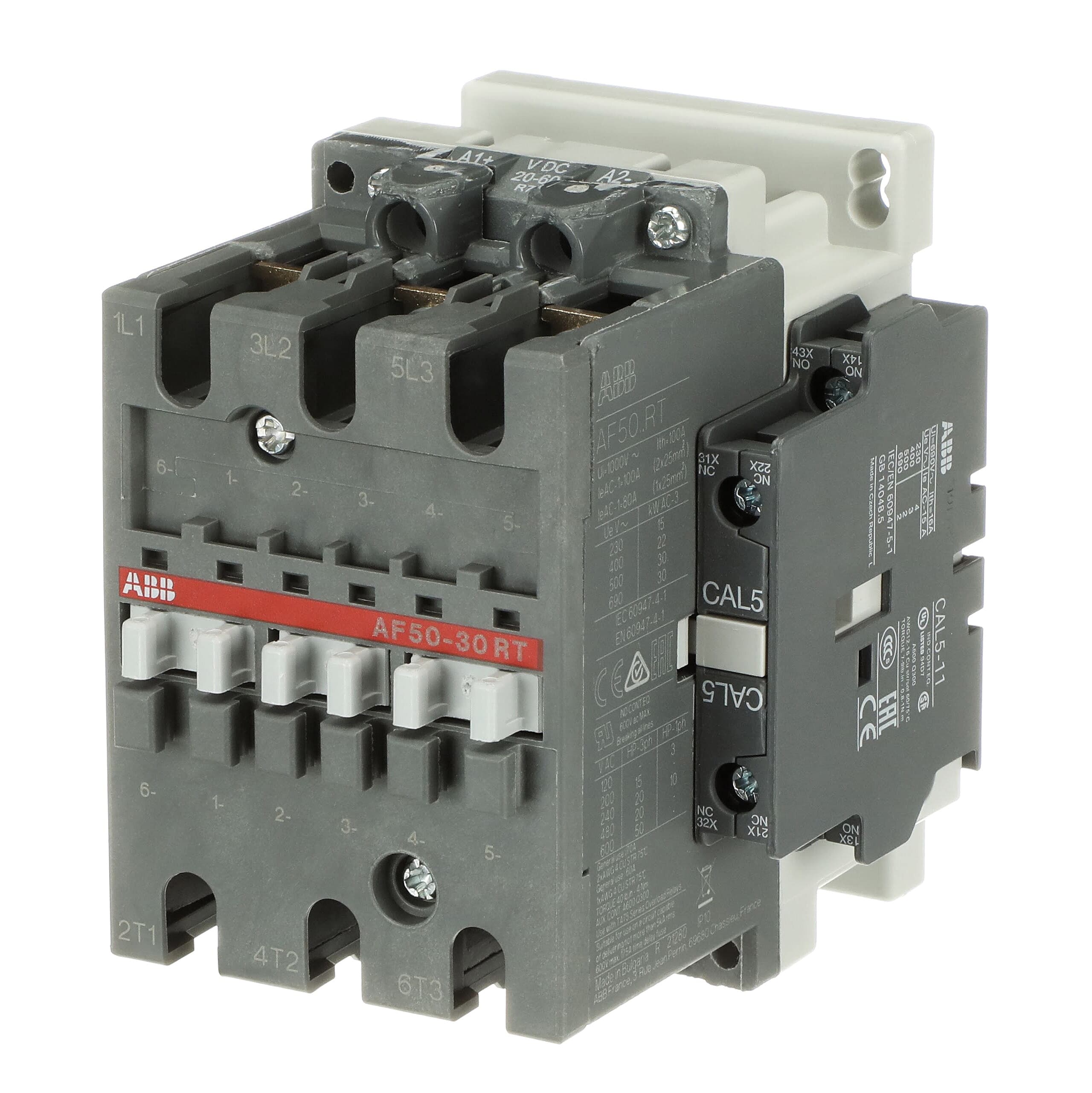

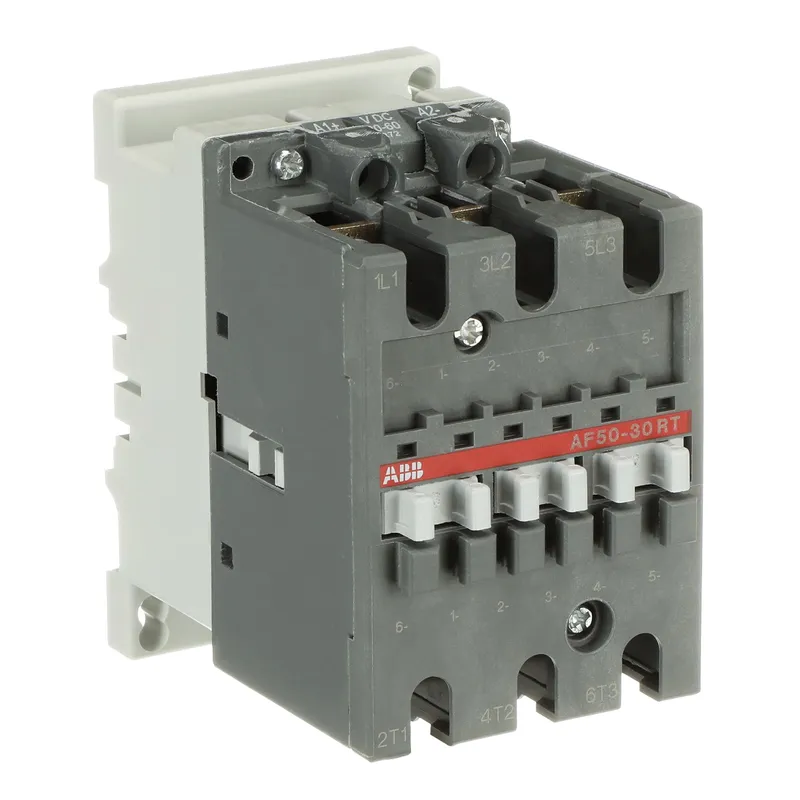

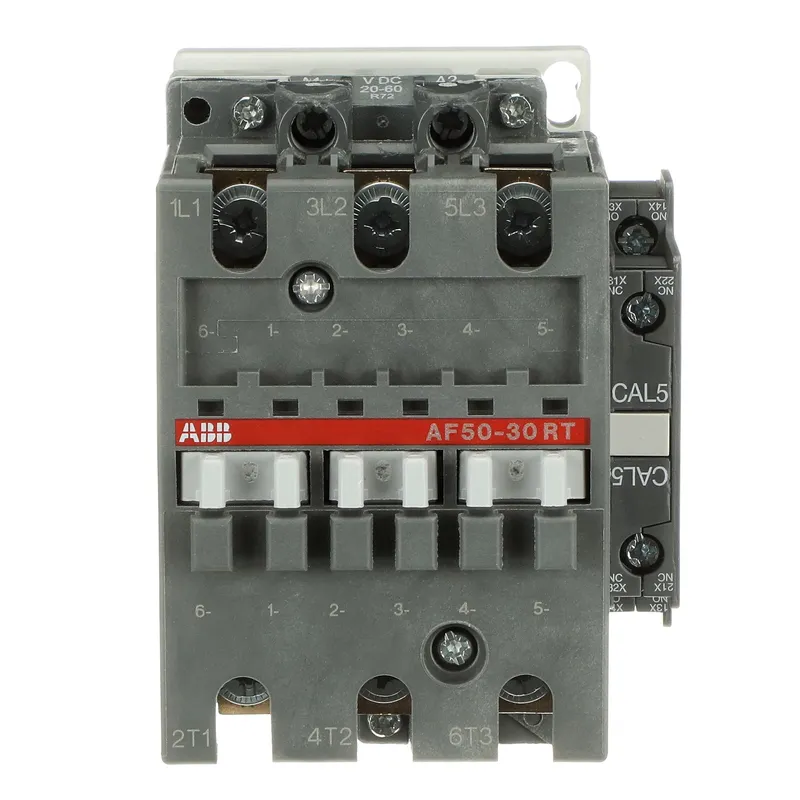

ABB 1SBL357010R7211

AF50-30-11RT-72 20-60V DC Contactor

MPN
1SBL357010R7211
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare ABB parts? We buy surplus →

What is the ABB 1SBL357010R7211?

AF50 contactors are mainly used for controlling 3-phase motors and generally for controlling power circuits up to 690 V AC and 220 V DC. The contactors can also be used for many other applications such as bypass, capacitor switching, lighting, DC power circuits... The AF... contactors are fitted with an electronic coil interface which accepts a wide control voltage range, on AC 50/60 Hz or DC supplies. The same contactor can accept various supply voltages according to the different countries where the electrical equipment will be installed, or some fluctuation in the control voltage due to the local supply or network. The AF... contactors are also fully suitable for operation in AC or DC control circuit liable to voltage interruptions or voltage dip risks. Advantages: - Wide voltage range, e.g. 100 ... 250 V AC and DC - Can manage large voltage variations - Reduced power consumption - Very distinct closing and opening - Noise free - Can withstand voltage interruptions or voltage dips in the control supply (≤ 20 ms). The AF... series 1-stack 3-pole contactors are of the block type design. - Main poles and auxiliary contact blocks: 3 main poles, front and side-mounted add-on auxiliary contact blocks - Control circuit: AC or DC operated - Accessories: a wide range of accessories is available.

Specifications

General

Order code (ABB product ID)1SBL357010R7211
TypeAF50-30-11RT-72
LifecycleActive (current ABB product)

Ordering

Minimum Order Quantity1 piece
Customs Tariff Number8536490065

Dimensions

Product Net Width70 mm
Product Net Depth / Length108 mm
Product Net Height110 mm
Product Net Weight1.23 kg

Technical

Number of Main Contacts NO3
Number of Main Contacts NC0
Number of Auxiliary Contacts NO1
Number of Auxiliary Contacts NC1
Number of Poles3P
StandardsIEC/EN 60947-1, IEC/EN 60947-4-1, UL 508, CSA C22.2 No. 14, IEC 60077-1 (applicable parts), IEC 60077-2 (applicable parts), EN 50155 (applicable parts), TR CU 001/2011 (on request), IEC 61373, For compliance confirmation on applicable parts based on your application and combination, please consult your ABB sales representatives.
Rated Operational VoltageAuxiliary Circuit 690 V, Main Circuit 690 V
Rated Operational Current AC-1 (I<sub>e</sub>)(690 V) 40 °C 100 A, (690 V) 55 °C 85 A, (690 V) 70 °C 70 A
Rated Operational Current AC-3 (I<sub>e</sub>)(415 V) 55 °C 50 A, (440 V) 55 °C 45 A, (500 V) 55 °C 45 A, (690 V) 55 °C 35 A, (380 / 400 V) 55 °C 50 A, (220 / 230 / 240 V) 55 °C 53 A
Rated Operational Current AC-15 (I<sub>e</sub>)(24 / 127 V) 6 A, (220 / 240 V) 4 A
Rated Operational Current DC-1 (I<sub>e</sub>)(110 V) 2 Poles in Series, 40 °C 100 A, (110 V) 2 Poles in Series, 55 °C 85 A, (110 V) 2 Poles in Series, 70 °C 70 A, (110 V) 3 Poles in Series, 40 °C 100 A, (110 V) 3 Poles in Series, 55 °C 85 A, (110 V) 3 Poles in Series, 70 °C 70 A, (220 V) 3 Poles in Series, 40 °C 100 A, (220 V) 3 Poles in Series, 55 °C 85 A, (220 V) 3 Poles in Series, 70 °C 70 A, (72 V) 1-Pole, 40 °C 100 A, (72 V) 1-Pole, 55 °C 85 A, (72 V) 1-Pole, 70 °C 70 A, (72 V) 2 Poles in Series, 40 °C 100 A, (72 V) 2 Poles in Series, 55 °C 85 A, (72 V) 2 Poles in Series, 70 °C 70 A, (72 V) 3 Poles in Series, 40 °C 100 A, (72 V) 3 Poles in Series, 55 °C 85 A, (72 V) 3 Poles in Series, 70 °C 70 A
Rated Operational Current DC-3 (I<sub>e</sub>)(110 V) 2 Poles in Series, 40 °C 100 A, (110 V) 2 Poles in Series, 55 °C 85 A, (110 V) 2 Poles in Series, 70 °C 70 A, (110 V) 3 Poles in Series, 40 °C 100 A, (110 V) 3 Poles in Series, 55 °C 85 A, (110 V) 3 Poles in Series, 70 °C 70 A, (220 V) 3 Poles in Series, 40 °C 100 A, (220 V) 3 Poles in Series, 55 °C 85 A, (220 V) 3 Poles in Series, 70 °C 70 A, (72 V) 1-Pole, 40 °C 100 A, (72 V) 1-Pole, 55 °C 85 A, (72 V) 1-Pole, 70 °C 70 A, (72 V) 2 Poles in Series, 40 °C 100 A, (72 V) 2 Poles in Series, 55 °C 85 A, (72 V) 2 Poles in Series, 70 °C 70 A, (72 V) 3 Poles in Series, 40 °C 100 A, (72 V) 3 Poles in Series, 55 °C 85 A, (72 V) 3 Poles in Series, 70 °C 70 A
Rated Operational Current DC-5 (I<sub>e</sub>)(110 V) 2 Poles in Series, 40 °C 80 A, (110 V) 2 Poles in Series, 55 °C 80 A, (110 V) 2 Poles in Series, 70 °C 70 A, (110 V) 3 Poles in Series, 40 °C 100 A, (110 V) 3 Poles in Series, 55 °C 85 A, (110 V) 3 Poles in Series, 70 °C 70 A, (220 V) 3 Poles in Series, 40 °C 50 A, (220 V) 3 Poles in Series, 55 °C 50 A, (220 V) 3 Poles in Series, 70 °C 50 A, (72 V) 1-Pole, 40 °C 50 A, (72 V) 1-Pole, 55 °C 50 A, (72 V) 1-Pole, 70 °C 50 A, (72 V) 2 Poles in Series, 40 °C 100 A, (72 V) 2 Poles in Series, 55 °C 85 A, (72 V) 2 Poles in Series, 70 °C 70 A, (72 V) 3 Poles in Series, 40 °C 100 A, (72 V) 3 Poles in Series, 55 °C 85 A, (72 V) 3 Poles in Series, 70 °C 70 A
Rated Operational Current DC-13 (I<sub>e</sub>)(24 V) 6 A / 144 W, (48 V) 2.8 A / 134 W, (72 V) 1 A / 72 W, (110 V) 0.55 A / 60 W, (125 V) 0.55 A / 69 W, (220 V) 0.30 A / 66 W, (250 V) 0.3 / 75 W
Rated Operational Power AC-3 (P<sub>e</sub>)(415 V) 25 kW, (440 V) 25 kW, (500 V) 30 kW, (690 V) 30 kW, (380 / 400 V) 22 kW, (220 / 230 / 240 V) 15 kW
Rated Short-time Withstand Current Low Voltage (I<sub>cw</sub>)at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 650 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 110 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 250 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 1000 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 370 A, for 0.1 s 140 A, for 1 s 100 A
Maximum Breaking Capacitycos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 1300 A, cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 630 A
Rated Insulation Voltage (U<sub>i</sub>)acc. to IEC 60947-4-1 1000 V, acc. to IEC 60947-5-1 690 V, acc. to UL/CSA 600 V
Rated Impulse Withstand Voltage (U<sub>imp</sub>)8 kV
Rated Control Circuit Voltage (U<sub>c</sub>)DC Operation 20 ... 60 V
Power Lossat 6 A per Pole 0.1 W, at Rated Operating Conditions AC-1 per Pole 5 W, at Rated Operating Conditions AC-3 per Pole 1.3 W
Mounting on DIN RailTH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH75-25 (75 x 25 mm Mounting Rail) acc. to IEC 60715
Mounting by Screws (not supplied) 2 x M6 Screws Placed Diagonally
Degree of Protectionacc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20, acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20, acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP10
Terminal TypeRing-Tongue Terminals
Product NameBlock Contactor

Technical UL/CSA

NEMA Size2
Horsepower Rating NEMA(115 V AC) Single Phase 3 Hp, (200 V AC) Three Phase 10 Hp, (230 V AC) Single Phase 7-1/2 Hp, (230 V AC) Three Phase 15 Hp, (460 V AC) Three Phase 25 Hp, (575 V AC) Three Phase 25 Hp
Maximum Operating Voltage UL/CSAMain Circuit 600 V
General Use Rating UL/CSA(600 V AC) 80 A
Horsepower Rating UL/CSA(120 V AC) Single Phase 3 hp, (200 ... 208 V AC) Three Phase 15 Hp, (220 ... 240 V AC) Three Phase 20 Hp, (240 V AC) Single Phase 7-1/2 hp, (440 ... 480 V AC) Three Phase 40 Hp, (550 ... 600 V AC) Three Phase 50 Hp

Environmental

Ambient Air TemperatureClose to Contactor Fitted with Thermal O/L Relay -25 ... 55 °C, Close to Contactor without Thermal O/L Relay -40 ... 70 °C, Close to Contactor for Storage -60 ... +80 °C
Maximum Operating Altitude PermissibleWithout Derating 3000 m
Pollution Degree3

Material Compliance

RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2BBusiness To Business
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)

External Classifications and Standards

Object Classification CodeQ
ETIM 7EC000066 - Power contactor, AC switching
ETIM 8EC000066 - Power contactor, AC switching
ETIM 9EC000066 - Power contactor, AC switching
eClassV11.0 : 27371003
UNSPSC39121529
