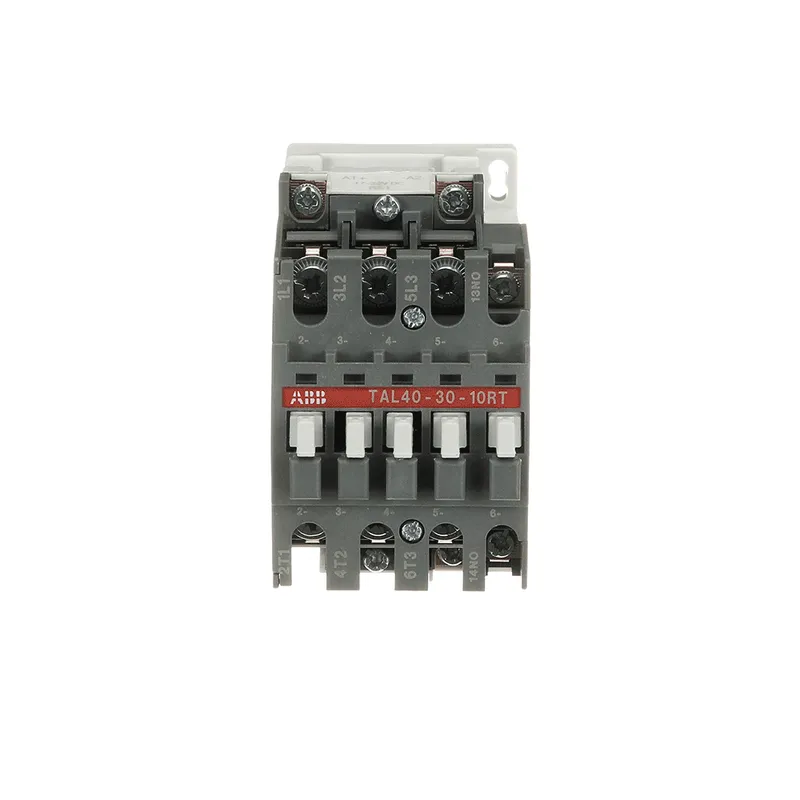

TAL40-30-10RT 17-32V DC Contactor — photo 1 of 4

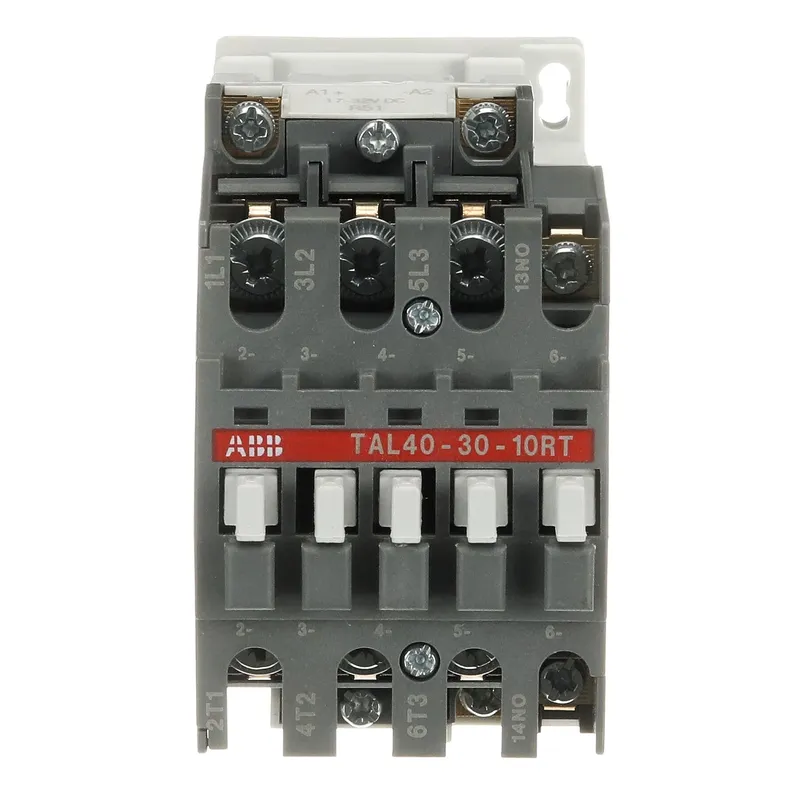

TAL40-30-10RT 17-32V DC Contactor — photo 2 of 4

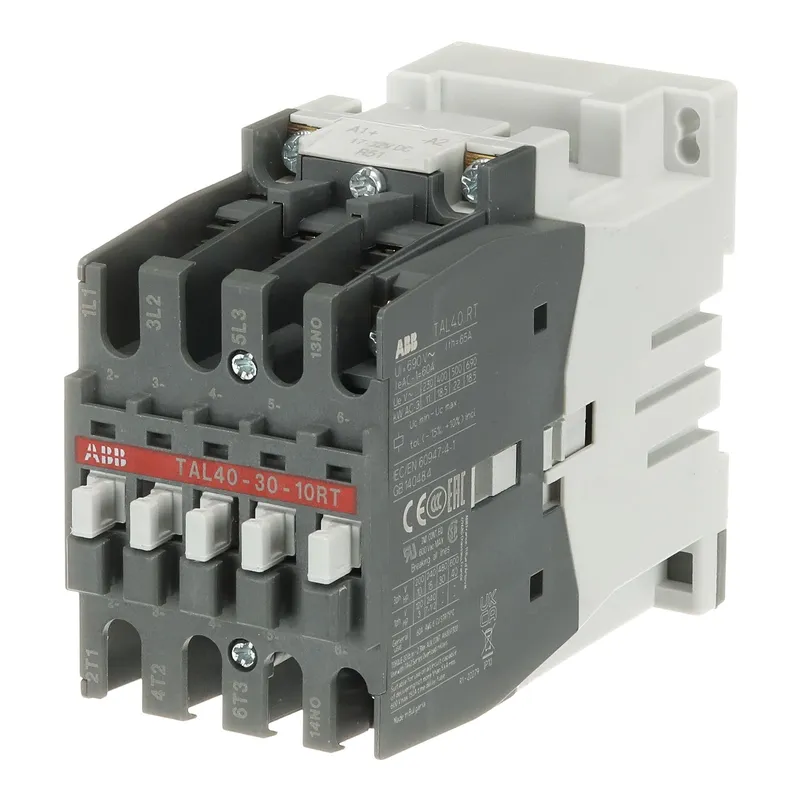

TAL40-30-10RT 17-32V DC Contactor — photo 3 of 4

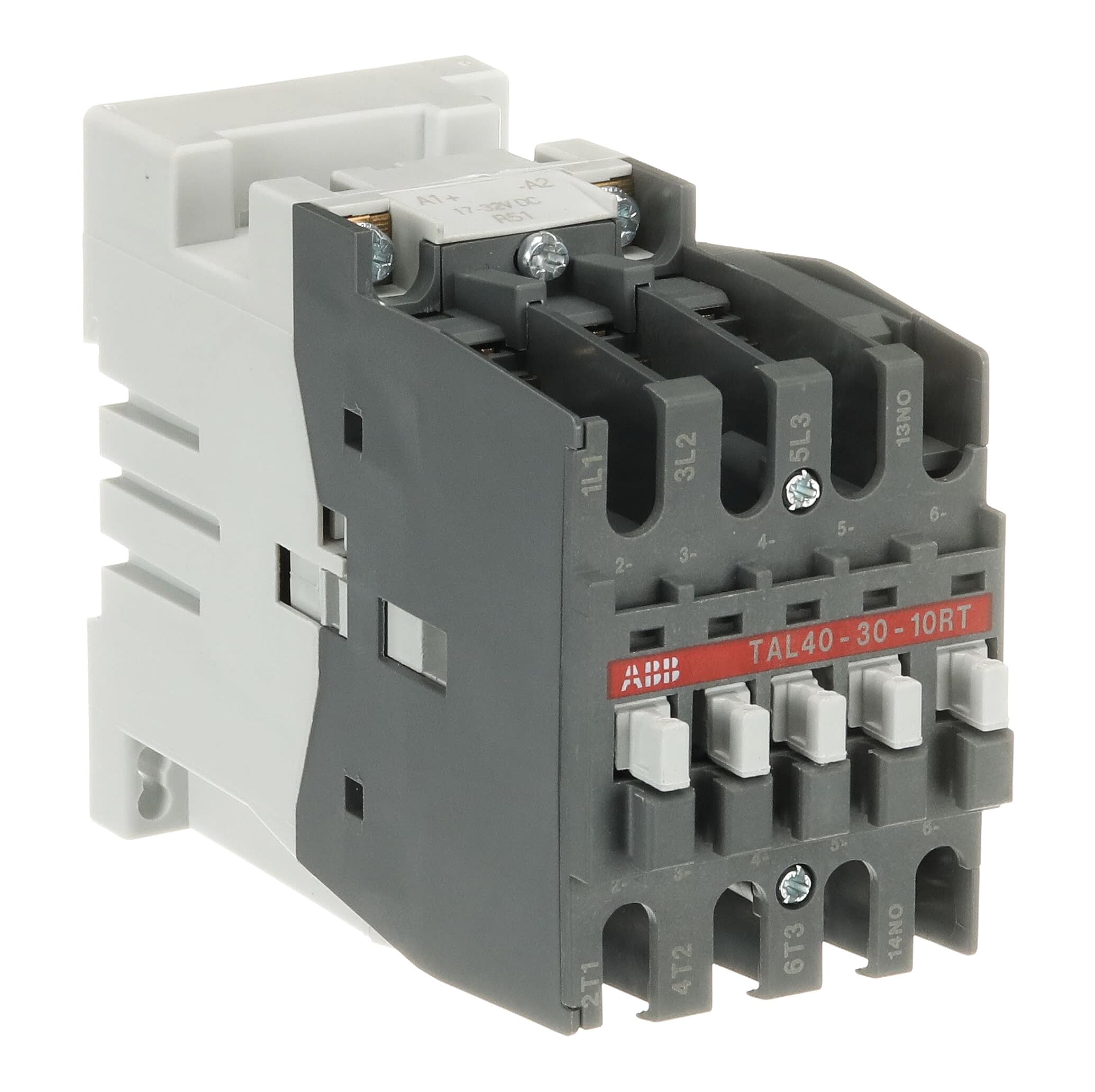

TAL40-30-10RT 17-32V DC Contactor — photo 4 of 4

Available on request

ABB 1SBL323060R5110 – TAL40-30-10RT 17-32V DC Contactor

MPN: 1SBL323060R5110 · Brand: ABB

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	ABB TAL and TAE Contactors
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.85 kg
UPC / EAN	3471522363718

Shipping & availability

When can 1SBL323060R5110 be shipped?

1SBL323060R5110 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1SBL323060R5110 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1SBL323060R5110 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SBL323060R5110, subject to availability and destination.

The TAL40-30-10RT 17-32V DC is a contactor mainly used for controlling 3-phase motors and generally for controlling power circuits up to 690 V AC or 220 V DC. The contactors can also be used for many other applications such as isolation, capacitor switching, lighting. The TAL... series 1-stack 3-pole contactors are of the block type design. - Main poles and auxiliary contact blocks: 3 main poles, 1 built-in auxiliary contact, front and side-mounted add-on auxiliary contact blocks - Control circuit: DC operated with solid core magnet circuit. The polarity on the coil terminals (A1+ and A2-) must be respected - Accessories: a wide range of accessories is available. TAL... contactors are fitted with low consumption DC coils and offer a large coil voltage range.

Specifications

General

Order code (ABB product ID)	1SBL323060R5110
Type	TAL40-30-10RT 17-32V DC
Lifecycle	Active (current ABB product)

Ordering

Minimum Order Quantity	1 piece
Customs Tariff Number	85364900

Dimensions

Product Net Width	54 mm
Product Net Depth / Length	125.3 mm
Product Net Height	90 mm
Product Net Weight	0.85 kg

Technical

Number of Main Contacts NO	3
Number of Main Contacts NC	0
Number of Auxiliary Contacts NO	1
Number of Auxiliary Contacts NC	0
Number of Poles	3P
Rated Operational Voltage	Auxiliary Circuit 690 V, Main Circuit 690 V
Rated Frequency (f)	Auxiliary Circuit 50 / 60 Hz, Main Circuit 50 / 60 Hz
Rated Operational Current AC-1 (I<sub>e</sub>)	(690 V) 40 °C 60 A, (690 V) 55 °C 55 A, (690 V) 70 °C 42 A
Rated Operational Current AC-3 (I<sub>e</sub>)	(415 V) 55 °C 37 A, (440 V) 55 °C 37 A, (500 V) 55 °C 33 A, (690 V) 55 °C 21 A, (380 / 400 V) 55 °C 37 A, (220 / 230 / 240 V) 55 °C 40 A
Rated Operational Current AC-15 (I<sub>e</sub>)	(500 V) 2 A, (690 V) 2 A, (24 / 127 V) 6 A, (220 / 240 V) 4 A, (380 / 400 V) 3 A
Rated Operational Current DC-13 (I<sub>e</sub>)	(24 V) 6 A / 144 W, (48 V) 2.8 A / 134 W, (72 V) 2 / 144 W, (110 V) 0.55 A / 60 W, (125 V) 1.1 / 138 W, (220 V) 0.55 A / 121 W, (250 V) 0.55 / 138 W
Rated Operational Power AC-3 (P<sub>e</sub>)	(415 V) 18.5 kW, (440 V) 22 kW, (500 V) 22 kW, (690 V) 18.5 kW, (380 / 400 V) 18.5 kW, (220 / 230 / 240 V) 11 kW
Rated Short-time Withstand Current Low Voltage (I<sub>cw</sub>)	at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 400 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 65 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 150 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 600 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 225 A, for 0.1 s 140 A, for 1 s 100 A
Maximum Breaking Capacity	cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 470 A, cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 175 A
Rated Insulation Voltage (U<sub>i</sub>)	acc. to IEC 60947-4-1 690 V, acc. to IEC 60947-5-1 690 V, acc. to UL/CSA 600 V
Rated Impulse Withstand Voltage (U<sub>imp</sub>)	6 kV
Rated Control Circuit Voltage (U<sub>c</sub>)	DC Operation 17 ... 32 V
Power Loss	at 6 A per Pole 0.1 W, at Rated Operating Conditions AC-1 per Pole 3 W, at Rated Operating Conditions AC-3 per Pole 1.3 W
Mounting on DIN Rail	TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Mounting by Screws (not supplied)	2 x M4 Screws Placed Diagonally
Degree of Protection	acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP10, acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP10, acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP10
Terminal Type	Ring-Tongue Terminals
Product Name	Block Contactor

Technical UL/CSA

General Use Rating UL/CSA	(600 V AC) 60 A
Horsepower Rating UL/CSA	(200 ... 208 V AC) Three Phase 10 hp, (220 ... 240 V AC) Three Phase 15, (440 ... 480 V AC) Three Phase 30 hp, (550 ... 600 V AC) Three Phase 40 hp

Environmental

Ambient Air Temperature	Close to Contactor without Thermal O/L Relay -40 ... 55 °C, Close to Contactor without Thermal O/L Relay (Ucmin-Ucmax) according to IEC 60077 -40 ... +70 °C, Close to Contactor for Storage -60 ... +80 °C
Maximum Operating Altitude Permissible	Without Derating 3000 m
Pollution Degree	3

Material Compliance

RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B	Business To Business
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)

External Classifications and Standards

Object Classification Code	Q
ETIM 7	EC000066 - Power contactor, AC switching
ETIM 8	EC000066 - Power contactor, AC switching
ETIM 9	EC000066 - Power contactor, AC switching
eClass	V11.0 : 27371003
UNSPSC	39121529
IDEA Granular Category Code (IGCC)	4756 >> Capacitor magnet contactor
