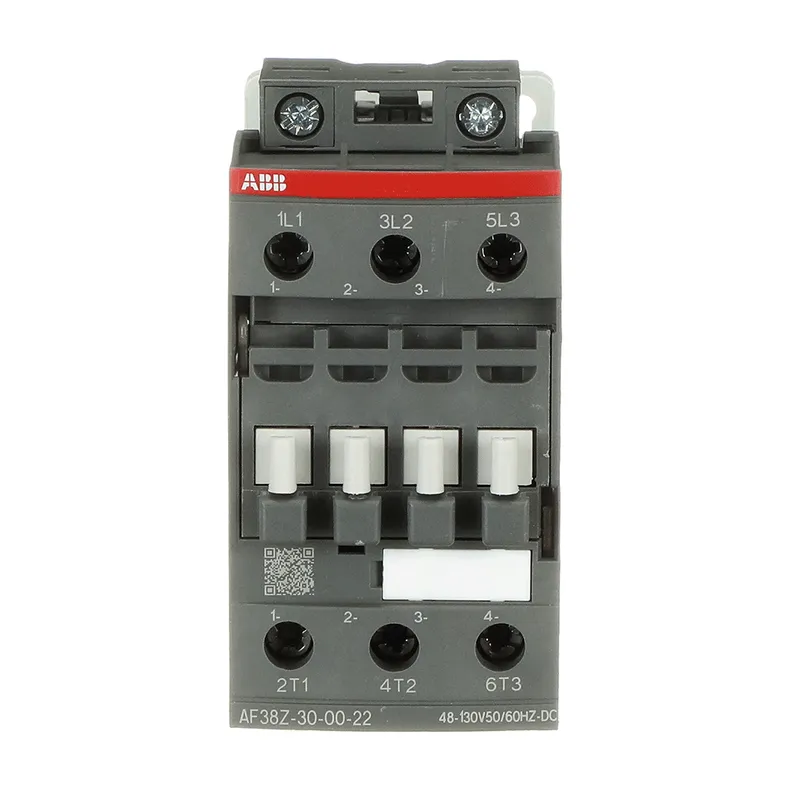

AF38Z-30-00-22 48-130V50/60HZ-DC Contactor — photo 1 of 4

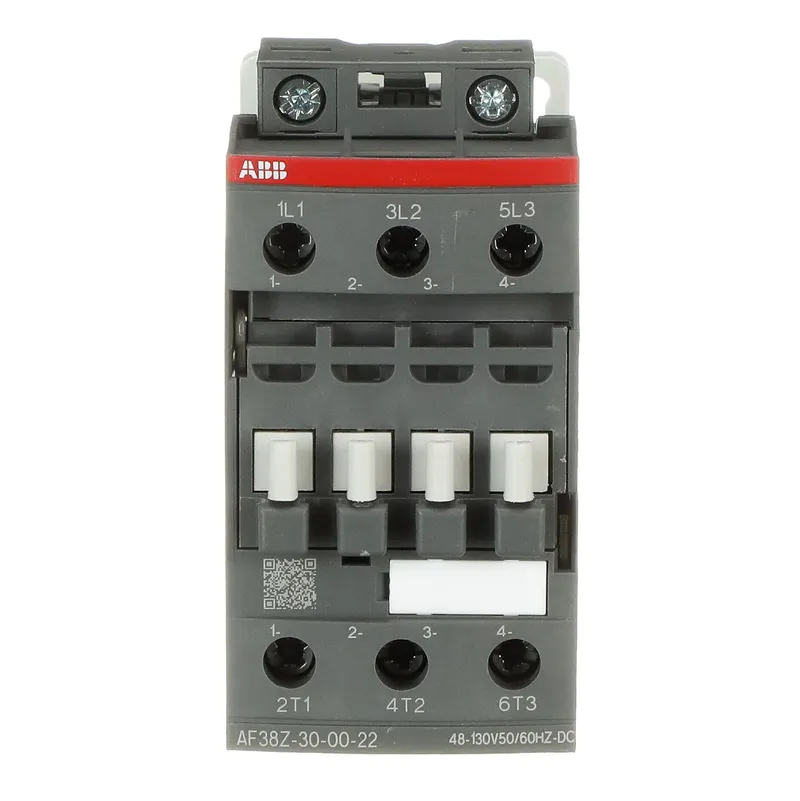

AF38Z-30-00-22 48-130V50/60HZ-DC Contactor — photo 2 of 4

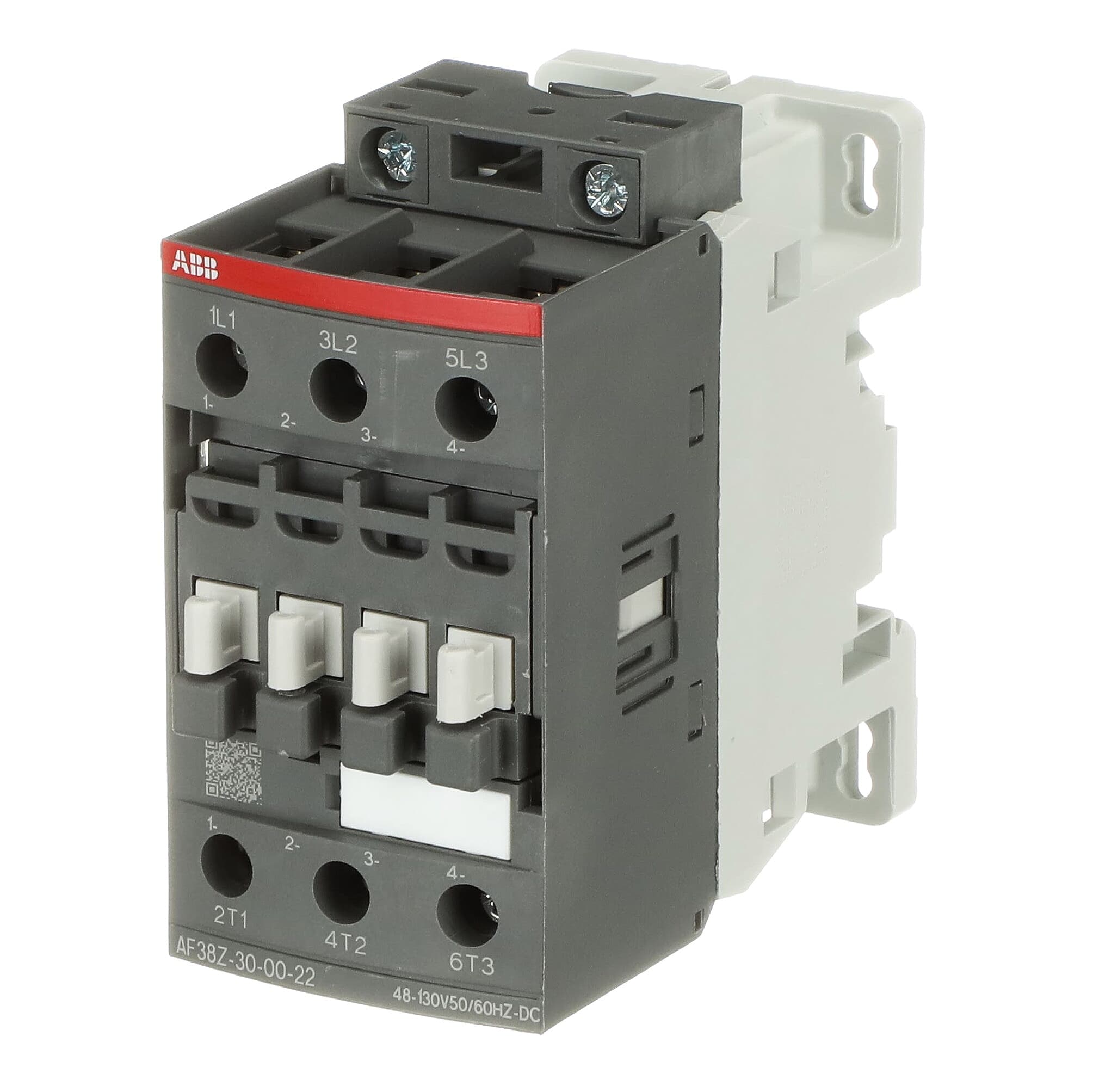

AF38Z-30-00-22 48-130V50/60HZ-DC Contactor — photo 3 of 4

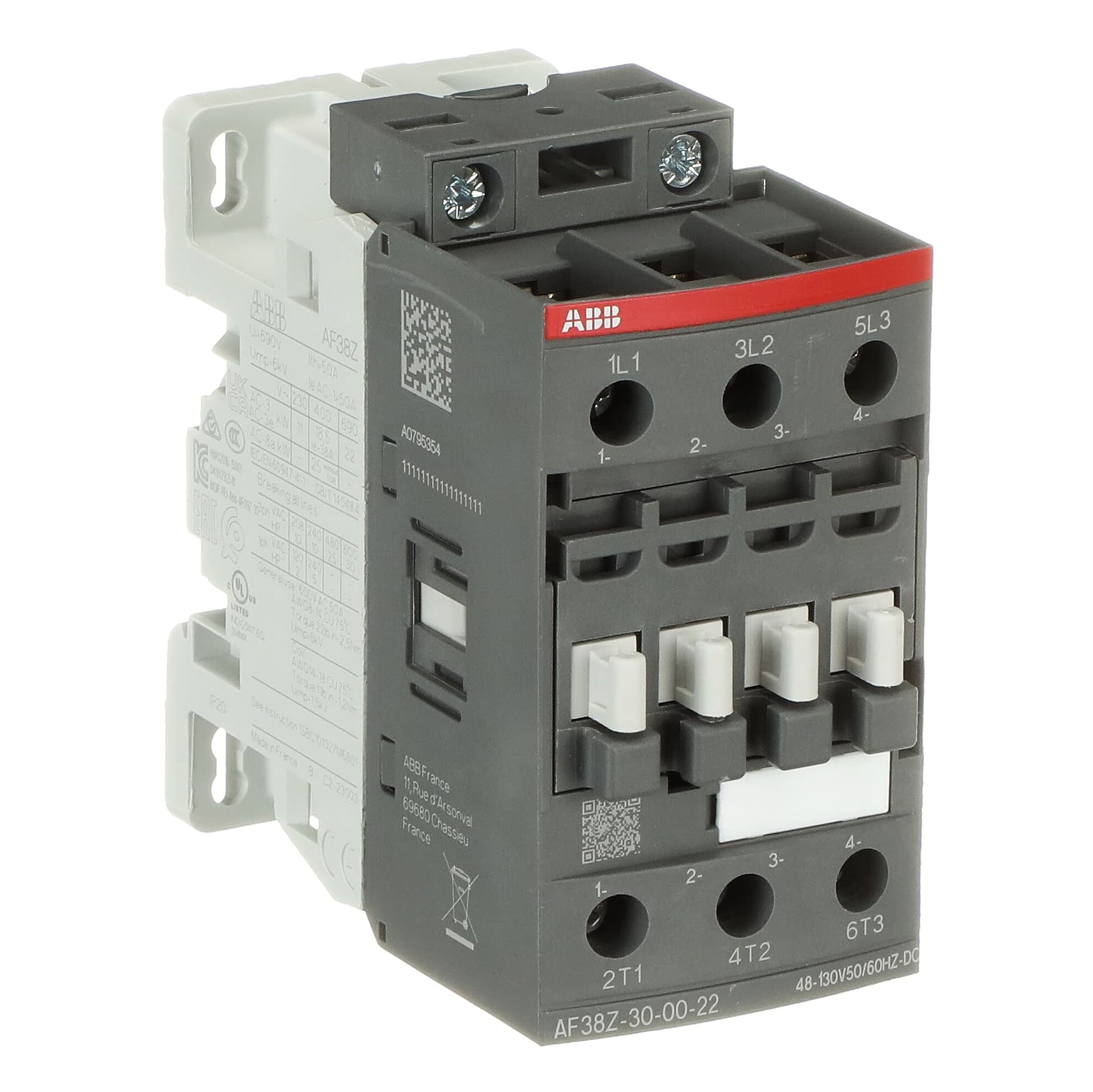

AF38Z-30-00-22 48-130V50/60HZ-DC Contactor — photo 4 of 4

Available on request

ABB 1SBL296001R2200 – AF38Z-30-00-22 48-130V50/60HZ-DC Contactor

MPN: 1SBL296001R2200 · Brand: ABB

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	ABB AF Contactors
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.35 kg
UPC / EAN	3471523114722

Shipping & availability

When can 1SBL296001R2200 be shipped?

1SBL296001R2200 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1SBL296001R2200 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1SBL296001R2200 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SBL296001R2200, subject to availability and destination.

The AF38Z-30-00-22 is a 3 pole - 690 V IEC or 600 UL contactor with screw terminals, controlling motors up to 18.5 kW / 400 V AC (AC-3) or 25 hp / 480 V UL and switching power circuits up to 50 A (AC-1) or 50 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (48-130 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.

Specifications

General

Order code (ABB product ID)	1SBL296001R2200
Type	AF38Z-30-00-22
Lifecycle	Active (current ABB product)

Ordering

Minimum Order Quantity	1 piece
Customs Tariff Number	85364900

Dimensions

Product Net Width	45 mm
Product Net Depth / Length	86 mm
Product Net Height	86 mm
Product Net Weight	0.35 kg

Technical

Number of Main Contacts NO	3
Number of Main Contacts NC	0
Number of Auxiliary Contacts NO	0
Number of Auxiliary Contacts NC	0
Number of Poles	3P
Standards	IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60335-2-40 LZGH2 A2L, UL 60947-4-1, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CSA C22.2 No. 60947-4-1
Rated Operational Voltage	Main Circuit 690 V
Rated Frequency (f)	Control Circuit 50 / 60 Hz, Main Circuit 50 / 60 Hz
Conventional Free-air Thermal Current (I<sub>th</sub>)	acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 50 A
Rated Operational Current AC-1 (I<sub>e</sub>)	(690 V) 40 °C 50 A, (690 V) 60 °C 42 A, (690 V) 70 °C 37 A
Rated Operational Current AC-3 (I<sub>e</sub>)	(415 V) 60 °C 38 A, (440 V) 60 °C 38 A, (500 V) 60 °C 33 A, (690 V) 60 °C 24 A, (380 / 400 V) 60 °C 38 A, (220 / 230 / 240 V) 60 °C 40 A
Rated Operational Current AC-3e (I<sub>e</sub>)	(415 V) 60 °C 38 A, (440 V) 60 °C 38 A, (500 V) 60 °C 33 A, (690 V) 60 °C 24 A, (380 / 400 V) 60 °C 38 A, (220 / 230 / 240 V) 60 °C 40 A
Rated Operational Current DC-1 (I<sub>e</sub>)	(110 V) 2 Poles in Series, 40 °C 50 A, (110 V) 2 Poles in Series, 60 °C 42 A, (110 V) 2 Poles in Series, 70 °C 37 A, (110 V) 3 Poles in Series, 40 °C 50 A, (110 V) 3 Poles in Series, 60 °C 42 A, (110 V) 3 Poles in Series, 70 °C 37 A, (220 V) 3 Poles in Series, 40 °C 50 A, (220 V) 3 Poles in Series, 60 °C 42 A, (220 V) 3 Poles in Series, 70 °C 37 A, (72 V) 1-Pole, 40 °C 50 A, (72 V) 1-Pole, 60 °C 42 A, (72 V) 1-Pole, 70 °C 37 A, (72 V) 2 Poles in Series, 40 °C 50 A, (72 V) 2 Poles in Series, 60 °C 42 A, (72 V) 2 Poles in Series, 70 °C 37 A, (72 V) 3 Poles in Series, 40 °C 50 A, (72 V) 3 Poles in Series, 60 °C 42 A, (72 V) 3 Poles in Series, 70 °C 37 A
Rated Operational Current DC-3 (I<sub>e</sub>)	(110 V) 2 Poles in Series, 40 °C 50 A, (110 V) 2 Poles in Series, 60 °C 42 A, (110 V) 2 Poles in Series, 70 °C 37 A, (110 V) 3 Poles in Series, 40 °C 50 A, (110 V) 3 Poles in Series, 60 °C 42 A, (110 V) 3 Poles in Series, 70 °C 37 A, (220 V) 3 Poles in Series, 40 °C 50 A, (220 V) 3 Poles in Series, 60 °C 42 A, (220 V) 3 Poles in Series, 70 °C 37 A, (72 V) 1-Pole, 40 °C 50 A, (72 V) 1-Pole, 60 °C 42 A, (72 V) 1-Pole, 70 °C 37 A, (72 V) 2 Poles in Series, 40 °C 50 A, (72 V) 2 Poles in Series, 60 °C 42 A, (72 V) 2 Poles in Series, 70 °C 37 A, (72 V) 3 Poles in Series, 40 °C 50 A, (72 V) 3 Poles in Series, 60 °C 42 A, (72 V) 3 Poles in Series, 70 °C 37 A
Rated Operational Current DC-5 (I<sub>e</sub>)	(110 V) 2 Poles in Series, 40 °C 50 A, (110 V) 2 Poles in Series, 60 °C 42 A, (110 V) 2 Poles in Series, 70 °C 37 A, (110 V) 3 Poles in Series, 40 °C 50 A, (110 V) 3 Poles in Series, 60 °C 42 A, (110 V) 3 Poles in Series, 70 °C 37 A, (220 V) 3 Poles in Series, 40 °C 25 A, (220 V) 3 Poles in Series, 60 °C 25 A, (220 V) 3 Poles in Series, 70 °C 25 A, (72 V) 1-Pole, 40 °C 25 A, (72 V) 1-Pole, 60 °C 25 A, (72 V) 1-Pole, 70 °C 25 A, (72 V) 2 Poles in Series, 40 °C 50 A, (72 V) 2 Poles in Series, 60 °C 42 A, (72 V) 2 Poles in Series, 70 °C 37 A, (72 V) 3 Poles in Series, 40 °C 50 A, (72 V) 3 Poles in Series, 60 °C 42 A, (72 V) 3 Poles in Series, 70 °C 37 A
Rated Operational Power AC-3 (P<sub>e</sub>)	(400 V) 18.5 kW, (415 V) 18.5 kW, (440 V) 22 kW, (500 V) 22 kW, (690 V) 22 kW, (380 / 400 V) 18.5 kW, (220 / 230 / 240 V) 11 kW
Rated Operational Power AC-3e (P<sub>e</sub>)	(415 V) 18.5 kW, (440 V) 22 kW, (500 V) 22 kW, (690 V) 22 kW, (380 / 400 V) 18.5 kW, (220 / 230 / 240 V) 11 kW
Rated Short-time Withstand Current Low Voltage (I<sub>cw</sub>)	at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 350 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 50 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 150 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 700 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 225 A
Maximum Breaking Capacity	cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 500 A, cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 200 A
Rated Insulation Voltage (U<sub>i</sub>)	acc. to IEC 60947-4-1 690 V, acc. to UL/CSA 600 V
Rated Impulse Withstand Voltage (U<sub>imp</sub>)	6 kV
Maximum Electrical Switching Frequency	(AC-1) 600 cycles per hour, (AC-2 / AC-4) 150 cycles per hour, (AC-3) 1200 cycles per hour
Maximum Mechanical Switching Frequency	3600 cycles per hour
Rated Control Circuit Voltage (U<sub>c</sub>)	50 Hz 48 ... 130 V, 60 Hz 48 ... 130 V, DC Operation 48 ... 130 V
Power Loss	at Rated Operating Conditions AC-1 per Pole 2.4 W, at Rated Operating Conditions AC-3 per Pole 1.3 W
Operate Time	Between Coil De-energization and NC Contact Closing 13 ... 98 ms, Between Coil De-energization and NO Contact Opening 11 ... 95 ms, Between Coil Energization and NC Contact Opening 38 ... 90 ms, Between Coil Energization and NO Contact Closing 40 ... 95 ms
Mounting on DIN Rail	TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Mounting by Screws (not supplied)	2 x M4 Screws Placed Diagonally
Connecting Capacity Main Circuit	Flexible with Ferrule 1/2x 1.5 ... 10 mm², Flexible with Insulated Ferrule 1x 1.5 ... 10 mm², Flexible with Insulated Ferrule 2x 1.5 ... 4 mm², Rigid Solid 1/2x 2.5 ... 4 mm², Rigid Stranded 1/2x 2.5 ... 10 mm²
Connecting Capacity Control Circuit	Flexible with Ferrule 1/2x 0.75 ... 2.5 mm², Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm², Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm², Rigid Solid 1/2x 1 ... 2.5 mm², Rigid Stranded 1/2x 1 ... 2.5 mm²
Wire Stripping Length	Control Circuit 10 mm, Main Circuit 14 mm
Degree of Protection	acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20, acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20
Tightening Torque	Control Circuit 1.2 N·m, Main Circuit 2.5 N·m
Terminal Type	Screw Terminals
Product Name	Block Contactor

Technical UL/CSA

Maximum Operating Voltage UL/CSA	Main Circuit 600 V
General Use Rating UL/CSA	(600 V AC) 50 A
Horsepower Rating UL/CSA	(120 V AC) Single Phase 2 hp, (200 ... 208 V AC) Three Phase 10 hp, (220 ... 240 V AC) Three Phase 10, (240 V AC) Single Phase 5 hp, (440 ... 480 V AC) Three Phase 25 hp, (550 ... 600 V AC) Three Phase 30 hp
Connecting Capacity Main Circuit UL/CSA	Rigid Solid 1/2x 14-10 AWG, Rigid Stranded 1/2x 14-8 AWG
Connecting Capacity Control Circuit UL/CSA	Rigid Solid 1/2x 18-14 AWG, Rigid Stranded 1/2x 18-14 AWG
Tightening Torque UL/CSA	Control Circuit 11 in·lb, Main Circuit 22 in·lb
Full Load Amps Motor Use	(120 V AC) Single Phase 24 A, (200 ... 208 V AC) Three Phase 32.2 A, (220 ... 240 V AC) Three Phase 28 A, (240 V AC) Single Phase 28 A, (440 ... 480 V AC) Three Phase 34 A, (550 ... 600 V AC) Three Phase 32 A

Environmental

Ambient Air Temperature	Close to Contactor Fitted with Thermal O/L Relay -25 ... 60 °C, Close to Contactor without Thermal O/L Relay -40 ... 70 °C, Close to Contactor for Storage -60 ... +80 °C
Climatic Withstand	Category B according to IEC 60947-1 Annex Q
Maximum Operating Altitude Permissible	Without Derating 3000 m
Resistance to Shock acc. to IEC 60068-2-27	Closed, Shock Direction: B1 25 g, Open, Shock Direction: B1 5 g, Shock Direction: A 30 g, Shock Direction: B2 15 g, Shock Direction: C1 25 g, Shock Direction: C2 25 g
Resistance to Vibrations	4g Closed Position & 2g Open position 5 ... 300 Hz
Pollution Degree	3

Material Compliance

RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B	Business To Business
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)

ABB EcoSolutions

ABB EcoSolutions	Yes
ABB Site Meeting Group Waste To Landfill Target	No non-hazardous waste is sent to a landfill
Improved Energy Efficiency for Customers	Product Efficiency - Product considered more energy-efficient compared to similar product on market or older products from the same line
Recyclability Rate of the Product acc. to EN45555	Design for Closing Resource Loops - Standard EN45555 - 94.3 %

External Classifications and Standards

Object Classification Code	Q
ETIM 7	EC000066 - Power contactor, AC switching
ETIM 8	EC000066 - Power contactor, AC switching
ETIM 9	EC000066 - Power contactor, AC switching
eClass	V11.0 : 27371003
UNSPSC	39121529
IDEA Granular Category Code (IGCC)	4758 >> Iec Contactors
E-Number (Finland)	3706319
