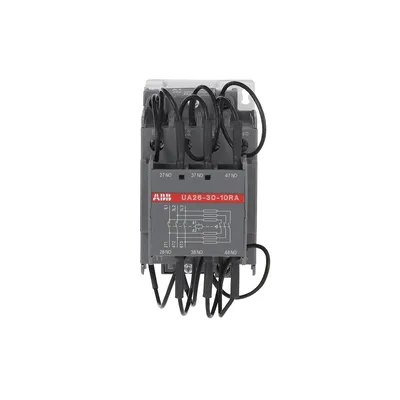

ABB 1SBL241024R8510 – UA26-30-10RA 380-400V 50Hz / 400-415V 60Hz Contactor
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | ABB UA and UA..RA Contactors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.71 kg |
| UPC / EAN | 3471522301857 |
Shipping & availability
When can 1SBL241024R8510 be shipped?
1SBL241024R8510 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1SBL241024R8510 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1SBL241024R8510 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SBL241024R8510, subject to availability and destination.

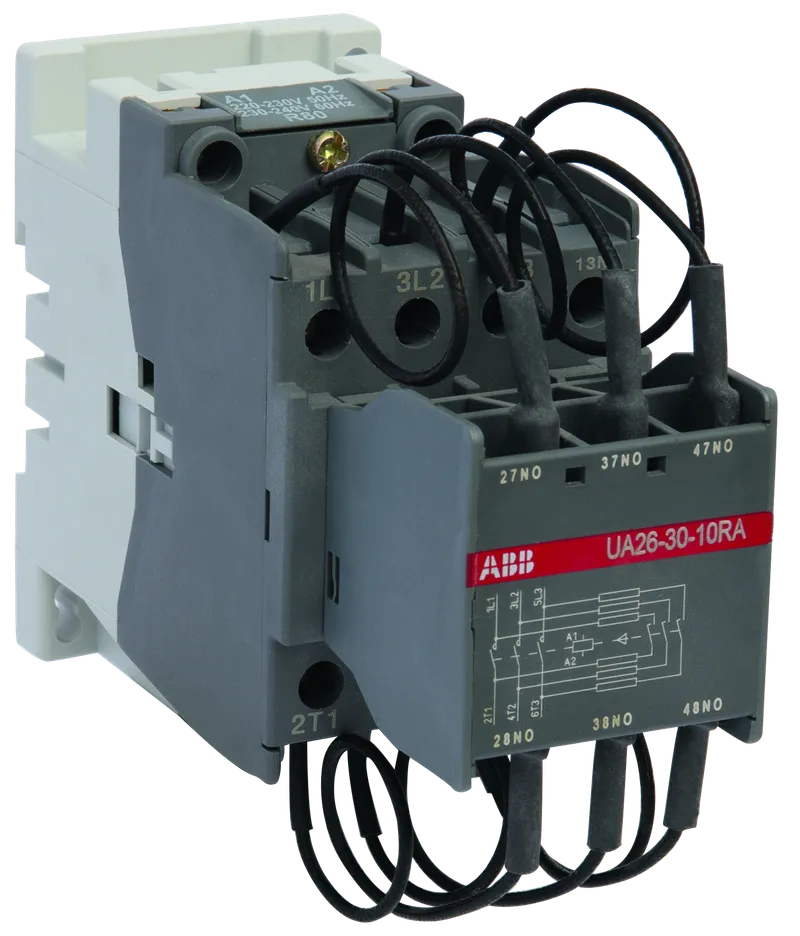

The UA26-30-10RA 380-400V 50Hz / 400-415V 60Hz is a 3-pole contactors for capacitor switching, can be used in installations in which the peak current far exceeds 100 times nominal rms current. The contactors are delivered complete with their damping resistors and must be used without additional inductances (see table below). The capacitors must be discharged (maximum residual voltage at terminals ≤ 50 V) before being re-energized when the contactors are making. Their electrical durability is 250 000 operating cycles for Ue < 500 V and 100 000 operating cycles for 500 V ≤ Ue ≤ 690 V. The UA..RA contactors are fitted with a special front mounted block, which ensures the serial insertion of 3 damping resistors into the circuit to limit the current peak on energization of the capacitor bank. Their connection also ensures capacitor precharging in order to limit the second current peak occurring upon making of the main poles. The insertion of resistors allows to damp the highest current peak of the capacitor when switching on, whatever its level. The UA..RA series 3-pole contactors are of the block type design. - Main poles and auxiliary contacts: 3 main poles, 1 built-in auxiliary contact - Control circuit: AC operated with laminated magnet circuit - Accessories: a wide range of accessories is available.
Specifications
General
| Order code (ABB product ID) | 1SBL241024R8510 |
| Type | UA26-30-10RA 380-400V 50Hz / 400-415V 60Hz |
| Lifecycle | Active (current ABB product) |
Ordering
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85364900 |
Dimensions
| Product Net Width | 54 mm |
| Product Net Depth / Length | 126.3 mm |
| Product Net Height | 120 mm |
| Product Net Weight | 0.71 kg |
Technical
| Number of Main Contacts NO | 3 |
| Number of Main Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 1 |
| Number of Auxiliary Contacts NC | 0 |
| Number of Poles | 3P |
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1 |
| Rated Operational Voltage | Auxiliary Circuit 690 V, Main Circuit 690 V |
| Rated Frequency (f) | Auxiliary Circuit 50 / 60 Hz, Control Circuit 50 / 60 Hz, Main Circuit 50 / 60 Hz |
| Conventional Free-air Thermal Current (I<sub>th</sub>) | acc. to IEC 60947-5-1, Θ = 40 °C 16 A |
| Rated Operational Current AC-15 (I<sub>e</sub>) | (500 V) 2 A, (690 V) 2 A, (24 / 127 V) 6 A, (220 / 240 V) 4 A, (380 / 400 V) 3 A |
| Rated Operational Current DC-13 (I<sub>e</sub>) | (24 V) 6 A / 144 W, (48 V) 2.8 A / 134 W, (72 V) 2 / 144 W, (110 V) 1.1 A / 121 W, (125 V) 1.1 / 138 W, (220 V) 0.55 A / 121 W, (250 V) 0.55 / 138 W |
| Rated Operational Power AC-6b (P<sub>e</sub>) | (230 / 240 V) 40 °C, 50 / 60 Hz 12.5 kvar, (230 / 240 V) 55 °C, 50 / 60 Hz 11.5 kvar, (230 / 240 V) 70 °C, 50 / 60 Hz 9 kvar, (400 / 415 V) 40 °C, 50 / 60 Hz 22 kvar, (400 / 415 V) 70 °C, 50 / 60 Hz 15.5 kvar, (400 / 415 V) 55 °C, 50 / 60 Hz 20 kvar, (440 V) 40 °C, 50 / 60 Hz 24 kvar, (440 V) 55 °C, 50 / 60 Hz 20 kvar, (440 V) 70 °C, 50 / 60 Hz 17 kvar, (500 / 550 V), 40 °C, 50 / 60 Hz 30 kvar, (500 / 550 V) 55 °C, 50 / 60 Hz 25 kvar, (500 / 550 V) 70 °C, 50 / 60 Hz 20 kvar, (690 V) 40 °C, 50 / 60 Hz 35 kvar, (690 V) 55 °C, 50 / 60 Hz 31 kvar, (690 V) 70 °C, 50 / 60 Hz 26 kvar |
| Short-Circuit Protective Devices | Auxiliary Circuit - gG Type Fuses 10 A, gG Type Fuses 125 A |
| Rated Short-time Withstand Current Low Voltage (I<sub>cw</sub>) | for 0.1 s 140 A, for 1 s 100 A |
| Maximum Breaking Capacity | cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 420 A, cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 170 A |
| Rated Insulation Voltage (U<sub>i</sub>) | acc. to IEC 60947-4-1 1000 V, acc. to IEC 60947-5-1 690 V, acc. to UL/CSA 600 V |
| Rated Impulse Withstand Voltage (U<sub>imp</sub>) | 8 kV |
| Electrical Durability | Ue =< 440 V 250000 cycle, Ue = 500 ... 690 V 100000 cycle |
| Maximum Electrical Switching Frequency | 240 cycles per hour |
| Minimum Switching Capacity | 17 / 5 VLT4K |
| Rated Control Circuit Voltage (U<sub>c</sub>) | 50 Hz 380 ... 400 V, 60 Hz 400 ... 415 V |
| Coil Consumption | Average Holding Value 50 / 60 Hz 12 V·A, Average Holding Value 50 Hz 12 V·A, Average Holding Value 60 Hz 12 V·A, Average Pull-in Value 50 Hz 120 V·A, Average Pull-in Value 60 Hz 140 V·A |
| Power Loss | at Rated Operating Conditions per Pole 0.1 W, at 6 A per Pole 0.1 W |
| Operate Time | Between Coil De-energization and NO Contact Opening 4 ... 11 ms, Between Coil Energization and NO Contact Closing 8 ... 21 ms |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Mounting by Screws (not supplied) | 2 x M4 Screws Placed Diagonally |
| Connecting Capacity Auxiliary Circuit | Flexible with Cable End 0.75 ... 2.5 mm², Rigid Cable 1 ... 4 mm² |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20, acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20, acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20 |
| Connecting Terminals (delivered in open position) Main Poles | M 4 (+,-) pozidriv 2 screws with cable clamp |
| Terminal Type | Screw Terminals |
| Product Name | Block Contactor |
Environmental
| Ambient Air Temperature | Close to Contactor for Storage -60 ... +80 °C, Near Contactor for Operation in Free Air (0.85 ... 1.1 Uc) -40 ... +55 °C, Near Contactor for Operation in Free Air (Uc) -40 ... 70 °C |
| Climatic Withstand | Category B according to IEC 60947-1 Annex Q |
| Maximum Operating Altitude Permissible | Without Derating 3000 m |
| Pollution Degree | 3 |
Material Compliance
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards
| Object Classification Code | Q |
| ETIM 7 | EC001079 - Capacitor contactor |
| ETIM 8 | EC001079 - Capacitor contactor |
| ETIM 9 | EC001079 - Capacitor contactor |
| eClass | V11.0 : 27371006 |
| UNSPSC | 39121529 |
Downloads & documentation
Official documents from ABB, downloaded directly from the manufacturer.
Data sheets & manuals
| Data Sheet, Technical Information (1SBC100214C0202) | |
| Instructions and Manuals (1SBC101002M5501) | |
| Dimension Diagram (FPTE307846) |
CAD & dimension drawings
| CAD Dimensional Drawing (2CDC001079B0201) |
Certificates (9)
