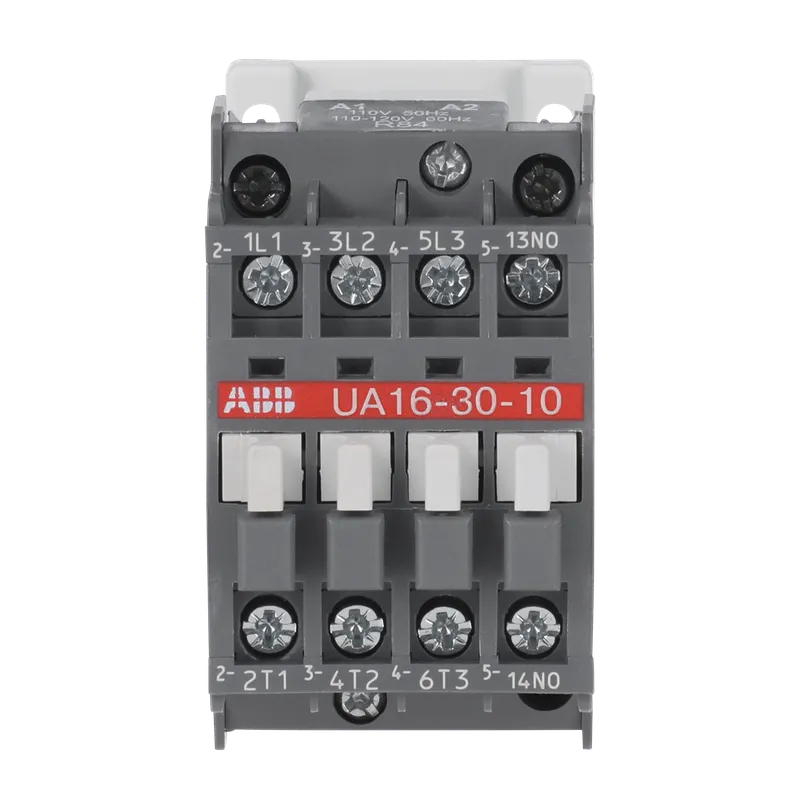

UA16-30-10 110V 50Hz / 110-120V 60Hz Contactor — photo 1 of 4

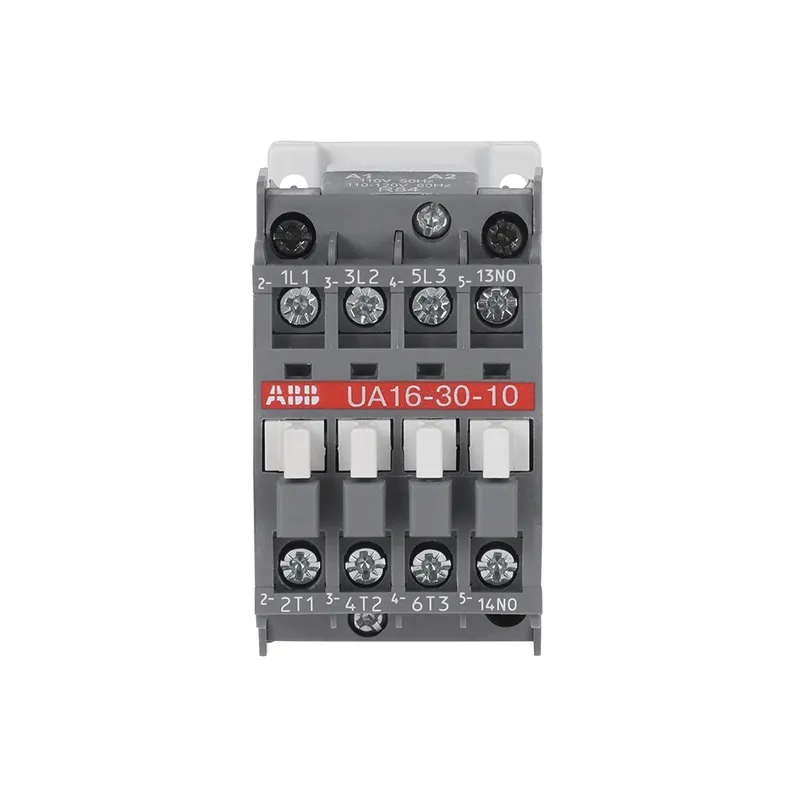

UA16-30-10 110V 50Hz / 110-120V 60Hz Contactor — photo 2 of 4

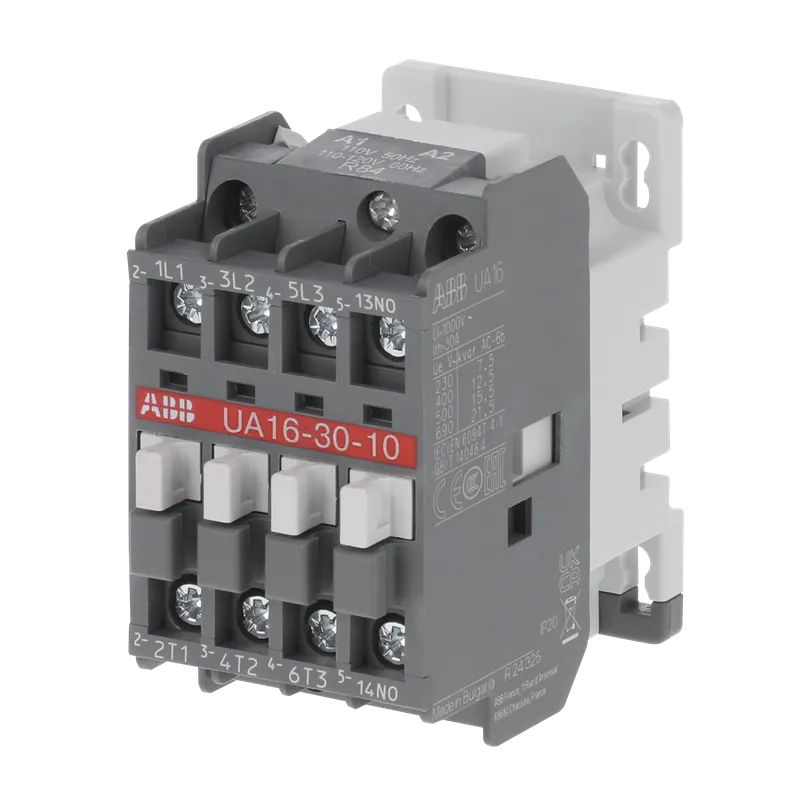

UA16-30-10 110V 50Hz / 110-120V 60Hz Contactor — photo 3 of 4

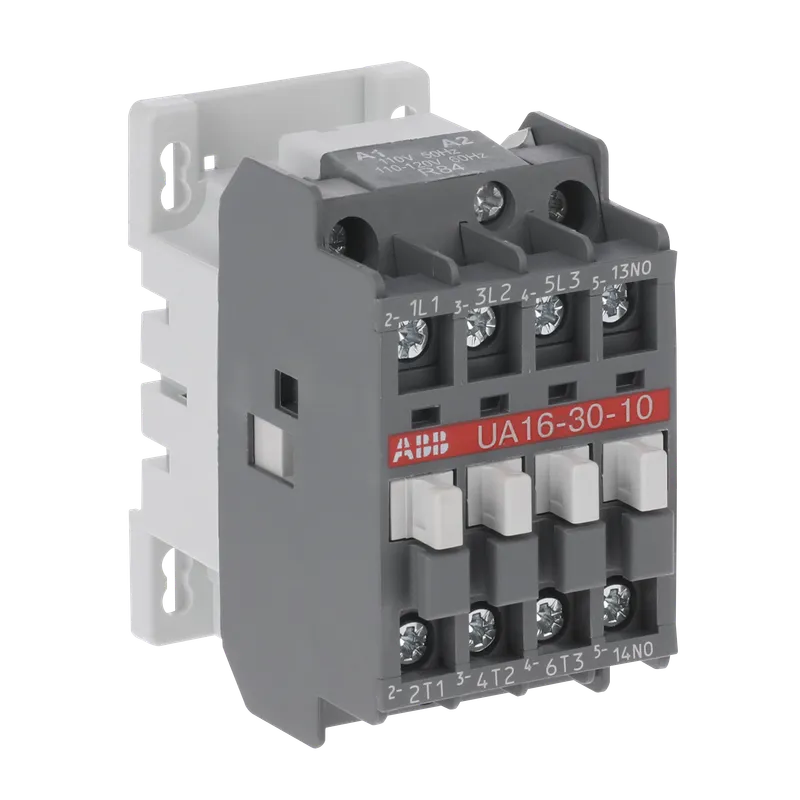

UA16-30-10 110V 50Hz / 110-120V 60Hz Contactor — photo 4 of 4

Available on request

ABB 1SBL181022R8410 – UA16-30-10 110V 50Hz / 110-120V 60Hz Contactor

MPN: 1SBL181022R8410 · Brand: ABB

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	ABB UA and UA..RA Contactors
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.34 kg
Country of origin	India
UPC / EAN	3471522254849

Shipping & availability

When can 1SBL181022R8410 be shipped?

1SBL181022R8410 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1SBL181022R8410 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1SBL181022R8410 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SBL181022R8410, subject to availability and destination.

UA16 3-pole contactors for capacitor switching, can be used for the switching of capacitor banks whose inrush current peaks are less than or equal to 100 times nominal rms current. The table below gives the permissible powers according to operational voltage and temperature close to the contactor. It also specifies the maximum peak current Î values accepted by the contactor. The capacitors must be discharged (maximum residual voltage at terminals ≤ 50 V) before being re-energized when the contactors are making. In these conditions, electrical durability of contactors is equal to 100 000 operating cycles. The UA.. series 3-pole contactors are of the block type design. - Main poles and auxiliary contacts: 3 main poles, 1 built-in auxiliary contact - Control circuit: AC operated with laminated magnet circuit - Accessories: a wide range of accessories is available.

Specifications

General

Order code (ABB product ID)	1SBL181022R8410
Type	UA16-30-10 110V 50Hz / 110-120V 60Hz
Lifecycle	Active (current ABB product)
Country of origin	India

Ordering

Minimum Order Quantity	1 piece
Customs Tariff Number	85364900

Dimensions

Product Net Width	44 mm
Product Net Depth / Length	74 mm
Product Net Height	74 mm
Product Net Weight	0.34 kg

Technical

Number of Main Contacts NO	3
Number of Main Contacts NC	0
Number of Auxiliary Contacts NO	1
Number of Auxiliary Contacts NC	0
Number of Poles	3P
Standards	IEC/EN 60947-1, IEC/EN 60947-4-1
Rated Operational Voltage	Auxiliary Circuit 690 V, Main Circuit 690 V
Rated Frequency (f)	Auxiliary Circuit 50 / 60 Hz, Control Circuit 50 / 60 Hz, Main Circuit 50 / 60 Hz
Conventional Free-air Thermal Current (I<sub>th</sub>)	acc. to IEC 60947-5-1, Θ = 40 °C 16 A
Rated Operational Current AC-15 (I<sub>e</sub>)	(500 V) 2 A, (690 V) 2 A, (24 / 127 V) 6 A, (220 / 240 V) 4 A, (380 / 400 V) 3 A
Rated Operational Current DC-13 (I<sub>e</sub>)	(24 V) 6 A / 144 W, (48 V) 2.8 A / 134 W, (72 V) 2 / 144 W, (110 V) 1.1 A / 121 W, (125 V) 1.1 / 138 W, (220 V) 0.55 A / 121 W, (250 V) 0.55 / 138 W
Rated Operational Power AC-6b (P<sub>e</sub>)	(230 / 240 V) 40 °C, 50 / 60 Hz 7.5 kvar, (230 / 240 V) 55 °C, 50 / 60 Hz 6.7 kvar, (230 / 240 V) 70 °C, 50 / 60 Hz 6 kvar, (400 / 415 V) 40 °C, 50 / 60 Hz 12.5 kvar, (400 / 415 V) 70 °C, 50 / 60 Hz 10 kvar, (400 / 415 V) 55 °C, 50 / 60 Hz 11.7 kvar, (440 V) 40 °C, 50 / 60 Hz 13.7 kvar, (440 V) 55 °C, 50 / 60 Hz 13 kvar, (440 V) 70 °C, 50 / 60 Hz 11 kvar, (500 / 550 V), 40 °C, 50 / 60 Hz 15.5 kvar, (500 / 550 V) 55 °C, 50 / 60 Hz 14.7 kvar, (500 / 550 V) 70 °C, 50 / 60 Hz 12.5 kvar, (690 V) 40 °C, 50 / 60 Hz 21.5 kvar, (690 V) 55 °C, 50 / 60 Hz 20 kvar, (690 V) 70 °C, 50 / 60 Hz 17 kvar
Short-Circuit Protective Devices	Auxiliary Circuit - gG Type Fuses 10 A, gG Type Fuses 1.5 ... 1.8 A
Rated Short-time Withstand Current Low Voltage (I<sub>cw</sub>)	for 0.1 s 140 A, for 1 s 100 A
Maximum Breaking Capacity	cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 250 A, cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 90 A
Rated Insulation Voltage (U<sub>i</sub>)	acc. to IEC 60947-4-1 1000 V, acc. to IEC 60947-5-1 690 V, acc. to UL/CSA 600 V
Rated Impulse Withstand Voltage (U<sub>imp</sub>)	8 kV
Maximum Mechanical Switching Frequency	3600 cycles per hour
Minimum Switching Capacity	17 / 5 VLT4K
Rated Control Circuit Voltage (U<sub>c</sub>)	50 Hz 110 V, 60 Hz 110 ... 120 V
Coil Consumption	Average Holding Value 50 / 60 Hz 8 V·A, Average Pull-in Value 50 Hz 74 V·A, Average Pull-in Value 60 Hz 70 V·A, Pull-in at Max. Rated Control Circuit Voltage 50 Hz 70 V·A, Pull-in at Max. Rated Control Circuit Voltage 60 Hz 80 V·A
Power Loss	at Rated Operating Conditions per Pole 0.1 W, at 6 A per Pole 0.1 W
Operate Time	Between Coil De-energization and NO Contact Opening 4 ... 11 ms, Between Coil Energization and NO Contact Closing 10 ... 26 ms
Mounting on DIN Rail	TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Mounting by Screws (not supplied)	2 x M4 Screws Placed Diagonally
Connecting Capacity Main Circuit	Flexible with Cable End 1/2x 0.75 ... 2.5 mm², Rigid Solid 1/2x 1 ... 4 mm²
Connecting Capacity Auxiliary Circuit	Flexible with Cable End 1/2x 0.75 ... 2.5 mm², Rigid Solid 1/2x 1 ... 4 mm²
Degree of Protection	acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20, acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20, acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20
Connecting Terminals (delivered in open position) Main Poles	M 3.5 (+,-) pozidriv 2 screws with cable clamp
Terminal Type	Screw Terminals
Product Name	Block Contactor

Technical UL/CSA

Connecting Capacity Main Circuit UL/CSA

1/2x 18-10 AWG

Environmental

Ambient Air Temperature	Close to Contactor for Storage -60 ... +80 °C, Near Contactor for Operation in Free Air (0.85 ... 1.1 Uc) -40 ... +55 °C, Near Contactor for Operation in Free Air (Uc) -40 ... 70 °C
Climatic Withstand	according to IEC 60068-2-30 and 60068-2-11 - UTE C 63-100 Specification II
Maximum Operating Altitude Permissible	Without Derating 3000 m
Pollution Degree	3

Material Compliance

RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B	Business To Business
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)

External Classifications and Standards

Object Classification Code	Q
ETIM 7	EC001079 - Capacitor contactor
ETIM 8	EC001079 - Capacitor contactor
ETIM 9	EC001079 - Capacitor contactor
eClass	V11.0 : 27371006
UNSPSC	39121529
