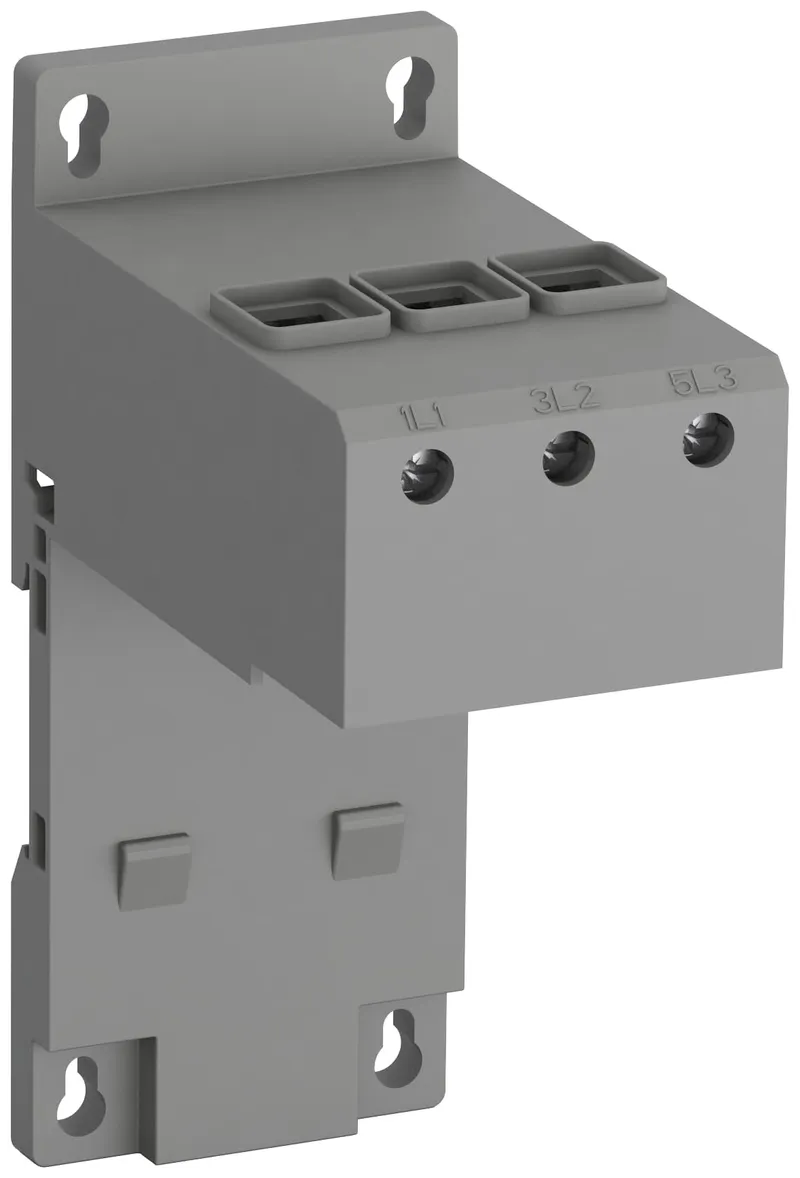

ABB 1SAZ801901R1001 – DB65 Single Mounting Kit
MPN: 1SAZ801901R1001 · Brand: ABB
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | ABB Thermal Overload Relays |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.132 kg |
| Country of origin | India |
| UPC / EAN | 4013614501722 |
Shipping & availability
When can 1SAZ801901R1001 be shipped?
1SAZ801901R1001 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1SAZ801901R1001 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1SAZ801901R1001 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SAZ801901R1001, subject to availability and destination.
The DB65 single mounting kit allows the installation of TF65 thermal overload relays without a contactor on a DIN rail or mounting plate.
Specifications
General
| Order code (ABB product ID) | 1SAZ801901R1001 |
| Type | DB65 |
| Lifecycle | Active (current ABB product) |
| Country of origin | India |
Ordering
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
Dimensions
| Product Net Width | 55 mm |
| Product Net Height | 95 mm |
| Product Net Depth / Length | 138 mm |
| Product Net Weight | 0.132 kg |
Technical
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Operational Current (I<sub>e</sub>) | 67 A |
| Rated Operational Current AC-3 (I<sub>e</sub>) | 67 A |
| Rated Frequency (f) | Main Circuit 60 Hz, Main Circuit 50 Hz |
| Rated Impulse Withstand Voltage (U<sub>imp</sub>) | Main Circuit 8 kV |
| Rated Insulation Voltage (U<sub>i</sub>) | 390 V |
| Number of Poles | 3P |
| Degree of Protection | IP20 |
| Pollution Degree | 3 |
| Connecting Capacity Main Circuit | Flexible with Ferrule 1x 2.5 ... 35 mm², Flexible with Ferrule 2x 2.5 ... 10 mm², Flexible with Insulated Ferrule 1x 2.5 ... 35 mm², Flexible with Insulated Ferrule 1x 2.5 ... 10 mm², Flexible 1x 2.5 ... 35 mm², Flexible 2x 2.5 ... 16 mm², Rigid 1x 2.5 ... 35 mm², Rigid 2x 2.5 ... 16 mm² |
| Tightening Torque | Main Circuit 4.0 ... 4.5 N·m |
| Wire Stripping Length | Main Circuit 17 mm |
| Recommended Screw Driver | M6, Pozidriv 2 |
| Mounting Position | 1 ... 6 |
| Suitable For | TF65 |
Technical UL/CSA
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V AC |
| Connecting Capacity Main Circuit UL/CSA | Flexible 1x 12-2 AWG, Flexible 2x 12-6 AWG, Stranded 1x 12-2 AWG, Stranded 2x 12-6 AWG |
| Tightening Torque UL/CSA | Main Circuit 35 ... 40 in·lb |
Environmental
| Resistance to Shock acc. to IEC 60068-2-27 | 11 ms Pulse 25g |
| Resistance to Vibrations | 5g 3 ... 150 Hz |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
Material Compliance
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards
| Object Classification Code | Q |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 10 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| eClass | V11.0 : 27371392 |
| UNSPSC | 31162313 |
| IDEA Granular Category Code (IGCC) | 2988 >> Mounting kits |
| E-Number (Norway) | 4116779 |
| E-Number (Sweden) | 3210250 |
Downloads & documentation
Official documents from ABB, downloaded directly from the manufacturer.
Data sheets & manuals
| Data Sheet, Technical Information (1SBC100214C0202) | |
| Instructions and Manuals (2CDC106087M6802) | |
| Instructions and Manuals (Part 2) (1SAC200017M0002) |
CAD & dimension drawings
| CAD Dimensional Drawing (2CDC001079B0201) |
12-month warrantyon all new stock
3-month warrantyon used & refurbished parts
30-day returnsno restocking fee on unused parts
Global shippingFast, tracked delivery worldwide
