ABB 1SAX821001R1101

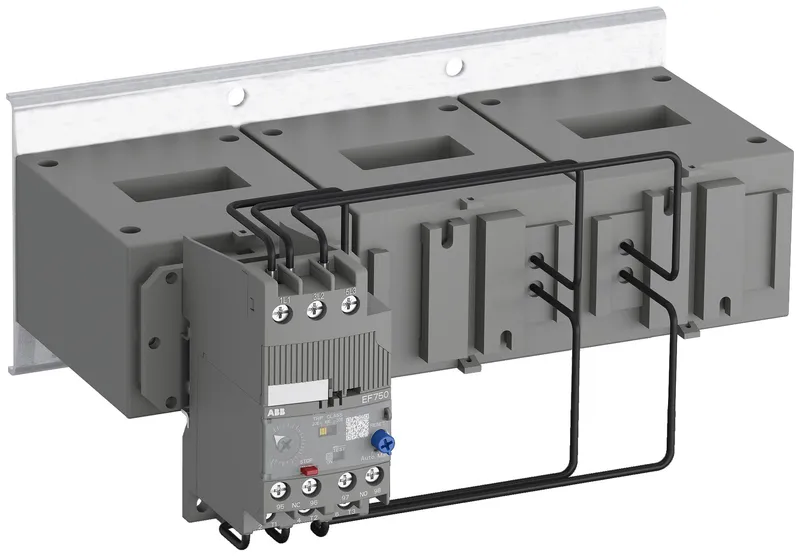

EF750-800 Electronic Overload Relay 250 ... 800 A

MPN
1SAX821001R1101
EAN
4013614487422
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare ABB parts? We buy surplus →

What is the ABB 1SAX821001R1101?

The EF750-800 is an self-supplied electronic overload relay, which means no extra external supply is needed. It offers reliable and fast protection for motors in the event of overload or phase failure. Easy to use like a thermal overload relay and compatible with standard motor applications, the electronic overload relay is convincing, above all, due to its wide setting range, high accuracy, high operational temperature range and the possibility to select a trip class (10E, 20E, 30E). Further features are the temperature compensation, trip contact (NC), signal contact (NO), automatic- or manual reset selectable, trip-free mechanism, STOP- and Test function and a trip indication. EF750 has ATEX and IECEx certification 1)

1) ATEX is valid for products produced from week 42, 2014.

IECEx is valid for products produced from week 15, 2017.

Specifications

General

Order code (ABB product ID)1SAX821001R1101
TypeEF750-800
LifecycleActive (current ABB product)
Country of originChina

Ordering

Minimum Order Quantity1 piece
Customs Tariff Number85364900

Dimensions

Product Net Width244 mm
Product Net Height111.6 mm
Product Net Depth / Length187.73 mm
Product Net Weight2.765 kg

Technical

Setting Range250 ... 800 A
Rated Operational VoltageAuxiliary Circuit 600 V AC/DC, Main Circuit 1000 V AC
Rated Operational Current (I<sub>e</sub>)800 A
Rated Frequency (f)Auxiliary Circuit 50 Hz, Auxiliary Circuit 60 Hz, Auxiliary Circuit DC, Main Circuit 50 Hz, Main Circuit 60 Hz
Rated Impulse Withstand Voltage (U<sub>imp</sub>)Auxiliary Circuit 6 kV, Main Circuit 8 kV
Rated Insulation Voltage (U<sub>i</sub>)1000 V
Number of Poles3P
Number of Auxiliary Contacts NC1
Number of Auxiliary Contacts NO1
Number of Protected Poles3
Conventional Free-air Thermal Current (I<sub>th</sub>)Auxiliary Circuit NC 6 A, Auxiliary Circuit NO 6 A
Rated Operational Current AC-15 (I<sub>e</sub>)(240 V) NC 3 A, (240 V) NO 3 A, (400 V) NC 1.1 A, (400 V) NO 1.1 A, (500 V) NC 0.75 A, (500 V) NO 0.75 A
Rated Operational Current DC-13 (I<sub>e</sub>)(125 V) NC 0.55 A, (125 V) NO 0.5 A, (24 V) NC 1.5 A, (24 V) NO 1.5 A, (250 V) NC 0.27 A, (250 V) NO 0.27 A, (60 V) NC 0.55 A, (60 V) NO 0.55 A
Degree of ProtectionHousing IP20, Main Circuit Terminals IP00
Pollution Degree3
Connecting Capacity Auxiliary CircuitFlexible with Ferrule 1/2x 0.75 ... 2.5 mm², Flexible with Insulated Ferrule 1/2x 0.75 ... 2.5 mm², Flexible 1/2x 0.75 ... 2.5 mm², Rigid 1/2x 1 ... 4 mm²
Tightening TorqueAuxiliary Circuit 0.8 ... 1.2 N·m
Wire Stripping LengthAuxiliary Circuit 9 mm
Recommended Screw DriverAuxiliary Circuit Pozidriv 2
Mounting Position1 ... 6
Power Lossat Rated Operating Conditions per Pole 0.005 ... 0.054 W
Suitable ForAF580, AF750
StandardsIEC/EN 60947-1, IEC/EN 60947-4-1, IEC/EN 60947-5-1, UL 60947-1, UL 60947-4-1

Technical UL/CSA

Maximum Operating Voltage UL/CSAMain Circuit 600 V AC
Contact Rating UL/CSA(NC:) B600, (NC:) Q600, (NO:) B600, (NO:) Q600
Connecting Capacity Auxiliary Circuit UL/CSAFlexible 1/2x 18-10 AWG, Stranded 1/2x 18-10 AWG
Tightening Torque UL/CSAAuxiliary Circuit 7 ... 1 in·lb

Environmental

Ambient Air TemperatureOperation -25 ... +70 °C, Operation Compensated -25 ... +70 °C, Storage -25 ... +70 °C
Ambient Air Temperature CompensationYes
Maximum Operating Altitude Permissible2000 m
Resistance to Shock acc. to IEC 60068-2-2711 ms Pulse 25g
Resistance to Vibrations3g 3 ... 150 Hz
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Material Compliance

WEEE B2C / B2BBusiness To Business
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)

External Classifications and Standards

Object Classification CodeF
ETIM 9EC001080 - Electronic overload relay
ETIM 10EC001080 - Electronic overload relay
eClassV11.0 : 27371502
UNSPSC39122330
IDEA Granular Category Code (IGCC)5365 >> Electronic overload relay
E-Number (Finland)3707464
E-Number (Norway)4116706
E-Number (Sweden)3210295
