ABB 1SAX701902R1011 – DT500/AF460-S Mounting Kit
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | ABB Electronic Overload Relays |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.635 kg |
| Country of origin | Germany |
| UPC / EAN | 4013614353918 |
Shipping & availability
When can 1SAX701902R1011 be shipped?
1SAX701902R1011 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1SAX701902R1011 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1SAX701902R1011 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SAX701902R1011, subject to availability and destination.

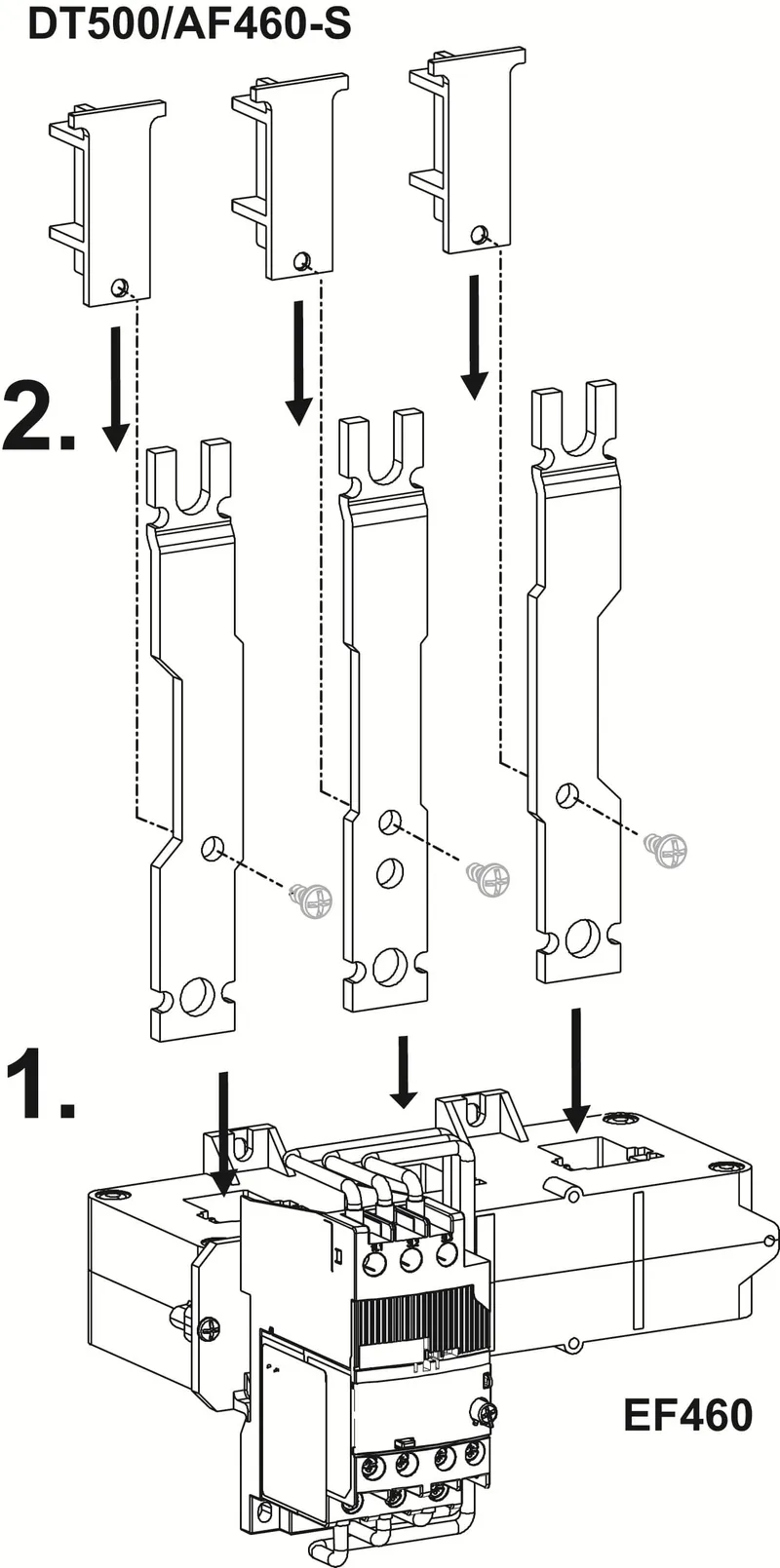

DT500/AF460-S Mounting Kit short is used to mount EF460 overload relays on AF400/AF460 contactors.
Specifications
General
| Order code (ABB product ID) | 1SAX701902R1011 |
| Type | DT500/AF460-S |
| Lifecycle | Active (current ABB product) |
| Country of origin | Germany |
Ordering
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
Dimensions
| Product Net Width | 5 mm |
| Product Net Height | 172 mm |
| Product Net Depth / Length | 27.5 mm |
| Product Net Weight | 0.635 kg |
Technical
| Suitable For | E500DU, EF460 |
| Standards | UL 60947-1, UL 60947-4-1 |
Environmental
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
Material Compliance
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 10 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| eClass | V11.0 : 27371392 |
| UNSPSC | 31162313 |
| IDEA Granular Category Code (IGCC) | 2988 >> Mounting kits |
| E-Number (Finland) | 3847181 |
| E-Number (Norway) | 4116994 |
Downloads & documentation
Official documents from ABB, downloaded directly from the manufacturer.
Data sheets & manuals
| Data Sheet, Technical Information (1SBC100214C0202) |
CAD & dimension drawings
| CAD Dimensional Drawing (2CDC001079B0201) |
More ABB parts

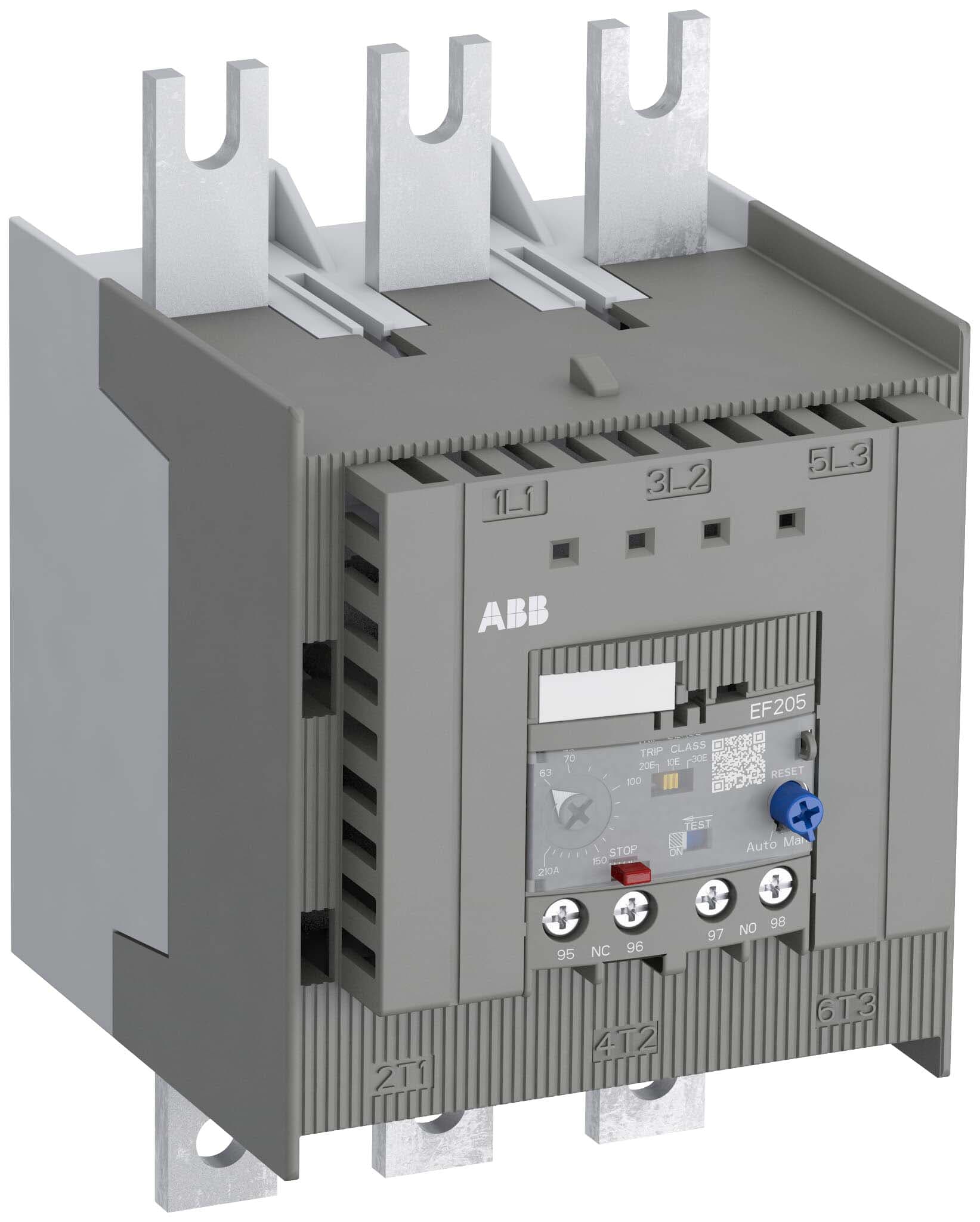

Available on requestEF205-210 Electronic Overload Relay 63 ... 210 A

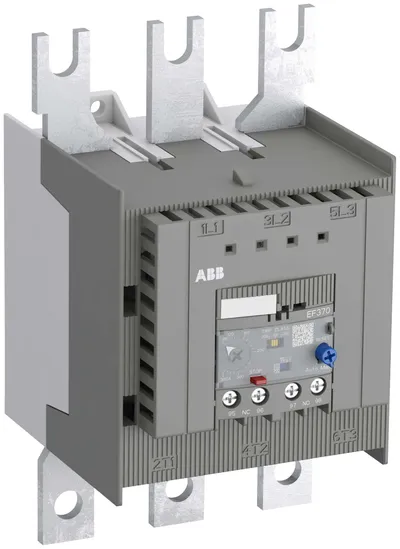

Available on requestEF370-380 Electronic Overload Relay 115 ... 380 A

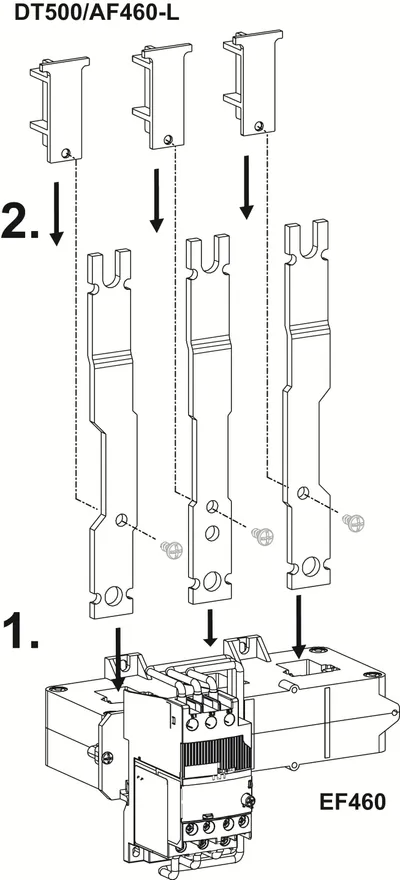

Available on requestDT500/AF460-L Mounting Kit

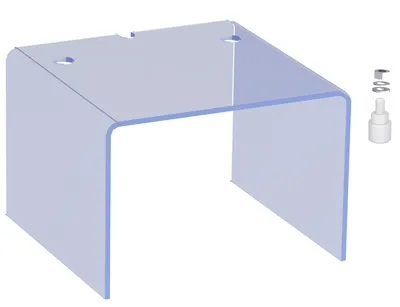

Available on requestLT460EF Terminal Shroud

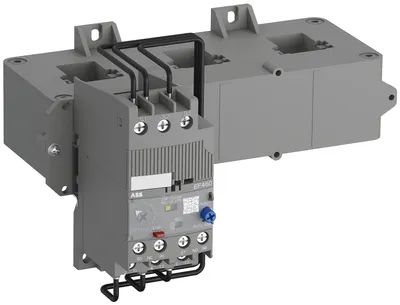

Available on requestEF460-500 Electronic Overload Relay 150 ... 500 AAvailable on requestDT800/AF750-L Mounting Kit
