ABB 1SAX201910R0001 – DB45EF Single Mounting Kit

MPN: 1SAX201910R0001 · Brand: ABB

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	ABB Electronic Overload Relays
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.1 kg
Country of origin	India
UPC / EAN	4013614493393

Shipping & availability

When can 1SAX201910R0001 be shipped?

1SAX201910R0001 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1SAX201910R0001 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1SAX201910R0001 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SAX201910R0001, subject to availability and destination.

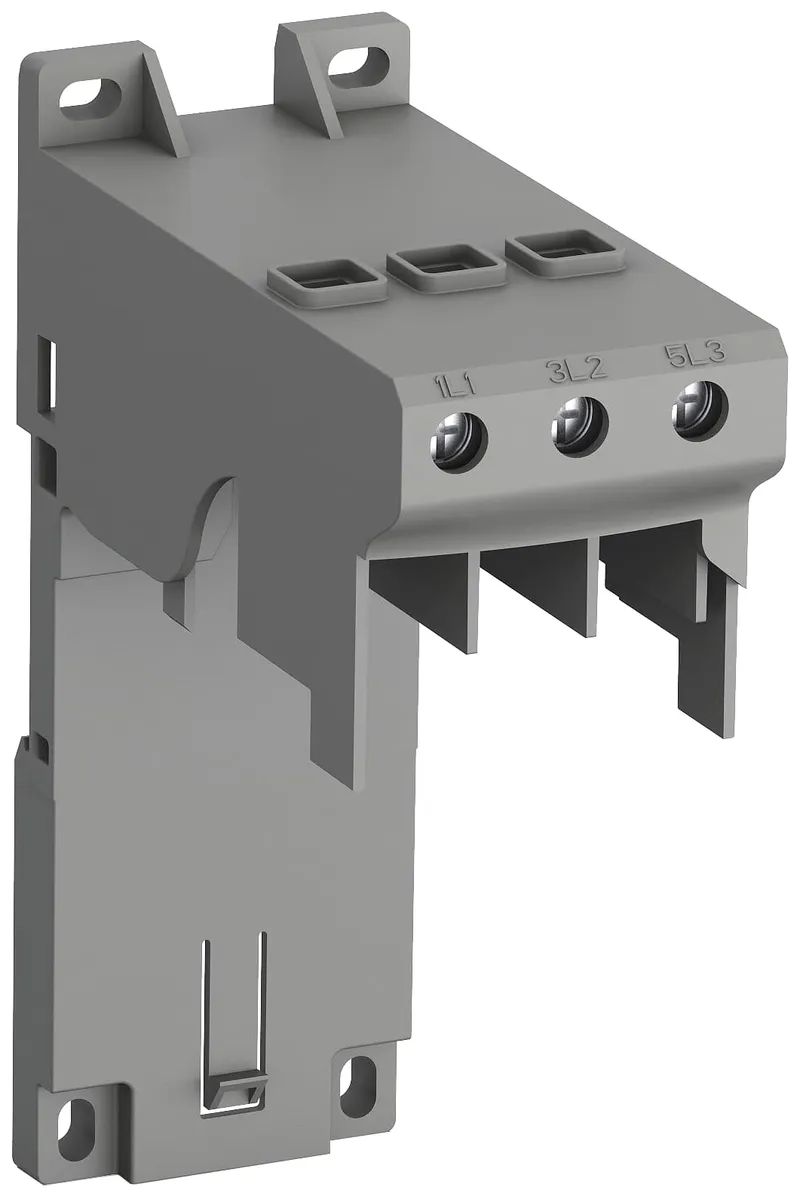

The DB45EF single mounting kit allows the installation of EF45 electronic overload relays without a contactor on a DIN rail or mounting plate.

Specifications

General

Order code (ABB product ID)	1SAX201910R0001
Type	DB45EF
Lifecycle	Active (current ABB product)
Country of origin	India

Ordering

Minimum Order Quantity	1 piece
Customs Tariff Number	85389099

Dimensions

Product Net Width	45 mm
Product Net Height	130 mm
Product Net Depth / Length	98 mm
Product Net Weight	0.1 kg

Technical

Number of Poles	3P
Connecting Capacity Main Circuit	Flexible with Ferrule 1x 2.5 ... 10 mm², Flexible with Insulated Ferrule 1x 2.5 ... 10 mm², Flexible 1x 2.5 ... 10 mm², Rigid 1x 2.5 ... 16 mm²
Tightening Torque	Main Circuit 0.8 ... 1.5 N·m
Wire Stripping Length	Main Circuit 15 mm
Recommended Screw Driver	Pozidriv 2
Suitable For	EF45
Standards	IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1

Technical UL/CSA

Connecting Capacity Main Circuit UL/CSA	Flexible 1x 14-6 AWG, Stranded 1x 14-6 AWG
Tightening Torque UL/CSA	Main Circuit 7 ... 13 in·lb

Environmental

RoHS Information

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Material Compliance

WEEE B2C / B2B	Business To Business
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)

External Classifications and Standards

Object Classification Code	Q
ETIM 9	EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 10	EC002498 - Accessories/spare parts for low-voltage switch technology
eClass	V11.0 : 27371392
UNSPSC	31162313
IDEA Granular Category Code (IGCC)	2988 >> Mounting kits
E-Number (Finland)	3709422
