What is the ABB 1SAP560510R0001?

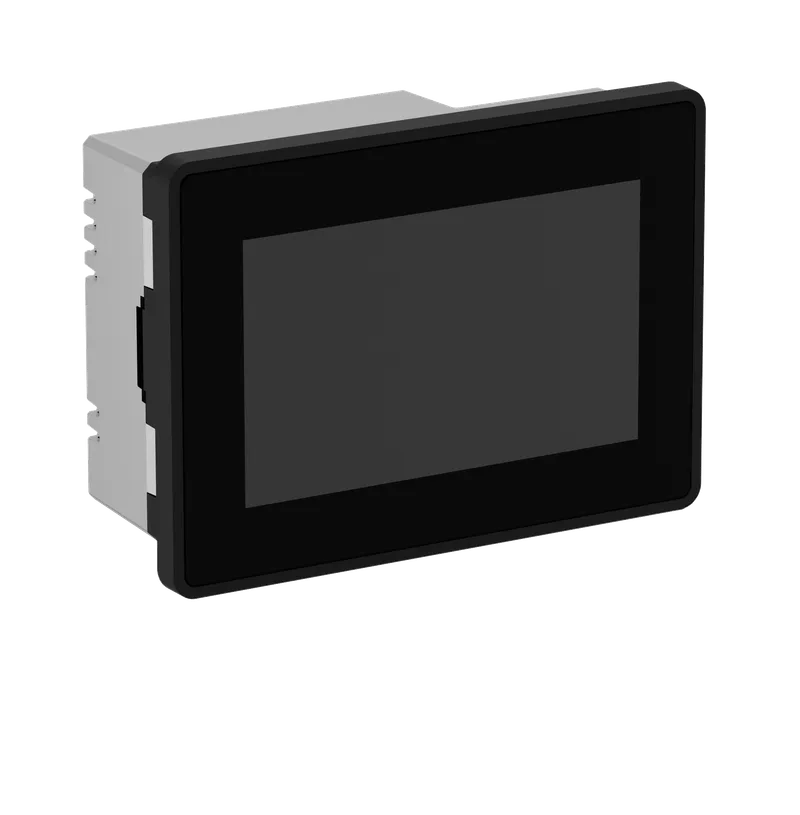

CP6605: CP600-Pro Control panel. 5" TFT multi-touch screen, 64 K colors, 800 x 480 pixel, Chromium Browser. PB610 applications.

Specifications

Ordering

CN885371091
Invoice DescriptionControl panel. 5" TFT multi-touch screen, 64 K colors, 800 x 480 pixel, Chromium Browser (CP6605)
Made To OrderNo
Minimum Order Quantity1 piece
Order Multiple1 piece
Selling Unit of Measurepiece

Dimensions

Product Net Weight0.74 kg kg
Product Net Depth / Length64 mm mm
Product Net Height107 mm mm
Product Net Width147 mm mm
Gross Weight1.3 kg kg
Package Level 1 Depth / Length260 mm mm
Package Level 1 Height120 mm mm
Package Level 1 Width190 mm mm
Package Level 1 Units1 carton

Certificates and Declarations

Declaration of Conformity - CE3ADR980149
REACH Date20241206
REACH Declaration3ADR980139
REACH InformationTrue - contains substances > 0.1 mass percentage
SCIP242e2067-5af0-4439-a0e8-2e45f85eba25 Germany
RoHS Declaration3ADR980149
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Technical

Function5" TFT multi-touch screen, 64 K colors, 800 x 480 pixel, Chromium Browser
Screen Size5 in
Screen Color65536 Colors
Screen Resolution800 x 480 pixel
Display TypeTFT Capacitive Multitouch
Number of Hardware InterfacesIndustrial Ethernet 2, Other 1, Parallel 0, RS-232 0, RS-422 0, RS-485 0, Serial TTY 0, USB 1, Wireless 0, PROFINET 0
Memory Size60000 kB
Security50
Input Voltage TypeDC
Degree of ProtectionFront IP66
Supply Voltage18 … 32 V DC V
Built-In Depth (t2)52 mm mm
Ambient Air TemperatureOperation -20 … +60 °C

Additional Information

Product Main TypeCP6605
Product NameControl Panels

External Classifications and Standards

eClass27-33-02-01
ETIM 8EC001412 - Graphic panel
ETIM 9EC001412 - Graphic panel
ETIM 10EC001412 - Graphic panel
UNSPSC32151703

Environmental

WEEE B2C / B2BBusiness To Business
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm) cm
