ABB 1SAP504100R2001
- MPN
- 1SAP504100R2001
- Category
- CP600-eco
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the ABB 1SAP504100R2001?

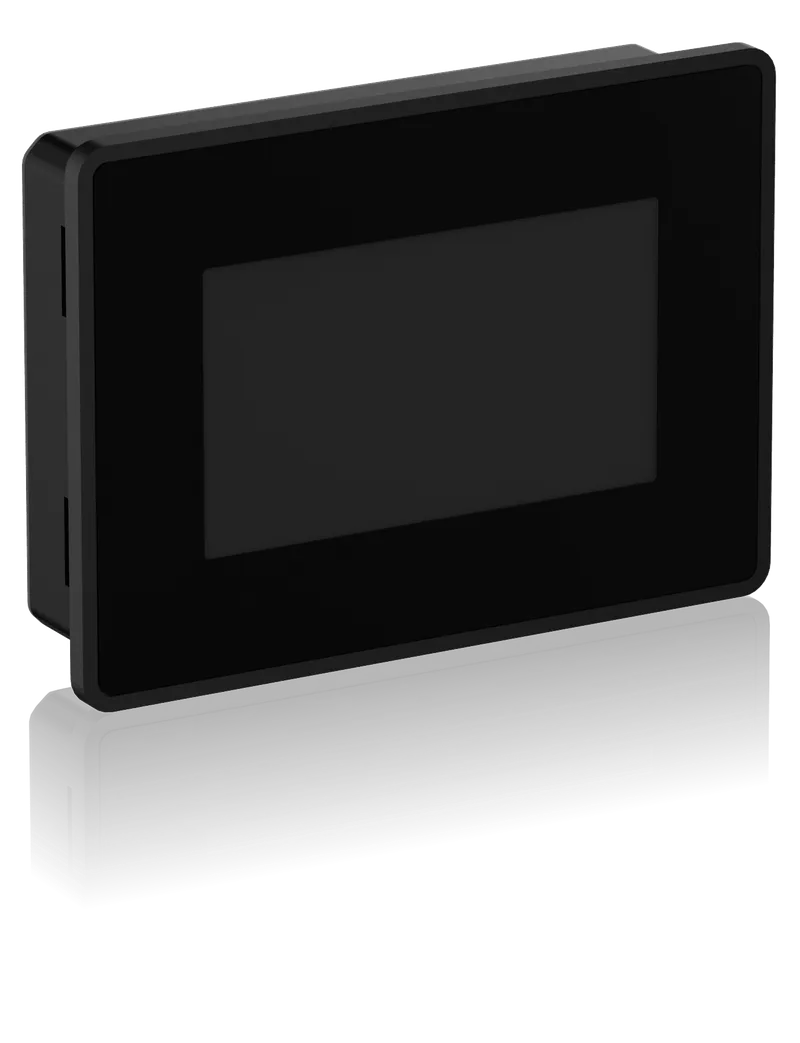

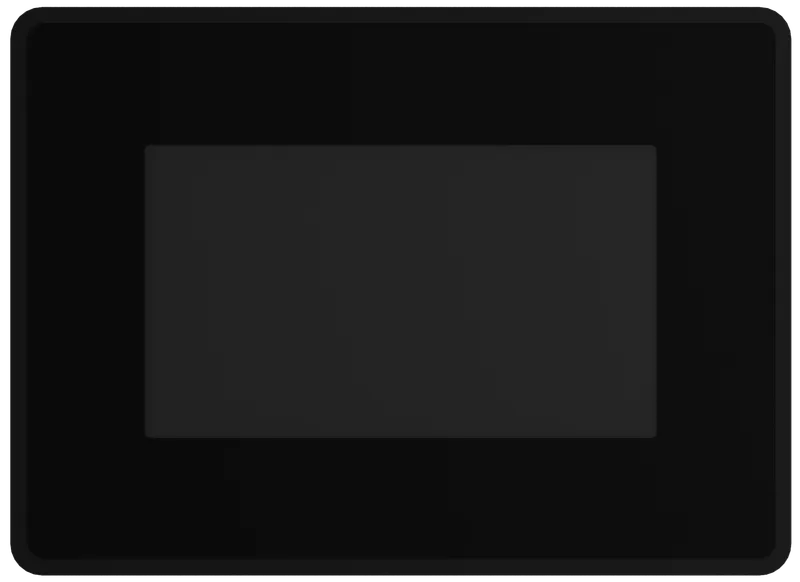

CP604-B: CP600-eCo Control panel. 4.3" TFT touch screen, 64 K colors, 480x272 pixel, black front. PB610 applications.
Specifications
Ordering
| CN8 | 85371091 |
| Invoice Description | Control panel. 4.3" TFT touch screen, 64 K colors, 480x272 pixel, black front (CP604-B) |
| Made To Order | No |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
| Selling Unit of Measure | piece |
Dimensions
| Product Net Weight | 0.29 kg kg |
| Product Net Depth / Length | 34 mm mm |
| Product Net Height | 107 mm mm |
| Product Net Width | 147 mm mm |
| Gross Weight | 0.65 kg kg |
| Package Level 1 Depth / Length | 241 mm mm |
| Package Level 1 Height | 97 mm mm |
| Package Level 1 Width | 202 mm mm |
| Package Level 1 Units | 1 carton |
Certificates and Declarations
| Declaration of Conformity - CE | 3ADR980149 |
| REACH Date | 20241206 |
| REACH Declaration | 3ADR980139 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| SCIP | f9e51503-16b2-49a0-842f-765f83a80e9a Germany |
| RoHS Declaration | 3ADR980149 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
Technical
| Function | 4.3" TFT touch screen, 64 K colors, 480x272 pixel, black front |
| Screen Size | 4.3 in |
| Screen Color | 65536 Colors |
| Screen Resolution | 480 x 272 pixel |
| Display Type | TFT Resistive Touch |
| Number of Hardware Interfaces | Industrial Ethernet 1, Other 1, Parallel 0, RS-232 0, RS-422 0, RS-485 0, Serial TTY 0, USB 1, Wireless 0, PROFINET 0 |
| Memory Size | 60000 kB |
| Security | 50 |
| Input Voltage Type | DC |
| Degree of Protection | Front IP66 |
| Supply Voltage | 18 … 32 V DC V |
| Built-In Depth (t2) | 29 mm mm |
| Ambient Air Temperature | Operation 0 … 50 °C |
Additional Information
| Product Main Type | CP604 |
| Product Name | Control Panels |
External Classifications and Standards
| eClass | 27-33-02-01 |
| ETIM 8 | EC001412 - Graphic panel |
| ETIM 9 | EC001412 - Graphic panel |
| ETIM 10 | EC001412 - Graphic panel |
| UNSPSC | 32151703 |
Environmental
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) cm |
1SAP504100R2001: frequently asked questions
When can 1SAP504100R2001 be shipped?
1SAP504100R2001 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1SAP504100R2001 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1SAP504100R2001 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SAP504100R2001, subject to availability and destination.
