ABB 1SAP460300R0001
S500-XC I/O modules Terminal unit
- MPN
- 1SAP460300R0001
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the ABB 1SAP460300R0001?

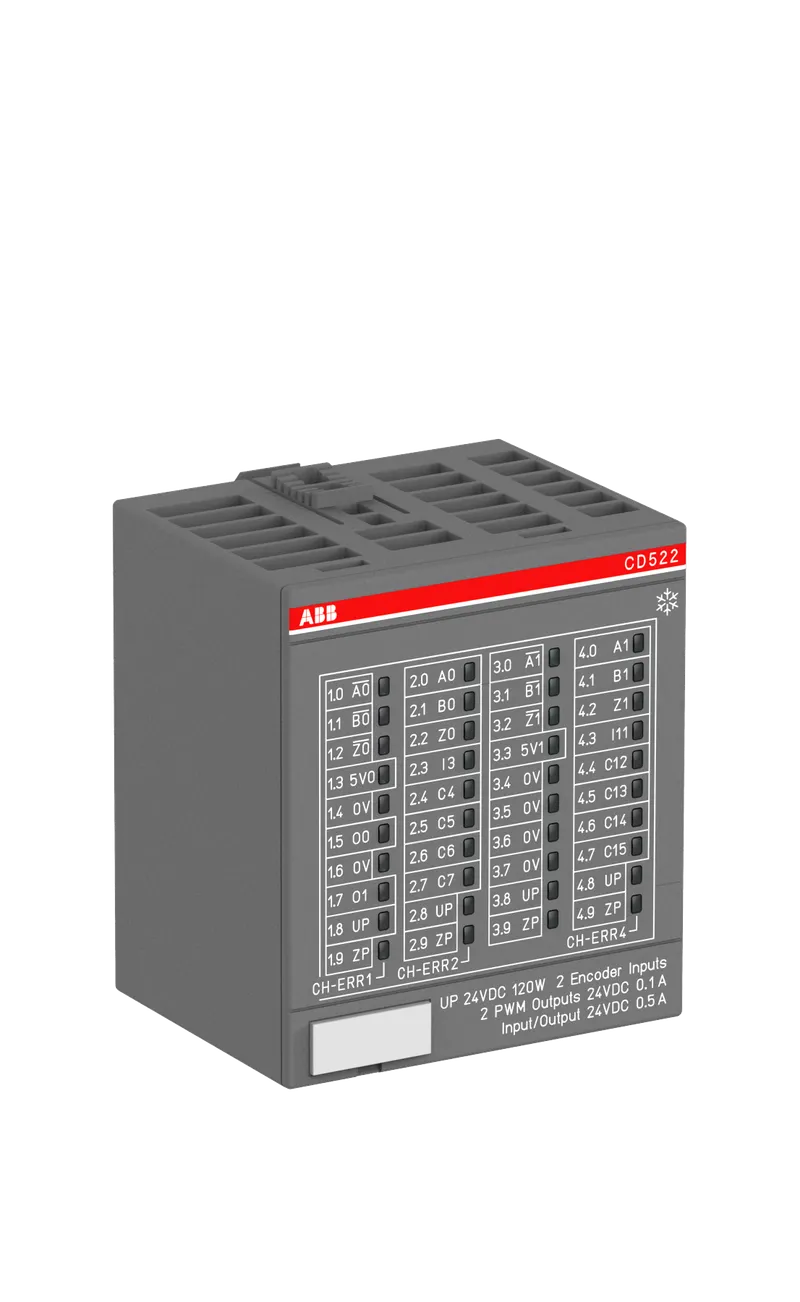

CD522-XC: S500 Function module. 2 encoder inputs. 2 PWM outputs. 2 DI 24VDC. 8 configurable DI/DO 24VDC. eXtreme Conditions
Specifications
Ordering
| CN8 | 85389091 |
| Invoice Description | Function module. 2 encoder inputs. 2 PWM outputs. 2 DI 24VDC. 8 configurable DI/DO 24VDC (CD522-XC) |
| Made To Order | No |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
| Selling Unit of Measure | piece |
Dimensions
| Product Net Weight | 0.125 kg kg |
| Product Net Depth / Length | 62 mm mm |
| Product Net Height | 76 mm mm |
| Product Net Width | 67.5 mm mm |
| Gross Weight | 0.152 kg kg |
| Package Level 1 Depth / Length | 84 mm mm |
| Package Level 1 Height | 72 mm mm |
| Package Level 1 Width | 71 mm mm |
| Package Level 1 Units | 1 carton |
Certificates and Declarations
| Declaration of Conformity - CE | 3ADR980140 |
| REACH Date | 20241206 |
| REACH Declaration | 3ADR980139 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| SCIP | 378d2948-c1f9-4e36-9837-ac77ef17efa1 Germany |
| RoHS Declaration | 3ADR980140 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
Technical
| Function | 2 encoder inputs. 2 PWM outputs. 2 DI 24VDC. 8 configurable DI/DO 24VDC |
| Number of Digital Configurable I/Os | 8 |
| Degree of Protection | IP20 |
| Ambient Air Temperature | Operation -30...+70 °C, Storage -40...+85 °C |
Additional Information
| Product Main Type | CD522 |
| Product Name | Distributed Automation I/Os |
External Classifications and Standards
| eClass | 27-24-22-05 |
| ETIM 8 | EC001422 - PLC function/technology module |
| ETIM 9 | EC001422 - PLC function/technology module |
| ETIM 10 | EC001422 - PLC function/technology module |
| UNSPSC | 32151705 |
Environmental
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) cm |
No matching specifications
1SAP460300R0001: frequently asked questions
When can 1SAP460300R0001 be shipped?
1SAP460300R0001 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1SAP460300R0001 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1SAP460300R0001 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SAP460300R0001, subject to availability and destination.
