ABB 1SAP440600R0001
S500-XC I/O modules Terminal unit
- MPN
- 1SAP440600R0001
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via

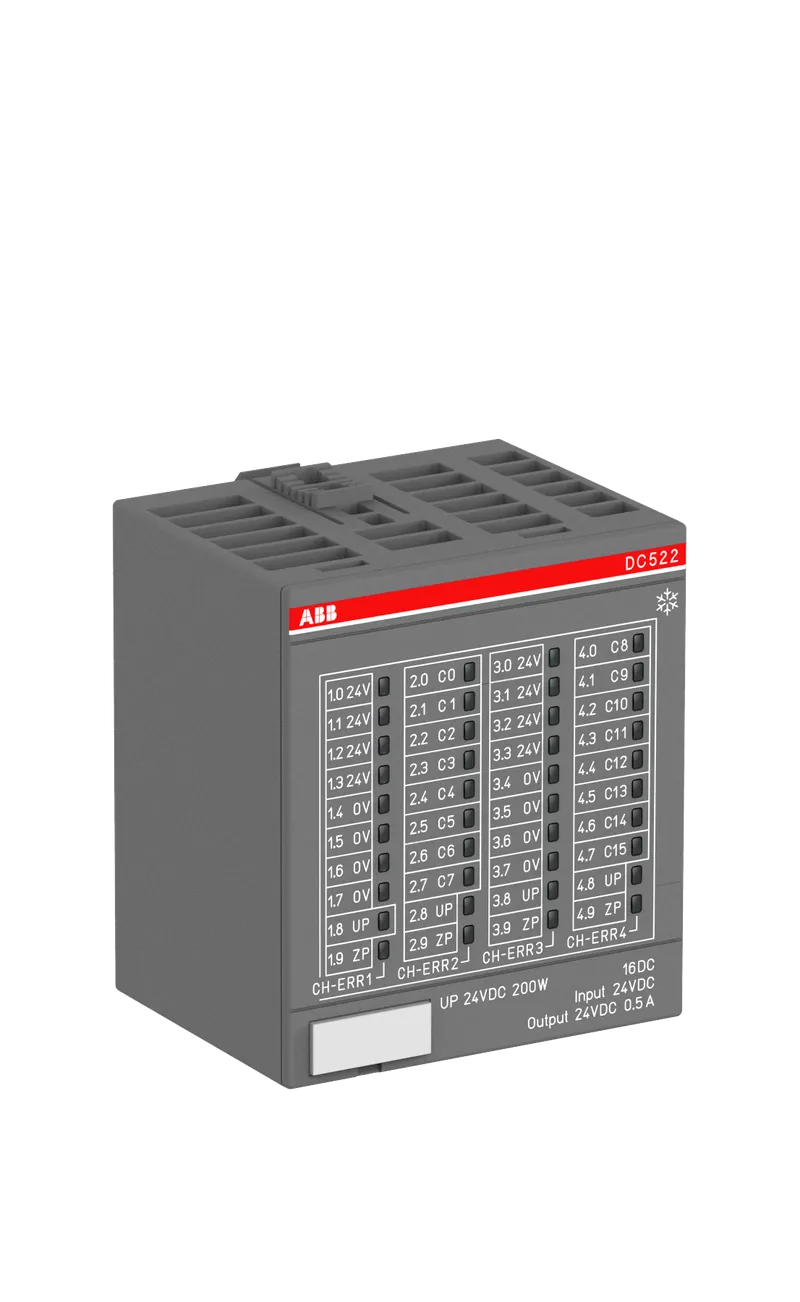

What is the ABB 1SAP440600R0001?
DC522-XC: S500 Digital input/output module. 16 configurable DI/DO: 24VDC 0.5A. 8 aux. terminals 0 V. 8 aux. terminals 24VDC. 2..3 wire. eXtreme Conditions
Specifications
Ordering
| CN8 | 85389091 |
| Invoice Description | Digital input/output module. 16 configurable DI/DO: 24VDC 0.5A. 8 aux. terminals 0 V. 8 aux. terminals 24VDC (DC522-XC) V |
| Made To Order | No |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
| Selling Unit of Measure | piece |
Dimensions
| Product Net Weight | 0.107 kg kg |
| Product Net Depth / Length | 62 mm mm |
| Product Net Height | 76 mm mm |
| Product Net Width | 67.5 mm mm |
| Gross Weight | 0.131 kg kg |
| Package Level 1 Depth / Length | 84 mm mm |
| Package Level 1 Height | 72 mm mm |
| Package Level 1 Width | 71 mm mm |
| Package Level 1 Units | 1 carton |
Certificates and Declarations
| Declaration of Conformity - CE | 3ADR980146 |
| REACH Date | 20241206 |
| REACH Declaration | 3ADR980139 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| SCIP | e5c0fe82-51c2-43af-aa1f-b7ffd1044d99 Germany |
| RoHS Declaration | 3ADR980146 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
Technical
| Function | 16 configurable DI/DO: 24VDC 0.5A. 8 aux. terminals 0 V. 8 aux. terminals 24VDC V |
| Number of Digital Configurable I/Os | 16 |
| Input Voltage Type | DC |
| Input Current | 5 mA |
| Maximum Input Voltage | 0 ... 30 V V |
| Delay Time (τ) | 0.1 … 32 ms |
| Output | Transistor |
| Output Voltage Type | DC |
| Output Current | 0.5 A A |
| Output Voltage Maximum | 20.4 … 28.8 V V |
| Degree of Protection | IP20 |
| Supply Voltage | 20.4 … 28.8 V DC V |
Additional Information
| Product Main Type | DC522 |
| Product Name | Distributed Automation I/Os |
External Classifications and Standards
| eClass | 27-24-22-04 |
| ETIM 8 | EC001419 - PLC digital I/O-module |
| ETIM 9 | EC001419 - PLC digital I/O-module |
| ETIM 10 | EC001419 - PLC digital I/O-module |
| UNSPSC | 32151705 |
Environmental
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) cm |
