Home / ABB / AC500-XC Communication modules / ABB 1SAP370901R0101

ABB

ABB 1SAP370901R0101

CM579-PNIO-XC

MPN: 1SAP370901R0101
Category: AC500-XC Communication modules

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

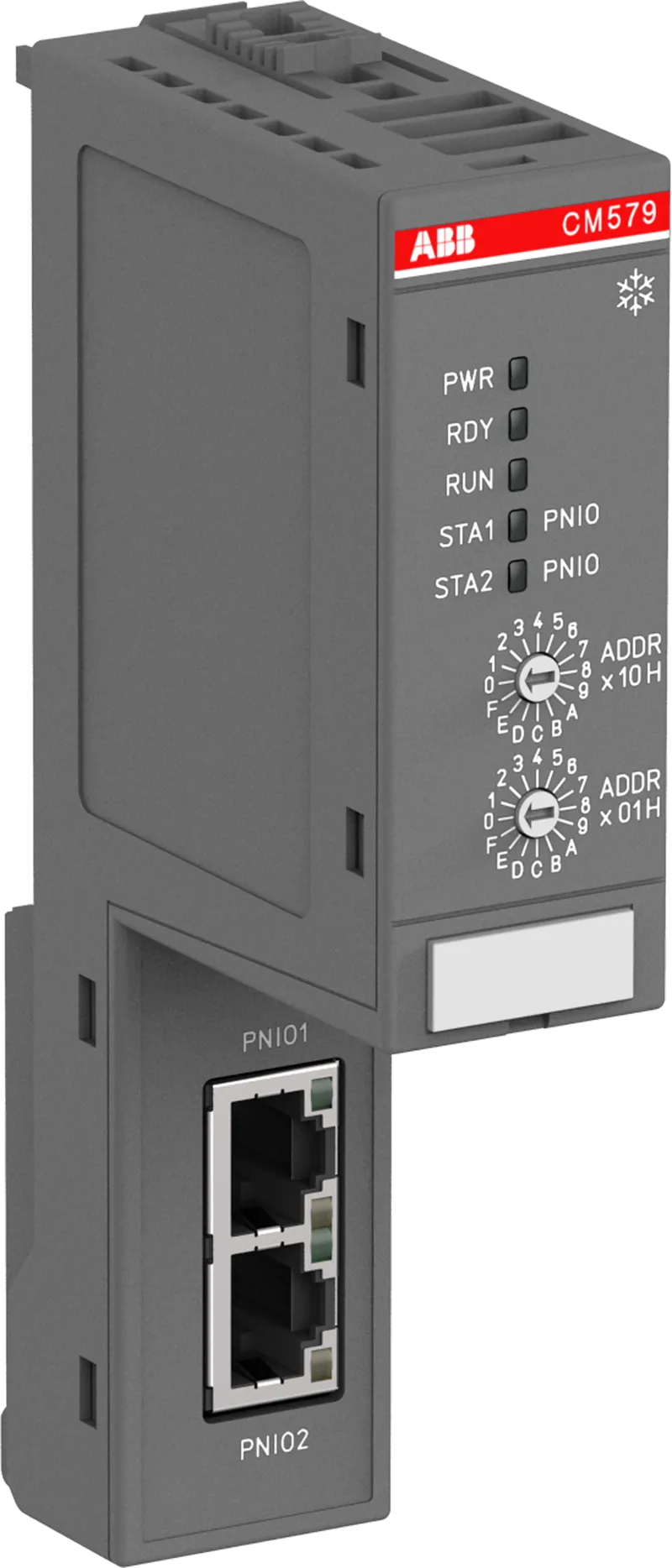

What is the ABB 1SAP370901R0101?

CM579-PNIO-XC: AC500 Communication module. PROFINET IO RT controller. 2 Ethernet interfaces. Switch. eXtreme Conditions

Specifications

Ordering

CN8	85389091
Invoice Description	Communication module. PROFINET IO RT controller (CM579-PNIO-XC)
Made To Order	No
Minimum Order Quantity	1 piece
Order Multiple	1 piece
Selling Unit of Measure	piece

Dimensions

Product Net Weight	0.103 kg kg
Product Net Depth / Length	62 mm mm
Product Net Height	135 mm mm
Product Net Width	28 mm mm
Gross Weight	0.136 kg kg
Package Level 1 Depth / Length	147 mm mm
Package Level 1 Height	40 mm mm
Package Level 1 Width	78 mm mm
Package Level 1 Units	1 carton

Certificates and Declarations

Declaration of Conformity - CE	3ADR980140
REACH Date	20241206
REACH Declaration	3ADR980139
REACH Information	True - contains substances > 0.1 mass percentage
SCIP	f8093605-85df-4448-9a1a-90321a1ff19b Germany
RoHS Declaration	3ADR980140
RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Technical

Function	PROFINET IO RT controller
Communication Interface	Serial
Number of Hardware Interfaces	Industrial Ethernet 2, Other 0, Parallel 0, RS-232 0, RS-422 0, RS-485 0, Serial TTY 0, USB 0, Wireless 0
Data Transmission Rate	100000 kbit/s
Degree of Protection	IP20

Additional Information

Product Main Type	CM579
Product Name	Distributed Automation PLCs

External Classifications and Standards

eClass	27-24-22-08
ETIM 8	EC001423 - PLC communication module
ETIM 9	EC001423 - PLC communication module
ETIM 10	EC001423 - PLC communication module
UNSPSC	32151705

Environmental

WEEE B2C / B2B	Business To Business
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm) cm
