ABB 1SAP340200R0201

MPN: 1SAP340200R0201
Category: AC500-XC CPUs

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

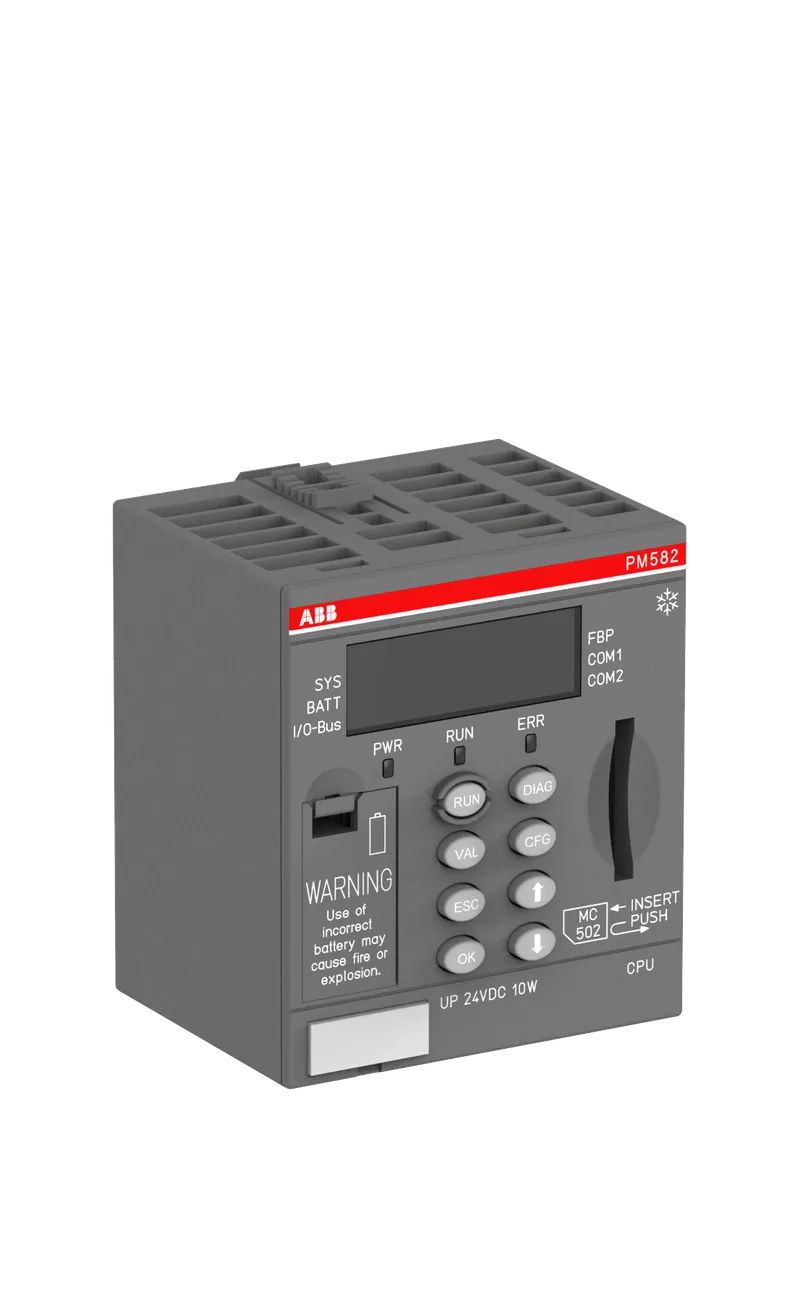

What is the ABB 1SAP340200R0201?

PM582-XC: AC500 Processor module. Memory 512kB. Interfaces: 2x RS232/485, FBP. Display. eXtreme Conditions

Specifications

Ordering

CN8	85389091
Invoice Description	Processor module. Memory 512kB. Interfaces: 2x RS232/485, FBP. Display (PM582-XC)
Made To Order	No
Minimum Order Quantity	1 piece
Order Multiple	1 piece
Selling Unit of Measure	piece

Dimensions

Product Net Weight	0.137 kg kg
Product Net Depth / Length	62 mm mm
Product Net Height	76 mm mm
Product Net Width	67.5 mm mm
Gross Weight	0.161 kg kg
Package Level 1 Depth / Length	84 mm mm
Package Level 1 Height	72 mm mm
Package Level 1 Width	71 mm mm
Package Level 1 Units	1 carton

Certificates and Declarations

Declaration of Conformity - CE	3ADR980140
REACH Date	20241206
REACH Declaration	3ADR980139
REACH Information	True - contains substances > 0.1 mass percentage
SCIP	76f1d654-2319-4b65-a718-8277fd18f7af Germany
RoHS Declaration	3ADR980140
RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Technical

Function	Memory 512kB. Interfaces: 2x RS232/485, FBP. Display
Number of Hardware Interfaces	Industrial Ethernet 0, Other 2, Parallel 0, RS-232 0, RS-422 0, RS-485 0, Serial TTY 0, USB 0, Wireless 0
Memory Size	928 kB
Memory Type User Data	RAM
Controller Processing Time	0.00005 ms
Degree of Protection	IP20
Rated Voltage (Ur)	24 V DC V
Supply Voltage	20.4 … 28.8 V DC V
Ambient Air Temperature	Operation -30...+70 °C, Storage -40...+85 °C

Additional Information

Product Main Type	PM582
Product Name	Distributed Automation PLCs

External Classifications and Standards

eClass	27-24-22-07
ETIM 8	EC000236 - PLC CPU-module
ETIM 9	EC000236 - PLC CPU-module
ETIM 10	EC000236 - PLC CPU-module
UNSPSC	32151705

Environmental

WEEE B2C / B2B	Business To Business
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm) cm
