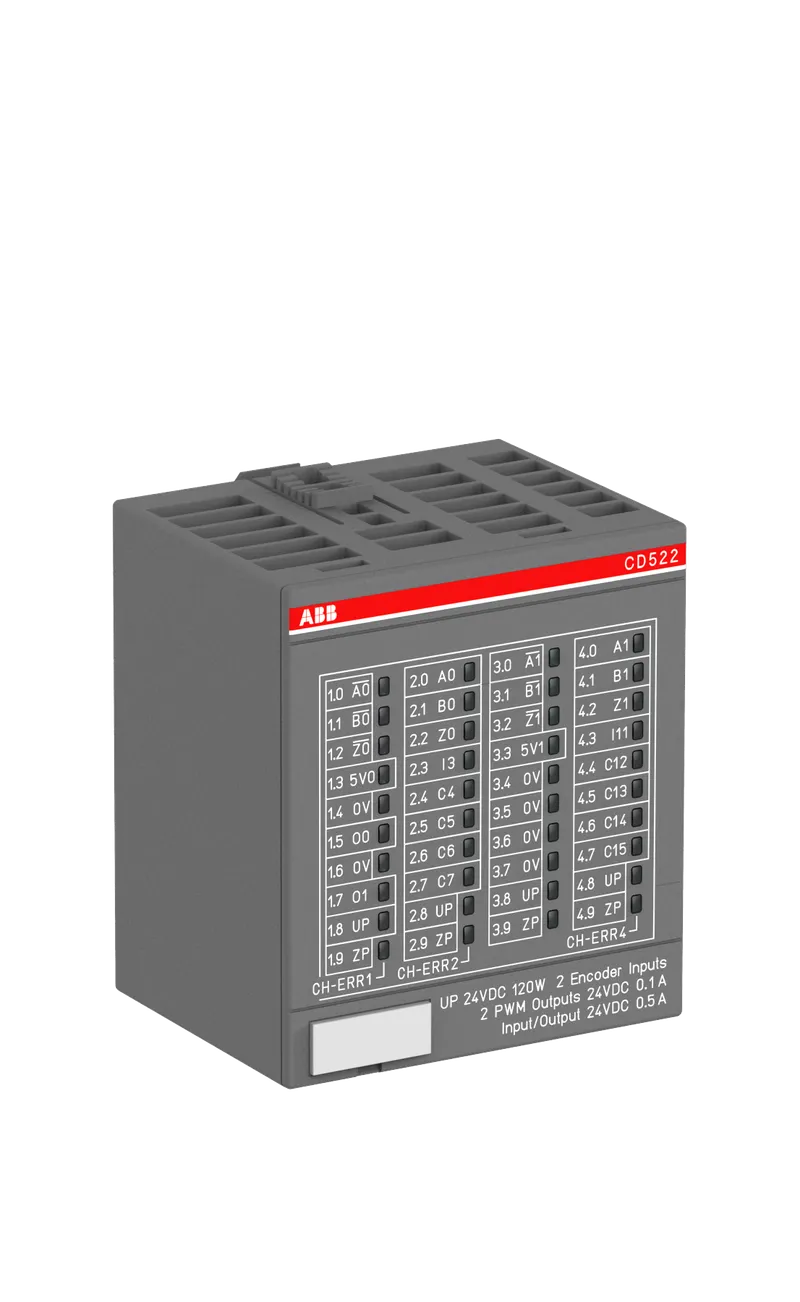

ABB 1SAP260300R0001

S500-eCo I/O module

MPN: 1SAP260300R0001
Category: S500-eCo I/O modules

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 1SAP260300R0001?

CD522: S500 Function module. 2 encoder inputs. 2 PWM outputs. 2 DI 24VDC. 8 configurable DI/DO 24VDC.

Specifications

Ordering

CN8	85389091
Invoice Description	Function module. 2 encoder inputs. 2 PWM outputs. 2 DI 24VDC. 8 configurable DI/DO 24VDC (CD522)
Made To Order	No
Minimum Order Quantity	1 piece
Order Multiple	1 piece
Selling Unit of Measure	piece

Dimensions

Product Net Weight	0.124 kg kg
Product Net Depth / Length	62 mm mm
Product Net Height	76 mm mm
Product Net Width	67.5 mm mm
Gross Weight	0.151 kg kg
Package Level 1 Depth / Length	84 mm mm
Package Level 1 Height	72 mm mm
Package Level 1 Width	71 mm mm
Package Level 1 Units	carton 1 piece

Certificates and Declarations

Declaration of Conformity - CE	3ADR980140
REACH Date	20241206
REACH Declaration	3ADR980139
REACH Information	True - contains substances > 0.1 mass percentage
SCIP	2084bd69-e6ed-40c9-ac25-8cac44e581ca Germany
RoHS Declaration	3ADR980140
RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Technical

Function	2 encoder inputs. 2 PWM outputs. 2 DI 24VDC. 8 configurable DI/DO 24VDC
Number of Digital Configurable I/Os	8
Output Voltage (Uout)	24 V DC V
Output Current	2 A A
Degree of Protection	IP20
Supply Voltage	24 V DC V
Ambient Air Temperature	Operation 0 ... +60 °C, Storage -40 ... +70 °C

Additional Information

Product Main Type	CD522
Product Name	Distributed Automation I/Os

External Classifications and Standards

eClass	27-24-22-05
ETIM 8	EC001422 - PLC function/technology module
ETIM 9	EC001422 - PLC function/technology module
ETIM 10	EC001422 - PLC function/technology module
UNSPSC	32151705

Environmental

WEEE B2C / B2B	Business To Business
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm) cm
