ABB 1SAP245000R0001
S500-eCo I/O module
- MPN
- 1SAP245000R0001
- Category
- S500-eCo I/O modules
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

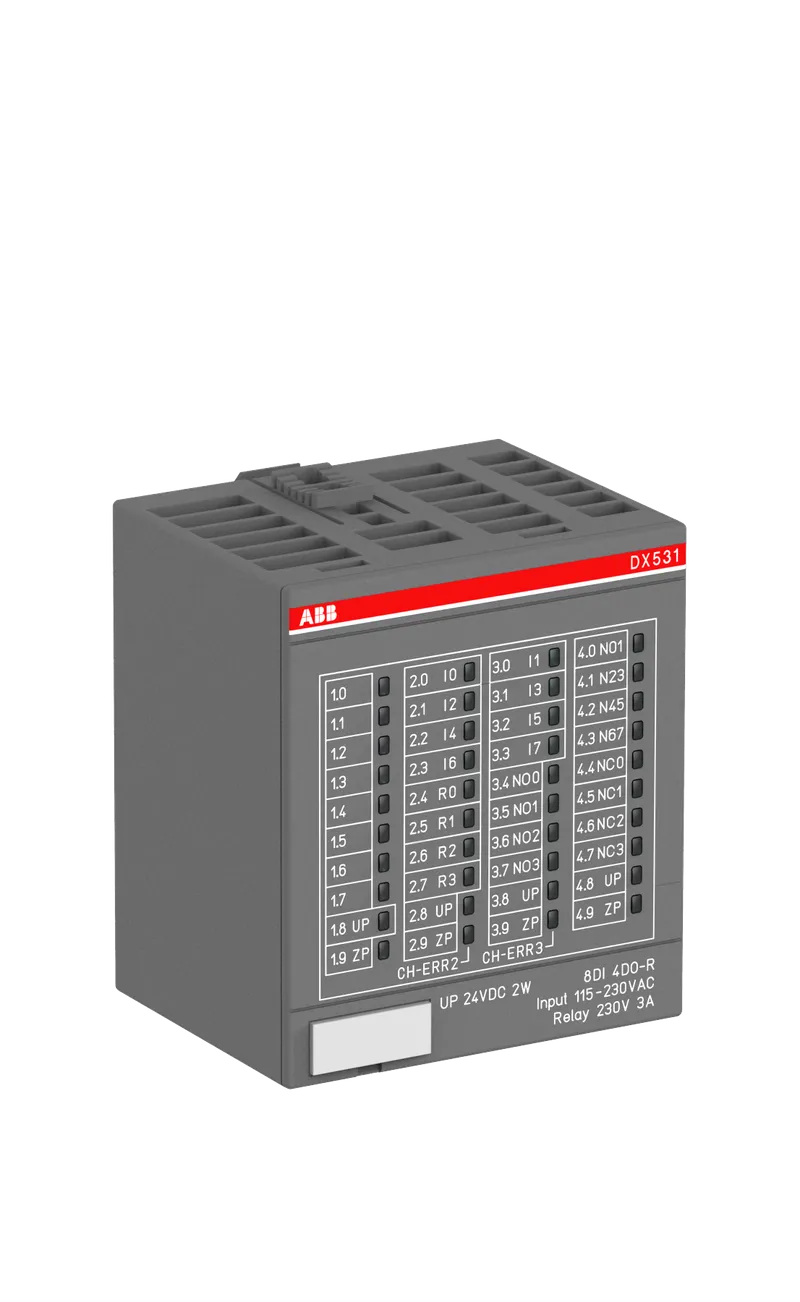

What is the ABB 1SAP245000R0001?
DX531: S500 Digital input/output module. 8 DI: 115..230VAC. 4 DO relay: 230VAC 3A. 2-wire
Specifications
Ordering
| CN8 | 85389091 |
| Invoice Description | Digital input/output module. 8 DI: 115..230VAC. 4 DO relay: 230VAC 3A (DX531) |
| Made To Order | No |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
| Selling Unit of Measure | piece |
Dimensions
| Product Net Weight | 0.151 kg kg |
| Product Net Depth / Length | 62 mm mm |
| Product Net Height | 76 mm mm |
| Product Net Width | 67.5 mm mm |
| Gross Weight | 0.175 kg kg |
| Package Level 1 Depth / Length | 84 mm mm |
| Package Level 1 Height | 72 mm mm |
| Package Level 1 Width | 71 mm mm |
| Package Level 1 Units | 1 carton |
Certificates and Declarations
| Declaration of Conformity - CE | 3ADR980141 |
| REACH Date | 20241206 |
| REACH Declaration | 3ADR980139 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| SCIP | c9bf362a-cc21-47fa-8a05-4084ee252c86 Germany |
| RoHS Declaration | 3ADR980141 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
Technical
| Function | 8 DI: 115..230VAC. 4 DO relay: 230VAC 3A |
| Number of Digital Inputs | 8 |
| Number of Digital Outputs | 4 |
| Input Voltage Type | AC |
| Maximum Input Voltage | 0 ... 265 V V |
| Delay Time (τ) | 20 … 20 ms |
| Output | Relay |
| Output Voltage Type | AC |
| Output Voltage (Uout) | 24 ... 230 V AC/DC V |
| Output Current | 3 A A |
| Output Voltage Maximum | 195.5 … 276 V V |
| Degree of Protection | IP20 |
| Supply Voltage | 20.4 … 28.8 V DC V |
| Ambient Air Temperature | Operation 0 ... +60 °C, Storage -40 ... +70 °C |
Additional Information
| Product Main Type | DX531 |
| Product Name | Distributed Automation I/Os |
External Classifications and Standards
| eClass | 27-24-22-04 |
| ETIM 8 | EC001419 - PLC digital I/O-module |
| ETIM 9 | EC001419 - PLC digital I/O-module |
| ETIM 10 | EC001419 - PLC digital I/O-module |
| UNSPSC | 32151705 |
Environmental
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) cm |
1SAP245000R0001: frequently asked questions
When can 1SAP245000R0001 be shipped?
1SAP245000R0001 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1SAP245000R0001 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1SAP245000R0001 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SAP245000R0001, subject to availability and destination.
