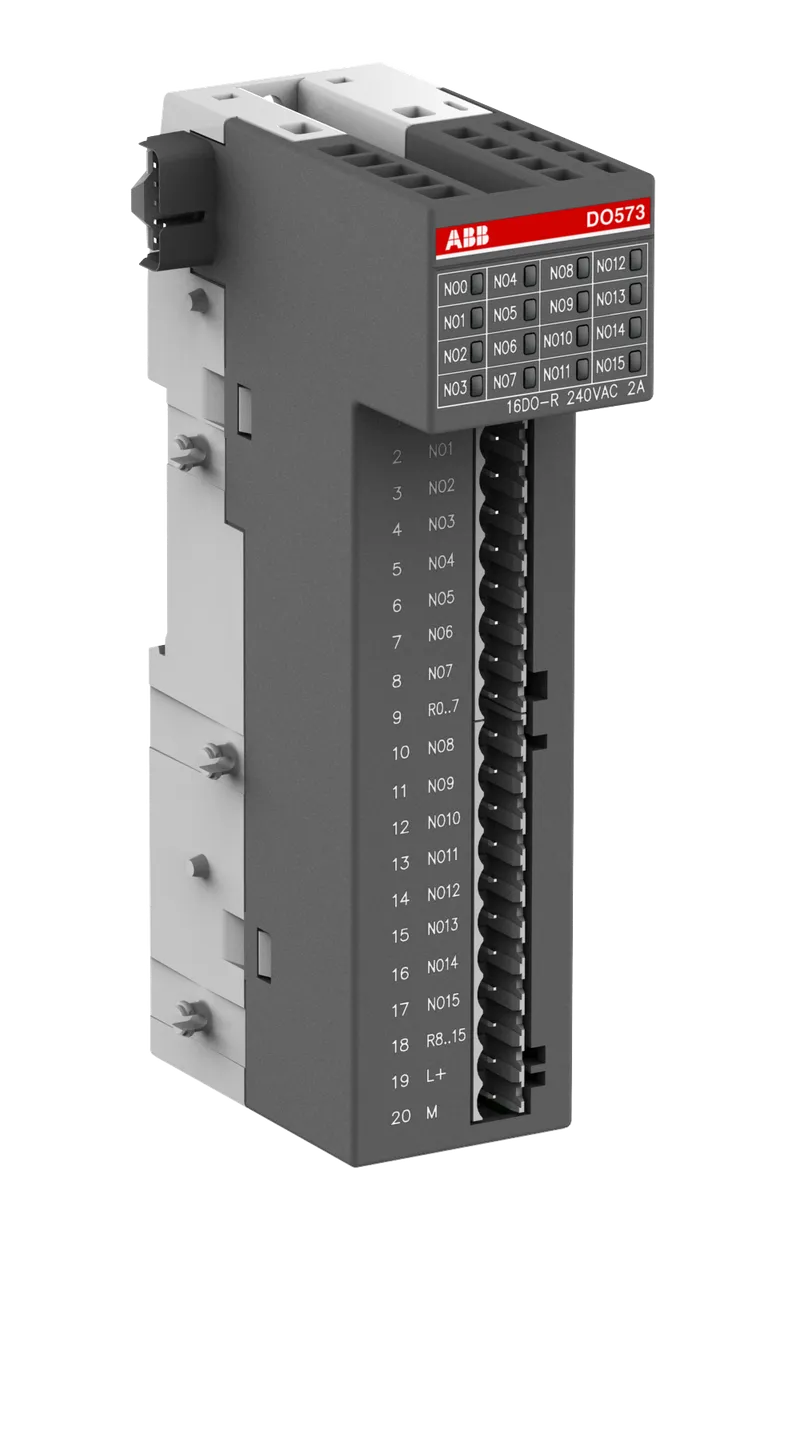

ABB 1SAP231300R0000
S500-eCo I/O module
- MPN
- 1SAP231300R0000
- Category
- S500-eCo I/O modules
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the ABB 1SAP231300R0000?
DO573: S500-eCo Digital output module. 16 DO relay: 24VDC/24VAC or 100..240VAC 2A.
Specifications
Ordering
| CN8 | 85371091 |
| Invoice Description | Digital output module. 16 DO relay: 24VDC/24VAC or 100..240VAC 2A (DO573) |
| Made To Order | No |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
| Selling Unit of Measure | piece |
Dimensions
| Product Net Weight | 0.19 kg kg |
| Product Net Depth / Length | 75 mm mm |
| Product Net Height | 135 mm mm |
| Product Net Width | 34 mm mm |
| Gross Weight | 0.259 kg kg |
| Package Level 1 Depth / Length | 93 mm mm |
| Package Level 1 Height | 63 mm mm |
| Package Level 1 Width | 170 mm mm |
| Package Level 1 Units | 1 carton |
Certificates and Declarations
| Declaration of Conformity - CE | 3AXD10002007200 |
| REACH Date | 20241206 |
| REACH Declaration | 3ADR980139 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| SCIP | a96337f4-6c33-438f-935e-0358f18df09c Germany |
| RoHS Declaration | 3AXD10002007200 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
Technical
| Function | 16 DO relay: 24VDC/24VAC or 100..240VAC 2A |
| Number of Digital Outputs | 16 |
| Output | Relay |
| Output Voltage Type | AC |
| Output Current | 2 A A |
| Output Voltage Maximum | 195.5 ... 276 V V |
| Connection Type | Pluggable |
| Degree of Protection | IP20 |
| Supply Voltage | 20.4 … 28.8 V DC V |
Additional Information
| Product Main Type | DO573 |
| Product Name | Distributed Automation PLCs |
External Classifications and Standards
| eClass | 27-24-22-04 |
| ETIM 8 | EC001419 - PLC digital I/O-module |
| ETIM 9 | EC001419 - PLC digital I/O-module |
| ETIM 10 | EC001419 - PLC digital I/O-module |
| UNSPSC | 32151705 |
Environmental
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) cm |
