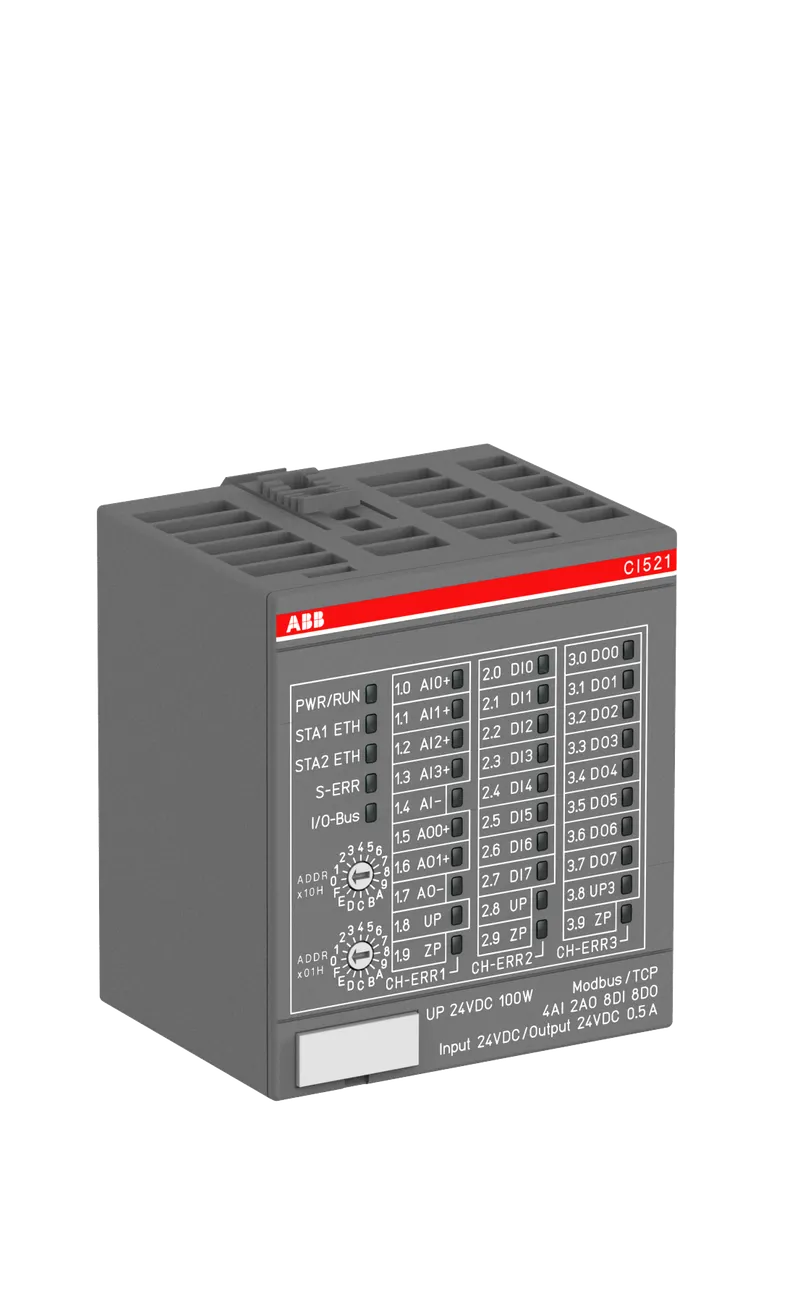

ABB 1SAP222100R0001

CI521-MODTCP

MPN: 1SAP222100R0001
Category: S500 I/O Interface modules

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

What is the ABB 1SAP222100R0001?

CI521-MODTCP: S500 Interface module. Modbus TCP server. 4 AI: U, I, RTD. 2 AO: U, I. 8 DI: 24VDC. 8 DO: 24VDC 0.5A. Extendable by up to 10 I/O modules.

Specifications

Ordering

CN8	85389091
Invoice Description	Interface module. Modbus TCP server. 4 AI: U, I, RTD. 2 AO: U, I. 8 DI: 24VDC. 8 DO: 24VDC 0.5A (CI521-MODTCP)
Made To Order	No
Minimum Order Quantity	1 piece
Order Multiple	1 piece
Selling Unit of Measure	piece

Dimensions

Product Net Weight	0.136 kg kg
Product Net Depth / Length	62 mm mm
Product Net Height	76 mm mm
Product Net Width	67.5 mm mm
Gross Weight	0.159 kg kg
Package Level 1 Depth / Length	84 mm mm
Package Level 1 Height	72 mm mm
Package Level 1 Width	71 mm mm
Package Level 1 Units	1 carton

Certificates and Declarations

Declaration of Conformity - CE	3ADR980140
REACH Date	20241206
REACH Declaration	3ADR980139
REACH Information	True - contains substances > 0.1 mass percentage
SCIP	efc8d8ea-3ef4-48b2-b474-318eb4321719 Germany
RoHS Declaration	3ADR980140
RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Technical

Function	Modbus TCP server. 4 AI: U, I, RTD. 2 AO: U, I. 8 DI: 24VDC. 8 DO: 24VDC 0.5A
Number of Hardware Interfaces	Industrial Ethernet 0, Other 0, Parallel 0, RS-232 0, RS-422 0, RS-485 0, Serial TTY 0, USB 0, Wireless 0
Analog Inputs	4
Analog Outputs	2
Number of Digital Inputs	8
Number of Digital Outputs	8
Input Voltage Type	DC
Input Voltage (Uin)	24 V DC V
Input Current	5 mA
Delay Time (τ)	0.1 … 32 ms
Output	Transistor
Output Voltage Type	DC
Output Current	0.5 A A
Output Voltage Maximum	20.4 … 28.8 V V
Degree of Protection	IP20
Supply Voltage	20.4 ... 28.8 V DC V

Additional Information

Product Main Type	CI521
Product Name	Distributed Automation I/Os

External Classifications and Standards

eClass	27-24-26-07
ETIM 8	EC001604 - Fieldbus, decentr. periphery - communication module
ETIM 9	EC001604 - Fieldbus, decentr. periphery - communication module
ETIM 10	EC001604 - Fieldbus, decentr. periphery - communication module
UNSPSC	32151705

Environmental

WEEE B2C / B2B	Business To Business
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm) cm
