What is the ABB 1SAP187100R0003?

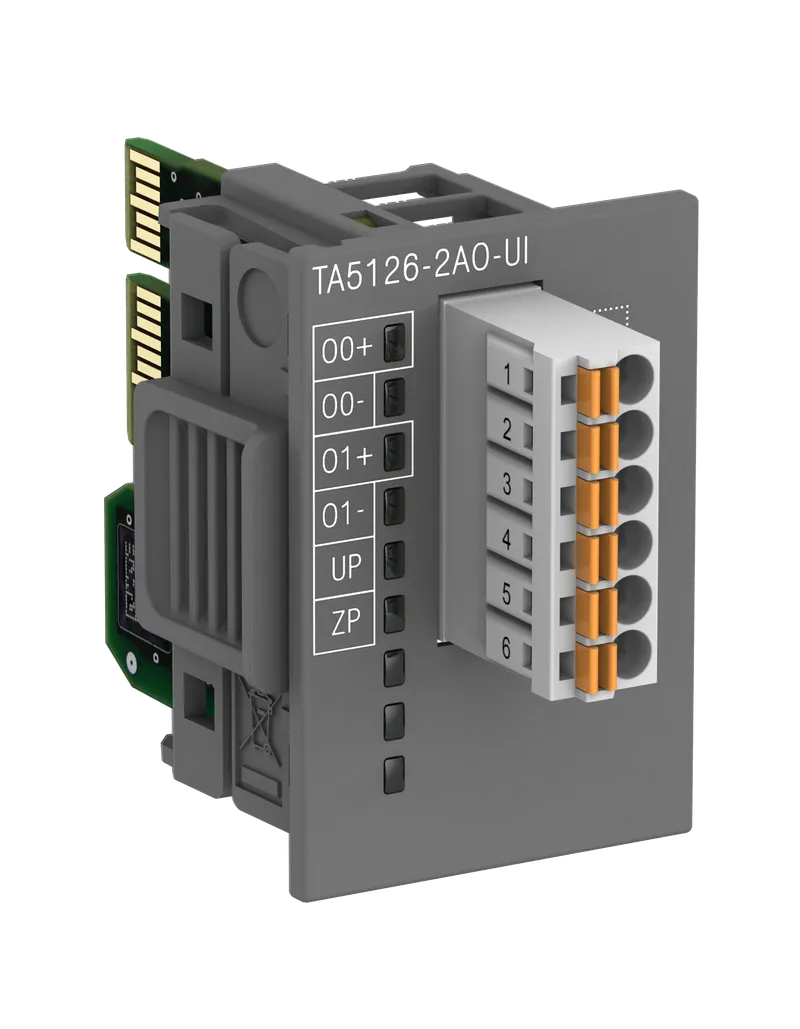

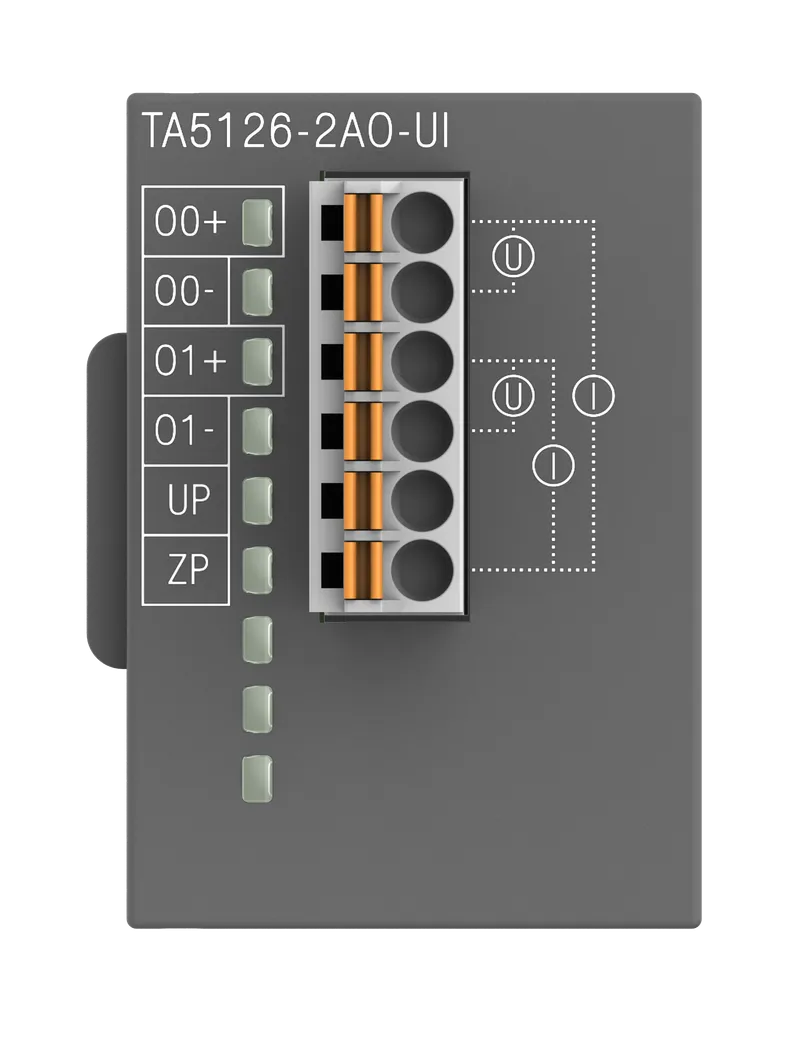

TA5126-2AO-UI: AC500-eCo Analog output option board. 2 AO: U, I. 12 Bit. Spring terminals included.

Specifications

Ordering

CN8	85389091
Invoice Description	Analog output option board. 2 AO: U, I. 12 Bit. Spring terminals included (TA5126-2AO-UI)
Made To Order	No
Minimum Order Quantity	1 piece
Order Multiple	1 piece
Selling Unit of Measure	piece

Dimensions

Product Net Weight	0.019 kg kg
Product Net Depth / Length	54.2 mm mm
Product Net Height	42 mm mm
Product Net Width	28.5 mm mm
Gross Weight	0.035 kg kg
Package Level 1 Depth / Length	70 mm mm
Package Level 1 Height	50 mm mm
Package Level 1 Width	40 mm mm
Package Level 1 Units	1 carton

Certificates and Declarations

Declaration of Conformity - CE	3ADR980147
REACH Date	20241206
REACH Declaration	3ADR980139
REACH Information	True - contains substances > 0.1 mass percentage
SCIP	8c469c89-ec65-4eb1-941e-f44457f50086 Germany
RoHS Declaration	3ADR980147
RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Technical

Function	2 AO: U, I. 12 Bit. Spring terminals included
Analog Outputs	2
Output Signal	U, I
Resolution	Analog Output 12 bit
Degree of Protection	Housing IP20

Additional Information

Product Main Type	TA5126
Product Name	Distributed Automation PLCs

External Classifications and Standards

eClass	27-24-22-92
ETIM 8	EC001420 - PLC analogue I/O-module
ETIM 9	EC001420 - PLC analogue I/O-module
ETIM 10	EC001420 - PLC analogue I/O-module
UNSPSC	32151705

Environmental

WEEE B2C / B2B	Business To Business
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm) cm
