ABB 1SAP187000R0001
AC500-eCo Accessory
- MPN
- 1SAP187000R0001
- Category
- AC500-eCo Accessories
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the ABB 1SAP187000R0001?

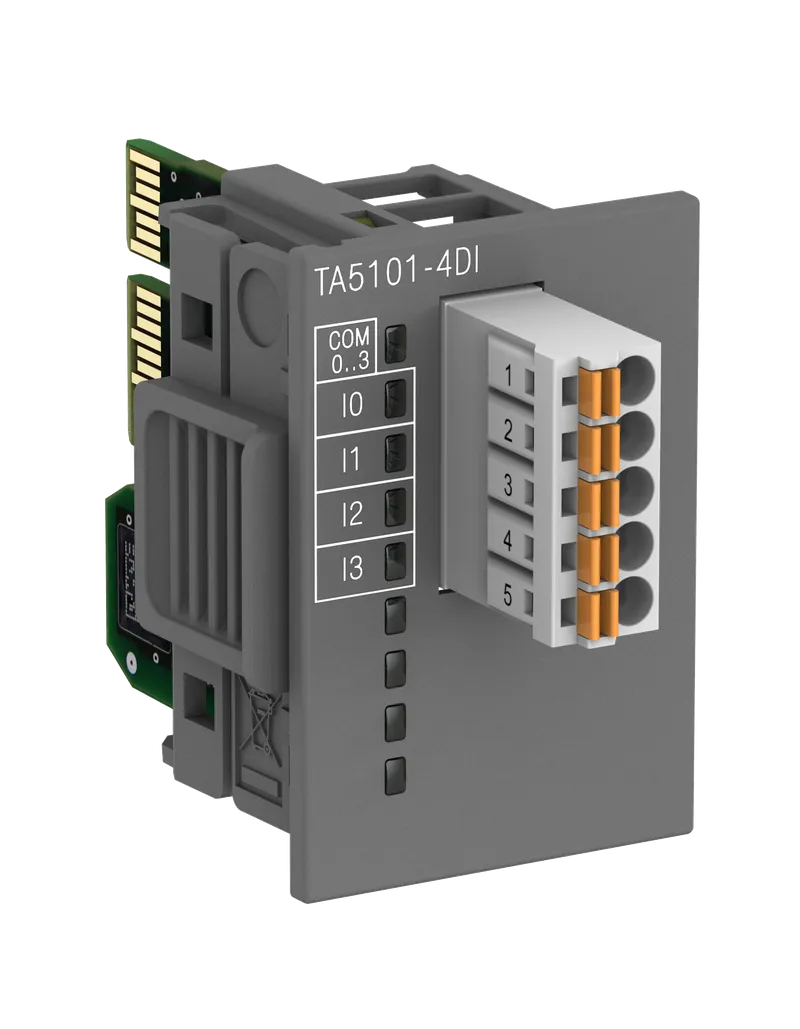

TA5101-4DI: AC500-eCo Digital input option board. 4 DI: 24VDC. Spring terminals included.
Specifications
Ordering
| CN8 | 85389091 |
| Invoice Description | Digital input option board. 4 DI: 24VDC. Spring terminals included (TA5101-4DI) |
| Made To Order | No |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
| Selling Unit of Measure | piece |
Dimensions
| Product Net Weight | 0.015 kg kg |
| Product Net Depth / Length | 54.2 mm mm |
| Product Net Height | 42 mm mm |
| Product Net Width | 28.5 mm mm |
| Gross Weight | 0.032 kg kg |
| Package Level 1 Depth / Length | 70 mm mm |
| Package Level 1 Height | 50 mm mm |
| Package Level 1 Width | 40 mm mm |
| Package Level 1 Units | 1 carton |
Certificates and Declarations
| Declaration of Conformity - CE | 3ADR980147 |
| REACH Date | 20241206 |
| REACH Declaration | 3ADR980139 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| RoHS Declaration | 3ADR980147 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
Technical
| Function | 4 DI: 24VDC. Spring terminals included |
| Number of Digital Inputs | 4 |
| Input Voltage Type | DC |
| Input Current | 5 mA |
| Maximum Input Voltage | 0 ... 30 V V |
| Delay Time (τ) | 4 … 8 ms |
| Degree of Protection | IP20 |
Additional Information
| Product Main Type | TA5101 |
| Product Name | Distributed Automation PLCs |
External Classifications and Standards
| eClass | 27-24-22-92 |
| ETIM 8 | EC001419 - PLC digital I/O-module |
| ETIM 9 | EC001419 - PLC digital I/O-module |
| ETIM 10 | EC001419 - PLC digital I/O-module |
| UNSPSC | 32151705 |
Environmental
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) cm |
