TA521
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | AC500 Accessories |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.01 kg |
Shipping & availability
When can 1SAP180300R0001 be shipped?
1SAP180300R0001 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1SAP180300R0001 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1SAP180300R0001 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SAP180300R0001, subject to availability and destination.

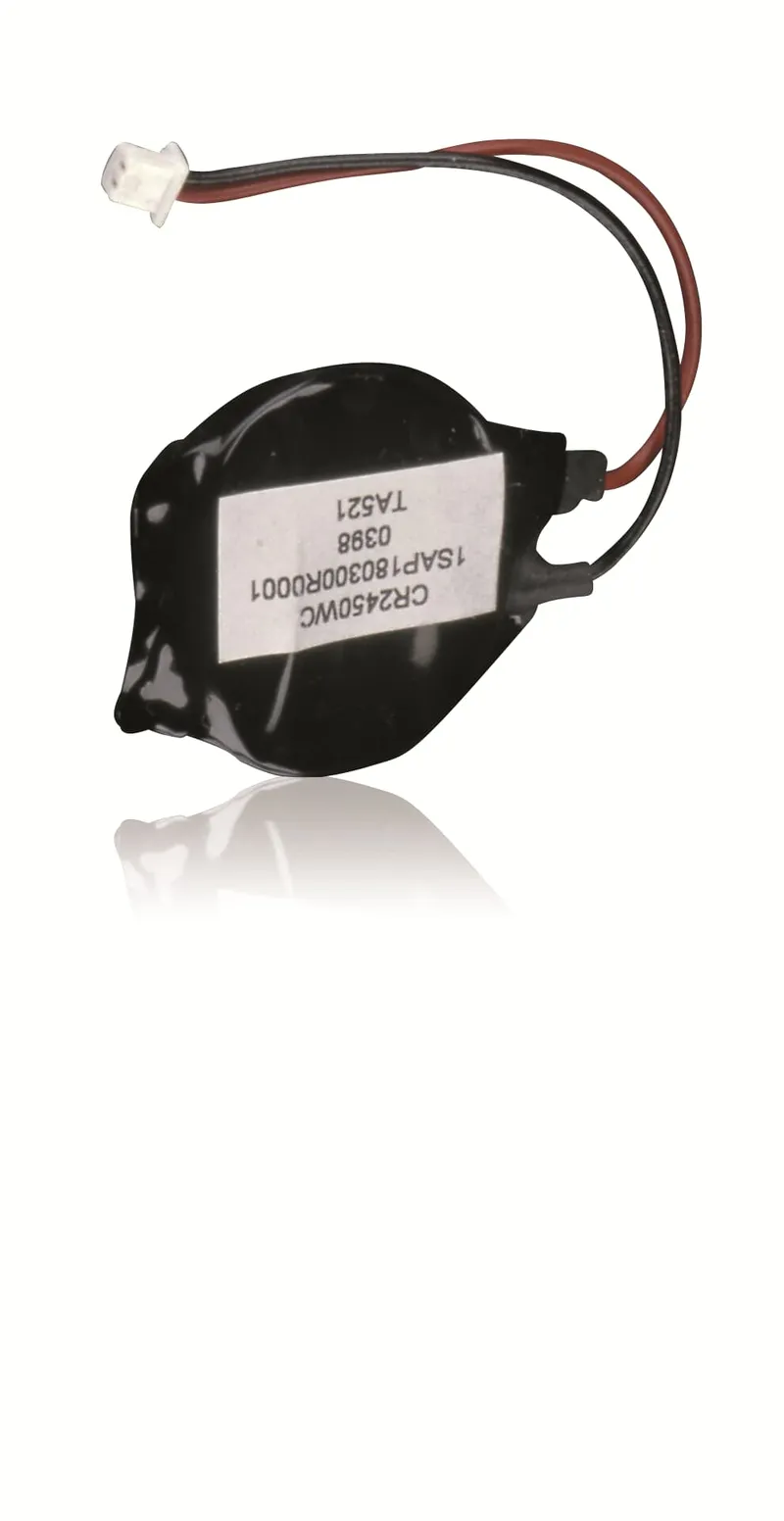

TA521: AC500, adapter cable with encapsulated lithium primary button cell CR2450 to supply the remanent memory and the real-time clock of a CPU PM57x, PM58x, PM59x, (not PM 595) or PM56xx.
Specifications
Ordering
| CN8 | 85065030 |
| Invoice Description | Adapter cable with encapsulated button cell CR2450 for AC500 V2 CPU PM57x, PM58x, PM59x (not PM595) and AC500 V3 CPU PM56xx (TA521) |
| Made To Order | No |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
| Selling Unit of Measure | piece |
| Dangerous Goods UN Classification | Class 9: Miscellaneous Dangerous Substances and Articles, Including Environmentally Hazardous Substances |
| Dangerous Goods UN Number | UN3090 |
Dimensions
| Product Net Weight | 0.009 kg kg |
| Product Net Depth / Length | 8 mm mm |
| Product Net Height | 170 mm mm |
| Product Net Width | 100 mm mm |
| Gross Weight | 0.014 kg kg |
| Package Level 1 Units | 1 bag |
Certificates and Declarations
| Declaration of Conformity - CE | 3ADR980132 |
| REACH Date | 20241206 |
| REACH Declaration | 3ADR980139 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| RoHS Declaration | 1SAA960005-4500 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
Technical
| Function | Lithium button cell for PM5xx and PM56xx |
| Degree of Protection | IP20 |
| Accessory Type | Electrical: Battery/accumulator |
| Ambient Air Temperature | Operation 0 ... +60 °C, Storage -20 ... +60 °C |
Additional Information
| Product Main Type | TA521 |
| Product Name | TA521:AC500,Lithium button cell Set |
External Classifications and Standards
| eClass | 27-24-22-92 |
| ETIM 8 | EC002584 - Accessories/spare parts for controls |
| ETIM 9 | EC002584 - Accessories/spare parts for controls |
| ETIM 10 | EC002584 - Accessories/spare parts for controls |
| UNSPSC | 32151703 |
Environmental
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) cm |
| Battery Chemical Composition | Lithium Metal |
