ABB 1SAP112100R0260
TB521-ARCNET
- MPN
- 1SAP112100R0260
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the ABB 1SAP112100R0260?

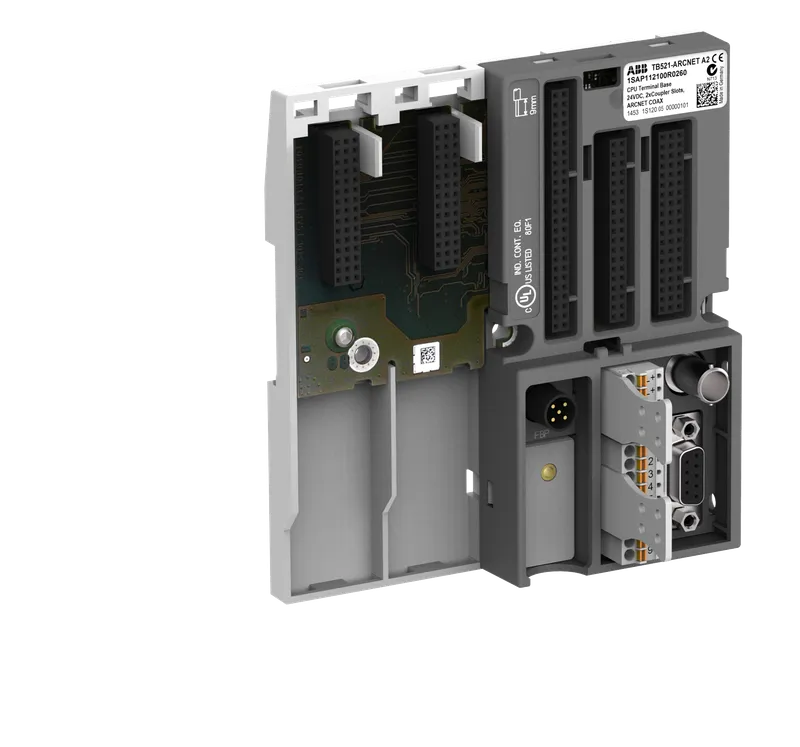

TB521-ARCNET: AC500 Terminal base. For AC500 V2. 2 slots for communication module. ARCNET interface. 2 serial interfaces RS232/RS485.
Specifications
Ordering
| CN8 | 85389091 |
| Invoice Description | Terminal base. For AC500 V2. 2 slots for communication module. ARCNET interface. 2 serial interfaces RS232/RS485 (TB521-ARCNET) |
| Made To Order | No |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
| Selling Unit of Measure | piece |
Dimensions
| Product Net Weight | 0.187 kg kg |
| Product Net Depth / Length | 28 mm mm |
| Product Net Height | 135 mm mm |
| Product Net Width | 123.5 mm mm |
| Gross Weight | 0.246 kg kg |
| Package Level 1 Depth / Length | 147 mm mm |
| Package Level 1 Height | 40 mm mm |
| Package Level 1 Width | 131 mm mm |
| Package Level 1 Units | 1 carton |
Certificates and Declarations
| Declaration of Conformity - CE | 3ADR980140 |
| REACH Date | 20241206 |
| REACH Declaration | 3ADR980139 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| SCIP | c171af37-8456-4dee-b15c-03da3448dd42 Germany |
| RoHS Declaration | 3ADR980140 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
Technical
| Function | For AC500 V2. 2 slots for communication module. ARCNET interface. 2 serial interfaces RS232/RS485 |
| Communication Interface | D-SUB/Coax/Terminals |
| Input Voltage Type | DC |
| Degree of Protection | IP20 |
| Supply Voltage | 24 V DC V |
| Ambient Air Temperature | Operation 0 ... +60 °C, Storage -40 ... +70 °C |
Additional Information
| Product Main Type | TB521 |
| Product Name | Distributed Automation PLCs |
External Classifications and Standards
| eClass | 27-24-22-92 |
| ETIM 8 | EC000810 - PLC mounting rack |
| ETIM 9 | EC000810 - PLC mounting rack |
| ETIM 10 | EC000810 - PLC mounting rack |
| UNSPSC | 32151703 |
Environmental
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) cm |
1SAP112100R0260: frequently asked questions
When can 1SAP112100R0260 be shipped?
1SAP112100R0260 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1SAP112100R0260 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1SAP112100R0260 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SAP112100R0260, subject to availability and destination.
