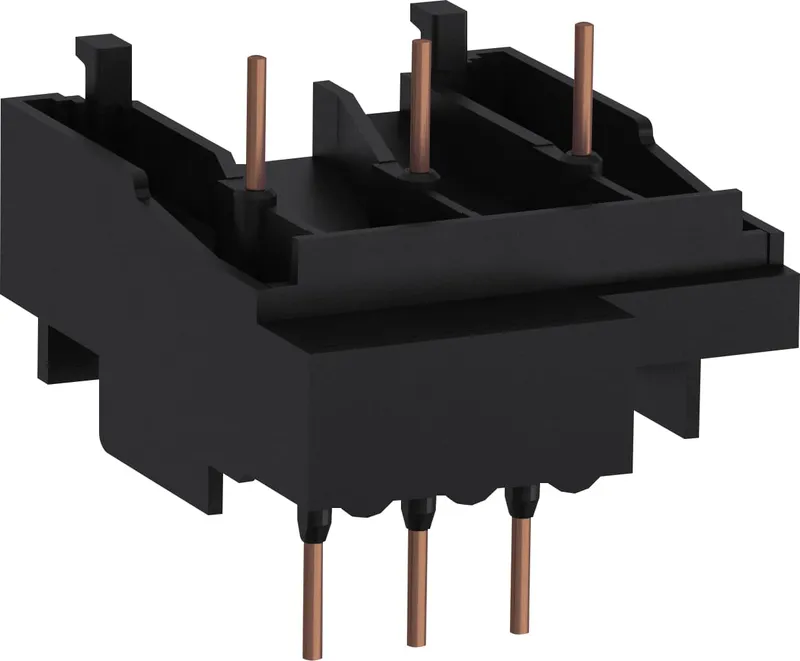

ABB 1SAM301920R1001 – BEMC/132 Connecting Link for MS116 / MS132 + MC
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | ABB Mini Contactors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.021 kg |
| UPC / EAN | 4013614559150 |
Shipping & availability
When can 1SAM301920R1001 be shipped?
1SAM301920R1001 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1SAM301920R1001 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1SAM301920R1001 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SAM301920R1001, subject to availability and destination.
The BEMC/132 is the connection link to be used for creating compact motor starting and protection solutions using MS116, MS/MO132, MS132-T, MS/MO132-B manual motor starters in combination with MC1 and MC2 mini contactors
Specifications
General
| Order code (ABB product ID) | 1SAM301920R1001 |
| Type | BEMC/132 |
| Lifecycle | Active (current ABB product) |
Ordering
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
Dimensions
| Product Net Width | 45 mm |
| Product Net Depth / Length | 58.2 mm |
| Product Net Height | 23.7 mm |
| Product Net Weight | 0.021 kg |
Technical
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1 |
| Rated Operational Voltage | 690 V AC |
| Rated Insulation Voltage (U<sub>i</sub>) | 690 V |
| Terminal Type | Screw Terminals |
| Suitable For | MC1, MC2 equipped with Screw terminals |
| Suitable for Product Class | Mini Contactors |
| Product Name | Connecting Link |
Technical UL/CSA
| Maximum Operating Voltage UL/CSA | 600 V AC |
Material Compliance
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards
| Object Classification Code | X |
| ETIM 7 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| eClass | V11.0 : 27371392 |
Downloads & documentation
Official documents from ABB, downloaded directly from the manufacturer.
Data sheets & manuals
| Data Sheet, Technical Information (1SBC100214C0202) | |
| Instructions and Manuals (1SAC200030I0002) |
CAD & dimension drawings
| CAD Dimensional Drawing (2CDC001079B0201) |
