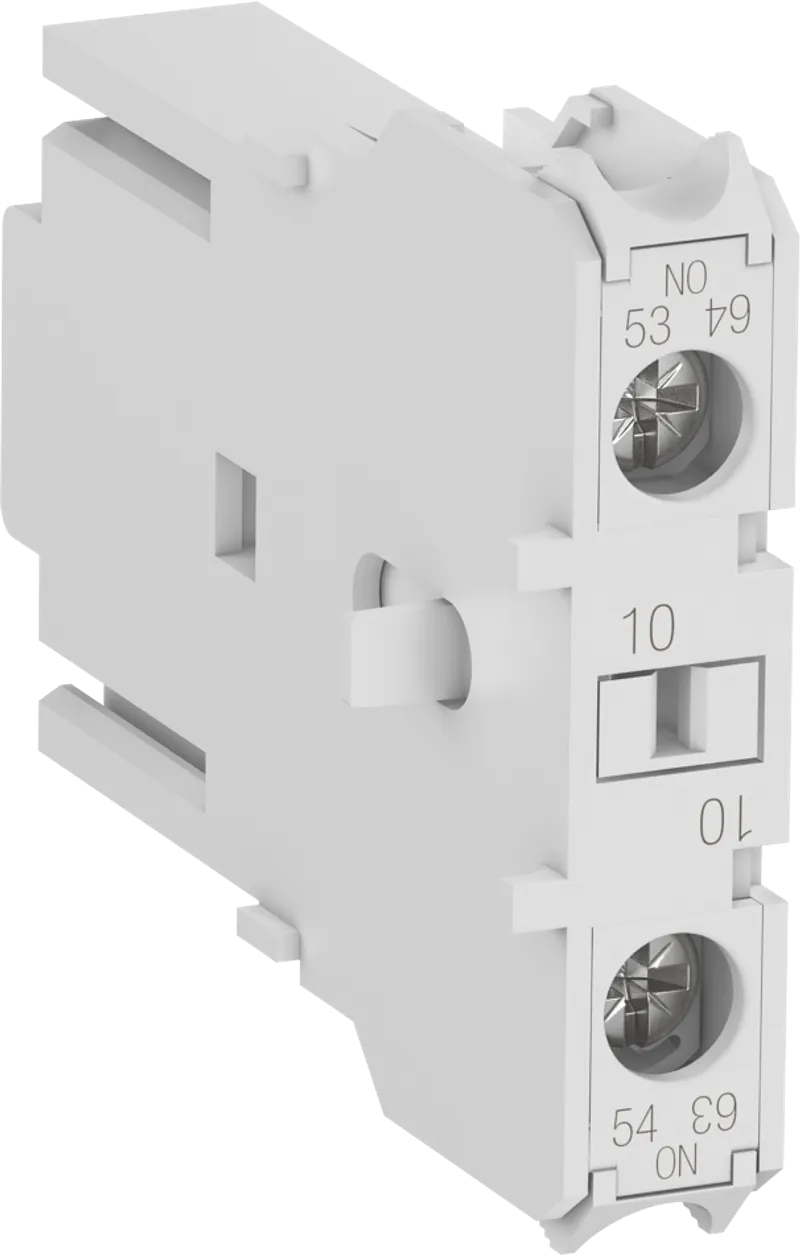

ABB 1SAL103299R9906 – MARL110ARS Auxiliary Contact 1NO ring tongue terminal, side mounted

MPN: 1SAL103299R9906 · Brand: ABB

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	ABB Mini Contactors
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.017 kg
UPC / EAN	4013614550461

Shipping & availability

When can 1SAL103299R9906 be shipped?

1SAL103299R9906 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1SAL103299R9906 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1SAL103299R9906 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SAL103299R9906, subject to availability and destination.

The MARL110ARS is an auxiliary contact for side mounting with 1NO contact and ring tongue terminals. Auxiliary contacts are used for the operation of auxiliary circuits and control circuits. The auxiliary contact meets the requirements of EN 50005.

Specifications

General

Order code (ABB product ID)	1SAL103299R9906
Type	MARL110ARS
Lifecycle	Active (current ABB product)

Ordering

Minimum Order Quantity	1 piece
Customs Tariff Number	85365080

Dimensions

Product Net Width	9.8 mm
Product Net Depth / Length	56 mm
Product Net Height	42.5 mm
Product Net Weight	0.017 kg

Technical

Number of Main Contacts NO	0
Number of Main Contacts NC	0
Number of Auxiliary Contacts NO	1
Number of Auxiliary Contacts NC	0
Number of Poles	1P
Standards	IEC/EN 60947-1, IEC/EN 60947-5-1, UL 60947-1, UL 60947-5-1
Rated Operational Voltage	Auxiliary Circuit 690 V AC, Auxiliary Circuit 440 V DC
Rated Frequency (f)	Auxiliary Circuit 50 Hz, Auxiliary Circuit 60 Hz, Auxiliary Circuit DC
Conventional Free-air Thermal Current (I<sub>th</sub>)	Auxiliary Circuit 10 A
Rated Operational Current AC-15 (I<sub>e</sub>)	(240 V) 6 A, (400 V) 4 A, (500 V) 2.5 A, (690 V) 1.5 A
Rated Insulation Voltage (U<sub>i</sub>)	750 V
Rated Impulse Withstand Voltage (U<sub>imp</sub>)	Auxiliary Circuit 6 kV
Maximum Electrical Switching Frequency	(AC-15) 360 cycles per hour, (DC-13) 360 cycles per hour
Minimum Switching Capacity	> 17 V, > 5 mA
Power Loss	at Rated Operating Conditions per Pole 0.4 W, at Rated Operating Conditions AC-15 per Pole 0.14 W
Connecting Capacity Auxiliary Circuit	Flexible 1/2x 0.75 ... 2.5 mm², Rigid 1/2x 0.75 ... 2.5 mm²
Wire Stripping Length	Auxiliary Circuit 9 mm
Degree of Protection	IP20
Recommended Screw Driver	Auxiliary Circuit Pozidriv 2
Tightening Torque	Auxiliary Circuit 0.8 N·m
Terminal Type	Ring-Tongue Terminals
Suitable For	MC1, MC2, MCR equipped with Ring Tongue terminals
Suitable for Product Class	Mini Contactors
Product Name	Auxiliary Contact Block

Technical UL/CSA

Maximum Operating Voltage UL/CSA	600 V AC
General Use Rating UL/CSA	(600 V AC) 10 A
Connecting Capacity Auxiliary Circuit UL/CSA	Stranded 18-12 AWG
Contact Rating UL/CSA	A600, Q600
Tightening Torque UL/CSA	Auxiliary Circuit 7 in·lb

Environmental

Ambient Air Temperature	Operation -40 ... +70 °C, Storage -55 ... +80 °C
Maximum Operating Altitude Permissible	3000 m

Material Compliance

RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B	Business To Business
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)

External Classifications and Standards

Object Classification Code	K
ETIM 7	EC000041 - Auxiliary contact block
ETIM 8	EC000041 - Auxiliary contact block
ETIM 9	EC000041 - Auxiliary contact block
eClass	V11.0 : 27371302
UNSPSC	39121522
E-Number (Finland)	3709623
