ABB 1SAL101859R9901 – Mini Contactor MC1 12 V DC - 4 NO - 0 NC - Ring-Tongue Terminals

MPN: 1SAL101859R9901 · Brand: ABB

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	ABB Mini Contactors
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.25 kg
UPC / EAN	4013614544002

Shipping & availability

When can 1SAL101859R9901 be shipped?

1SAL101859R9901 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1SAL101859R9901 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1SAL101859R9901 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SAL101859R9901, subject to availability and destination.

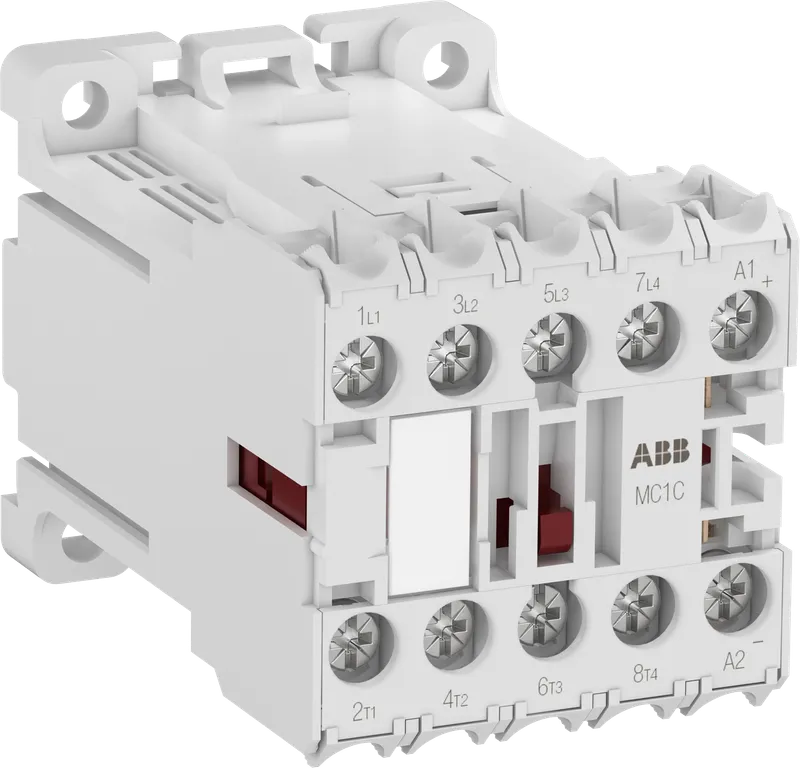

The MC1C400ARB mini contactor is a dimension optimized 4 pole contactor with special screw terminals for a connection with ring tongue ferrules. This device is a great solution when high performances are needed but the space is limited. Mini contactors are used in residential buldings, commercial buildings and industrial applications for the control of single or three-phase loads up to 4 kW (AC-3) and 20 A / 690 V (AC-1) or switching of control signals. The product is suitable for wall or rail mounting.

Specifications

General

Order code (ABB product ID)	1SAL101859R9901
Type	MC1C400ARB
Lifecycle	Active (current ABB product)

Ordering

Minimum Order Quantity	1 piece
Customs Tariff Number	85365080

Dimensions

Product Net Width	45 mm
Product Net Depth / Length	68 mm
Product Net Height	48 mm
Product Net Weight	0.25 kg

Technical

Number of Main Contacts NO	4
Number of Main Contacts NC	0
Number of Auxiliary Contacts NO	0
Number of Auxiliary Contacts NC	0
Number of Poles	4P
Standards	IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1
Rated Operational Voltage	Main Circuit 690 V AC, Main Circuit 440 V DC
Rated Frequency (f)	Control Circuit DC, Main Circuit 50 Hz, Main Circuit 60 Hz, Main Circuit DC
Conventional Free-air Thermal Current (I<sub>th</sub>)	Main Circuit 20 A
Rated Operational Current AC-1 (I<sub>e</sub>)	(690 V) 55 °C 20 A, (690 V) 70 °C 16 A, (230 V) 55 °C 20 A, (230 V) 70 °C 16 A, (400 V) 55 °C 20 A, (400 V) 70 °C 16 A, (500 V) 55 °C 20 A, (500 V) 70 °C 16 A
Rated Operational Current AC-3 (I<sub>e</sub>)	(230 V) 55°C 9 A, (400 V) 55 °C 9 A, (500 V) 55 °C 8 A, (690 V) NO 55°C 5 A
Rated Operational Power AC-3 (P<sub>e</sub>)	(230 V) Three Phase 2.2 kW, (400 V) Three Phase 4 kW, (500 V) Three Phase 4 kW, (690 V) Three Phase, NO 4 kW
Rated Breaking Capacity AC-3	8 x Ie / AC-3
Rated Making Capacity AC-3	10 x Ie / AC-3
Rated Short-time Withstand Current Low Voltage (I<sub>cw</sub>)	at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 72 A
Rated Insulation Voltage (U<sub>i</sub>)	750 V
Rated Impulse Withstand Voltage (U<sub>imp</sub>)	Main Circuit 6 kV
Maximum Electrical Switching Frequency	(AC-1) 300 cycles per hour, (AC-15) 360 cycles per hour, (AC-3) 1200 cycles per hour, (DC-1) 600 cycles per hour, (DC-13) 360 cycles per hour, (DC-3) 600 cycles per hour
Mechanical Durability	Nr. Operations 10000000 cycle
Coil Operating Limits	(acc. to IEC 60947-4-1) for DC supply 0.85 ... 1.1 x Uc (at θ ≤ 55 °C)
Rated Control Circuit Voltage (U<sub>c</sub>)	12 V DC
Coil Consumption	Average Holding Value DC 3 W, Average Pull-in Value DC 3 W
Power Loss	at Rated Operating Conditions AC-1 per Pole 0.7 W
Mounting on DIN Rail	TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Connecting Capacity Main Circuit	Flexible 1/2x 0.75 ... 2.5 mm², Rigid 1/2x 0.75 ... 2.5 mm²
Connecting Capacity Control Circuit	Flexible 1/2x 0.75 ... 2.5 mm², Rigid 1/2x 0.75 ... 2.5 mm²
Wire Stripping Length	Control Circuit 9 mm, Main Circuit 9 mm
Degree of Protection	Control Circuit Terminals IP20, Main Circuit Terminals IP20
Recommended Screw Driver	Pozidriv 2
Tightening Torque	Control Circuit 0.8 N·m, Main Circuit 0.8 ... 1.0 N·m
Terminal Type	Ring-Tongue Terminals
Mini Contactor Type	Mini Contactor
Product Name	Mini Contactor

Technical UL/CSA

Maximum Operating Voltage UL/CSA	Main Circuit 600 V AC
General Use Rating UL/CSA	(600 V AC) 20 A
Horsepower Rating UL/CSA	(115 V AC) Single Phase 0.5 Hp, (200 V AC) Three Phase 3 Hp, (220 ... 240 V AC) Three Phase 3 Hp, (230 V AC) Single Phase 1.5 Hp, (440 ... 480 V AC) Three Phase 5 Hp, (550 ... 600 V AC) Three Phase 5 Hp
Connecting Capacity Main Circuit UL/CSA	Stranded 1/2x 18-12 AWG
Tightening Torque UL/CSA	Control Circuit 7 in·lb, Main Circuit 7 in·lb
Full Load Amps Motor Use	(115 V AC) Single Phase 9.8 A, (200 V AC) Three Phase 11 A, (220 ... 240 V AC) Three Phase 9.6 A, (230 V AC) Single Phase 10 A, (440 ... 480 V AC) Three Phase 7.6 A, (550 ... 600 V AC) Three Phase 6.1 A

Environmental

Ambient Air Temperature	Operation -40 ... +70 °C, Storage -55 ... +80 °C
Maximum Operating Altitude Permissible	3000 m
Resistance to Shock acc. to IEC 60068-2-27	11 ms Pulse 25g
Resistance to Vibrations	5g 3 ... 150 Hz

Material Compliance

RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B	Business To Business
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)

External Classifications and Standards

Object Classification Code	Q
ETIM 7	EC000066 - Power contactor, AC switching
ETIM 8	EC000066 - Power contactor, AC switching
ETIM 9	EC000066 - Power contactor, AC switching
eClass	V11.0 : 27371003
UNSPSC	39121529
E-Number (Finland)	3709515

Downloads & documentation

Official documents from ABB, downloaded directly from the manufacturer.

Data sheets & manuals

Data Sheet, Technical Information (1SBC100214C0202)
Instructions and Manuals (2CDC103061M6801)

CAD & dimension drawings

CAD Dimensional Drawing (2CDC001079B0201)

Certificates (12)

REACH Declaration (2CMT2021-006202)
RoHS Declaration (2CMT2021-006277)
A2L Certificate – IEC (1SAA971000-4601)
BV Certificate (1SAA971000-0201)
CB Certificate (1SAA971000-2001)
CCC Certificate (9AKK108472A3534)
CQC Certificate (CQC2019010304197131)
Declaration of Conformity - CCC (2020980304001602)
Declaration of Conformity - CE (1SAD101100-3201)
Declaration of Conformity - UKCA (1SAD201100-3201)
RINA Certificate (1SAA971000-0801)
UL Certificate (E191658-19880826)
