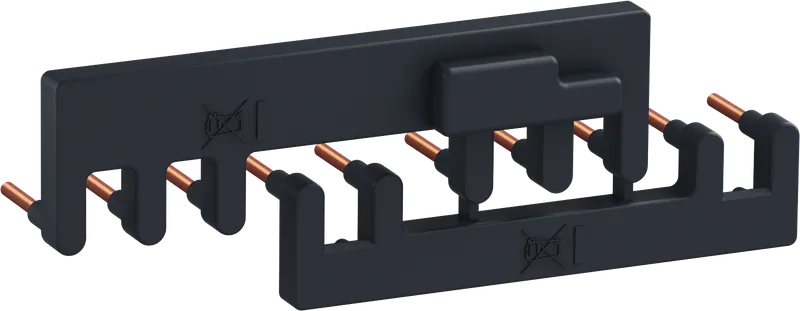

ABB 1SAL101421R9906 – WKMIU Reversing Connecting Link
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | ABB Mini Contactors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.03 kg |
| UPC / EAN | 4013614550591 |
Shipping & availability
When can 1SAL101421R9906 be shipped?
1SAL101421R9906 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1SAL101421R9906 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1SAL101421R9906 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SAL101421R9906, subject to availability and destination.
The WKMIU reversing connecting link is used to connect two MC contactors mounted side by side. and is made up of 1 upstream and 1 downstream connections. The WKMIU reversing connecting link is insulated and made of solid copper bars. The WKMIU reversing connecting link ensures a quick and safe connection of the contacts.
Specifications
General
| Order code (ABB product ID) | 1SAL101421R9906 |
| Type | WKMIU |
| Lifecycle | Active (current ABB product) |
Ordering
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
Dimensions
| Product Net Width | 83 mm |
| Product Net Depth / Length | 28 mm |
| Product Net Height | 20 mm |
| Product Net Weight | 0.03 kg |
Technical
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1 |
| Terminal Type | No Terminals |
| Suitable For | MC1, MC2 |
| Suitable for Product Class | Mini Contactors |
| Product Name | Connecting Link |
Material Compliance
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards
| ETIM 7 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| eClass | V11.0 : 27371392 |
| UNSPSC | 39122221 |
| E-Number (Finland) | 3709492 |
Downloads & documentation
Official documents from ABB, downloaded directly from the manufacturer.
Data sheets & manuals
| Data Sheet, Technical Information (1SBC100214C0202) | |
| Instructions and Manuals (2CDC102081M9901) |
CAD & dimension drawings
| CAD Dimensional Drawing (2CDC001079B0201) |
More ABB parts

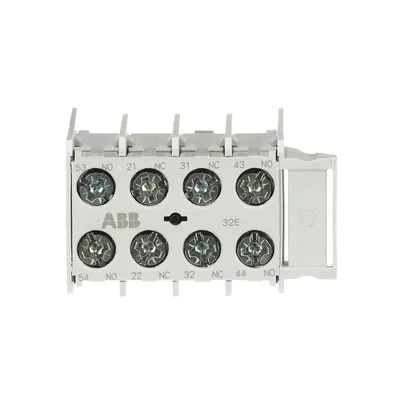

Available on requestMACN422AT Auxiliary Contact 2NO/2NC screw terminal, front mounted

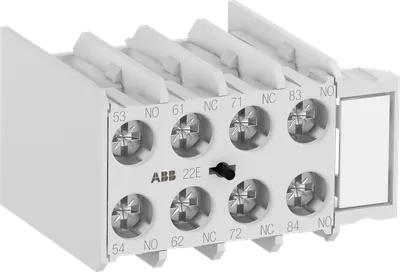

Available on requestMACN431AT Auxiliary Contact 3NO/1NC screw terminal, front mounted

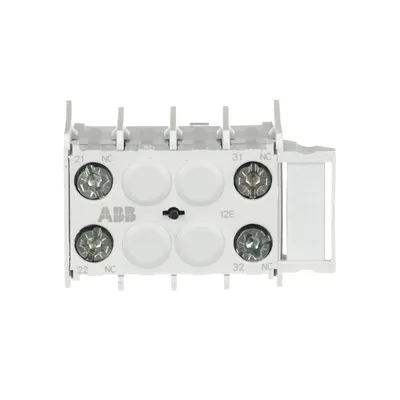

Available on requestMACN202AT Auxiliary Contact 2NC screw terminal, front mounted

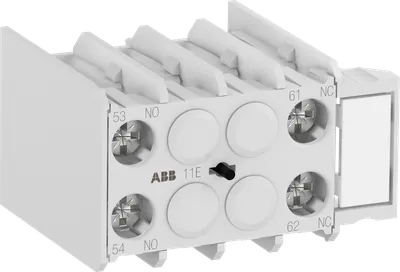

Available on requestMACN211AT Auxiliary Contact 1NO/1NC screw terminal, front mounted

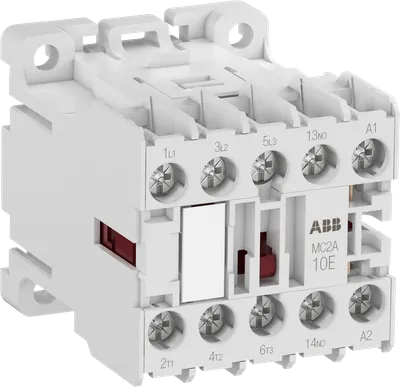

Available on requestMini Contactor MC2 120 V AC - 3 NO - 0 NC - Screw TerminalsAvailable on requestMini Contactor MC2 120 V AC - 3 NO - 0 NC - Screw Terminals
