ABB 1SAH102145R9910 – MCRC022ARWID-RAILMini Contactor Relay51 ... 90 V DC2NO2NCRing-Tongue Terminals

MPN: 1SAH102145R9910 · Brand: ABB

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	ABB Mini Contactor Relays
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.245 kg
UPC / EAN	4013614549519

Shipping & availability

When can 1SAH102145R9910 be shipped?

1SAH102145R9910 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1SAH102145R9910 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1SAH102145R9910 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SAH102145R9910, subject to availability and destination.

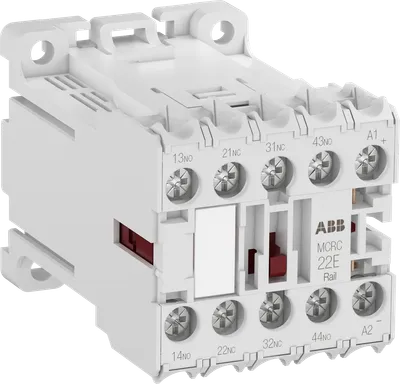

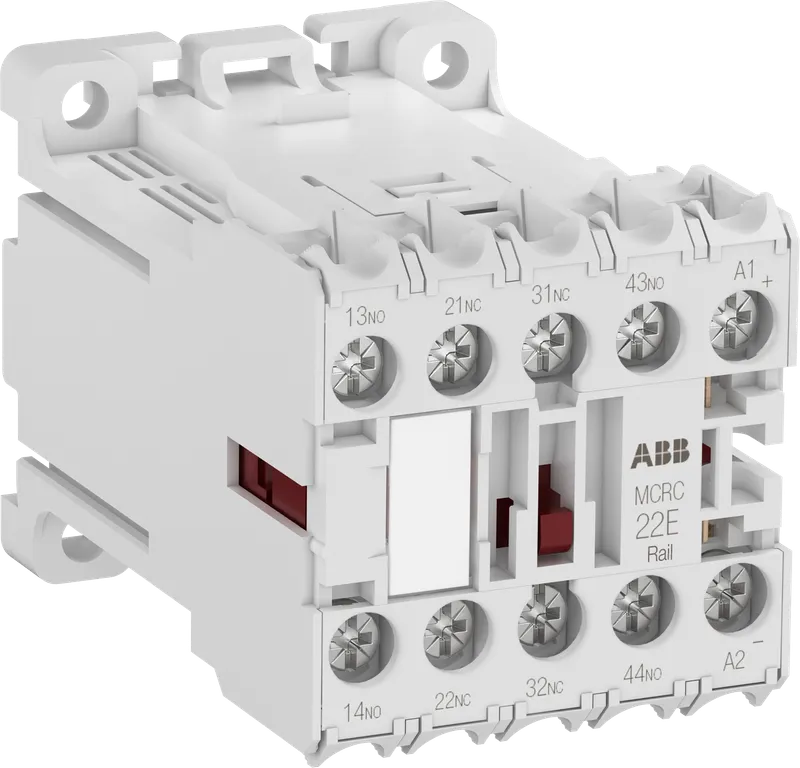

The MCRC022ARWID-RAIL mini contactor relay is a dimension optimized 4 pole contactor relay with special screw terminals for a connection with ring tongue ferrules. This device is a great solution when high performances are needed but the space is limited. Mini contactors are used in residential buldings, commercial buildings and industrial applications for switching of control signals up to 6 A / 240 V (AC-15). The product is suitable for wall or rail mounting.

Specifications

General

Order code (ABB product ID)	1SAH102145R9910
Type	MCRC022ARWID-RAIL
Lifecycle	Active (current ABB product)

Ordering

Minimum Order Quantity	1 piece
Customs Tariff Number	85365080

Dimensions

Product Net Width	45 mm
Product Net Depth / Length	68 mm
Product Net Height	48 mm
Product Net Weight	0.245 kg

Technical

Number of Main Contacts NO	0
Number of Main Contacts NC	0
Number of Auxiliary Contacts NO	2
Number of Auxiliary Contacts NC	2
Number of Poles	4P
Standards	IEC/EN 60947-1, IEC/EN 60947-5-1, UL 60947-1, UL 60947-5-1
Rated Operational Voltage	Auxiliary Circuit 690 V AC, Auxiliary Circuit 440 V DC
Rated Frequency (f)	Auxiliary Circuit 50 Hz, Auxiliary Circuit 60 Hz, Auxiliary Circuit DC, Control Circuit DC
Conventional Free-air Thermal Current (I<sub>th</sub>)	Auxiliary Circuit 10 A
Rated Operational Current AC-15 (I<sub>e</sub>)	(240 V) 6 A, (400 V) 4 A, (500 V) 2.5 A, (690 V) 1.5 A
Rated Operational Current DC-13 (I<sub>e</sub>)	(24 V) 5 A, (48 V) 2.5 A, (125 V) 0.55 A, (250 V) 0.3 A, (440 V) 0.15 A
Short-Circuit Protective Devices	gG Type Fuses 10 A
Rated Insulation Voltage (U<sub>i</sub>)	750 V
Rated Impulse Withstand Voltage (U<sub>imp</sub>)	Auxiliary Circuit 6 kV
Maximum Electrical Switching Frequency	(AC-15) 360 cycles per hour, (DC-13) 360 cycles per hour
Mechanical Durability	Nr. Operations 10000000 cycle
Minimum Switching Capacity	Auxiliary Circuit 17 V, Auxiliary Circuit 5 mA
Coil Operating Limits	(acc. to IEC 60947-5-1) for DC supply Uc Min. ... Uc Max. (at θ ≤ 55 °C)
Rated Control Circuit Voltage (U<sub>c</sub>)	51 ... 90 V DC
Coil Consumption	Average Holding Value DC 4 W, Average Pull-in Value DC 4 W
Power Loss	at Rated Operating Conditions per Pole 0.4 W, at Rated Operating Conditions AC-15 per Pole 0.14 W
Mounting on DIN Rail	TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Connecting Capacity Auxiliary Circuit	Flexible 1/2x 0.75 ... 2.5 mm², Rigid 1/2x 0.75 ... 2.5 mm²
Connecting Capacity Control Circuit	Flexible 1/2x 0.75 ... 2.5 mm², Rigid 1/2x 0.75 ... 2.5 mm²
Wire Stripping Length	Auxiliary Circuit 9 mm, Control Circuit 9 mm
Degree of Protection	Auxiliary Circuit Terminals IP20, Control Circuit Terminals IP20, Main Circuit Terminals IP20
Recommended Screw Driver	Pozidriv 2
Tightening Torque	Auxiliary Circuit 0.8 ... 1.0 N·m, Control Circuit 0.8 N·m
Terminal Type	Ring-Tongue Terminals
Mini Contactor Type	Mini Contactor Relay
Product Name	Mini Contactor Relay

Technical UL/CSA

Maximum Operating Voltage UL/CSA	600 V AC
General Use Rating UL/CSA	(600 V AC) 10 A
Connecting Capacity Auxiliary Circuit UL/CSA	Stranded 1/2x 18-12 AWG
Contact Rating UL/CSA	A600, Q600
Tightening Torque UL/CSA	Auxiliary Circuit 7 in·lb, Control Circuit 7 in·lb, Main Circuit 7 in·lb

Environmental

Ambient Air Temperature	Operation -40 ... +70 °C, Storage -55 ... +80 °C
Maximum Operating Altitude Permissible	3000 m
Resistance to Shock acc. to IEC 60068-2-27	11 ms Pulse 25g
Resistance to Vibrations	5g 3 ... 150 Hz
Shock and Vibration Withstand acc. to IEC 61373	Category 1, Class B

Material Compliance

RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B	Business To Business
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)

External Classifications and Standards

Object Classification Code	K
ETIM 7	EC000196 - Contactor relay
ETIM 8	EC000196 - Contactor relay
ETIM 9	EC000196 - Contactor relay
eClass	V11.0 : 27371001
UNSPSC	39121500

Downloads & documentation

Official documents from ABB, downloaded directly from the manufacturer.

Data sheets & manuals

Data Sheet, Technical Information (1SBC100214C0202)
Instructions and Manuals (2CDC103061M6801)

CAD & dimension drawings

CAD Dimensional Drawing (2CDC001079B0201)

Certificates (10)

REACH Declaration (2CMT2021-006202)
RoHS Declaration (2CMT2021-006277)
A2L Certificate – IEC (1SAA971000-4601)
BV Certificate (1SAA971000-0201)
CB Certificate (1SAA971001-2001)
CQC Certificate (CQC2019010303193580)
Declaration of Conformity - CCC (2020980303000255)
Declaration of Conformity - CE (1SAD101100-3201)
Declaration of Conformity - UKCA (1SAD201100-3201)
UL Certificate (E48139-19880829)
