ABB 1SAE901901M1011 – EH04-11N Auxiliary Contact - 0 NO - 0 NC - Auxiliary Circuit 50 Hz

MPN: 1SAE901901M1011 · Brand: ABB

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	ABB Installation Contactors
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.04 kg

Shipping & availability

When can 1SAE901901M1011 be shipped?

1SAE901901M1011 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1SAE901901M1011 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1SAE901901M1011 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SAE901901M1011, subject to availability and destination.

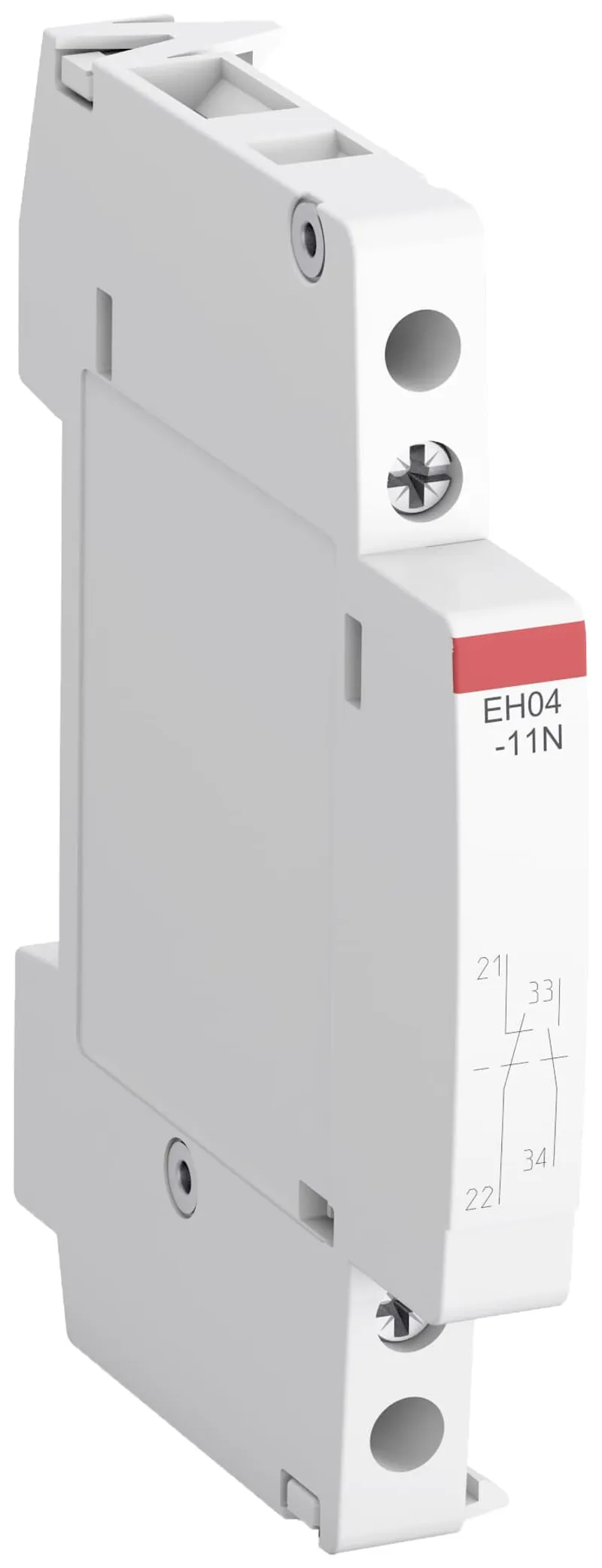

The EH04 are auxiliary contact blocks which can be used in combination with all the new ESB..N and EN..N installation contactors.

These devices are available in 2 different contact configurations and no tool is needed for their assembling.

Specifications

General

Order code (ABB product ID)	1SAE901901M1011
Type	EH04-11N
Lifecycle	Active (current ABB product)

Ordering

Minimum Order Quantity	6 piece
Customs Tariff Number	85369010

Dimensions

Product Net Width	9 mm
Product Net Depth / Length	65 mm
Product Net Height	85 mm
Product Net Weight	0.04 kg

Technical

Number of Main Contacts NO	0
Number of Main Contacts NC	0
Number of Auxiliary Contacts NO	1
Number of Auxiliary Contacts NC	1
Number of Poles	2P
Standards	IEC/EN 60947-5-1
Rated Operational Voltage	Auxiliary Circuit 500 V AC
Rated Frequency (f)	Auxiliary Circuit 50 Hz, Auxiliary Circuit 60 Hz
Conventional Free-air Thermal Current (I<sub>th</sub>)	Auxiliary Circuit 6 A
Rated Operational Current AC-15 (I<sub>e</sub>)	(415 V AC) 3 A, (24 V) 6 A, (240 V) 4 A, (500 V) 2 A
Rated Operational Current DC-13 (I<sub>e</sub>)	(125 V) 0.55 A, (250 V) 0.27 A
Short-Circuit Protective Devices	gG Type Fuses 10 A
Rated Insulation Voltage (U<sub>i</sub>)	500 V
Rated Impulse Withstand Voltage (U<sub>imp</sub>)	Auxiliary Circuit 4 kV
Maximum Electrical Switching Frequency	(AC-15) 360 cycles per hour, (DC-13) 360 cycles per hour
Minimum Switching Capacity	> 17 V, > 5 mA
Power Loss	at Rated Operating Conditions AC-15 per Pole 0.84 W
Connecting Capacity Auxiliary Circuit	Flexible with Ferrule 1x 1 ... 1.5 mm², Flexible 1x 1 ... 2.5 mm², Rigid 1x 1 ... 4 mm², Rigid 2x 1 ... 1.5 mm²
Wire Stripping Length	Auxiliary Circuit, Top Terminals (1x 1.5) 7 mm, Auxiliary Circuit, Top Terminals (1x 2.5 ... 4) 17 mm, Auxiliary Circuit, Top Terminals (2x 1.5) 17 mm, Auxiliary Circuit, Bottom Terminals (1x 1.5) 7 mm, Auxiliary Circuit, Bottom Terminals (1x 2.5 ... 4) 9 mm, Auxiliary Circuit, Bottom Terminals (2x 1.5) 9 mm
Degree of Protection	IP20
Recommended Screw Driver	Auxiliary Circuit Pozidriv 1
Tightening Torque	Auxiliary Circuit 0.9 N·m
Terminal Type	Screw Terminals
Width in Number of Modular Spacings	1
Suitable For	ESB16..N, ESB20..N, ESB25..N, ESB40..N, ESB63..N, EN20..N, EN25..N, EN40..N, ESB100..N
Suitable for Product Class	Installation Contactors
Product Name	Auxiliary Contact

Technical UL/CSA

Maximum Operating Voltage UL/CSA	600 V AC
General Use Rating UL/CSA	(600 V AC) 5 A
Connecting Capacity Auxiliary Circuit UL/CSA	Stranded 18-12 AWG
Contact Rating UL/CSA	A600
Tightening Torque UL/CSA	Auxiliary Circuit 8 in·lb

Environmental

Ambient Air Temperature	Operation -25 ... +55 °C, Storage -40 ... +80 °C
Maximum Operating Altitude Permissible	2000 m
Resistance to Shock acc. to IEC 60068-2-27	11 ms Pulse 15g
Resistance to Vibrations	5g 3 ... 150 Hz

Material Compliance

RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B	Business To Consumer
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)

External Classifications and Standards

Object Classification Code	K
ETIM 7	EC000041 - Auxiliary contact block
ETIM 8	EC000041 - Auxiliary contact block
ETIM 9	EC000041 - Auxiliary contact block
eClass	V11.0 : 27371302
UNSPSC	39121522
