Home / ABB / XP100 / ABB 1MB21214CB312AG3

ABB

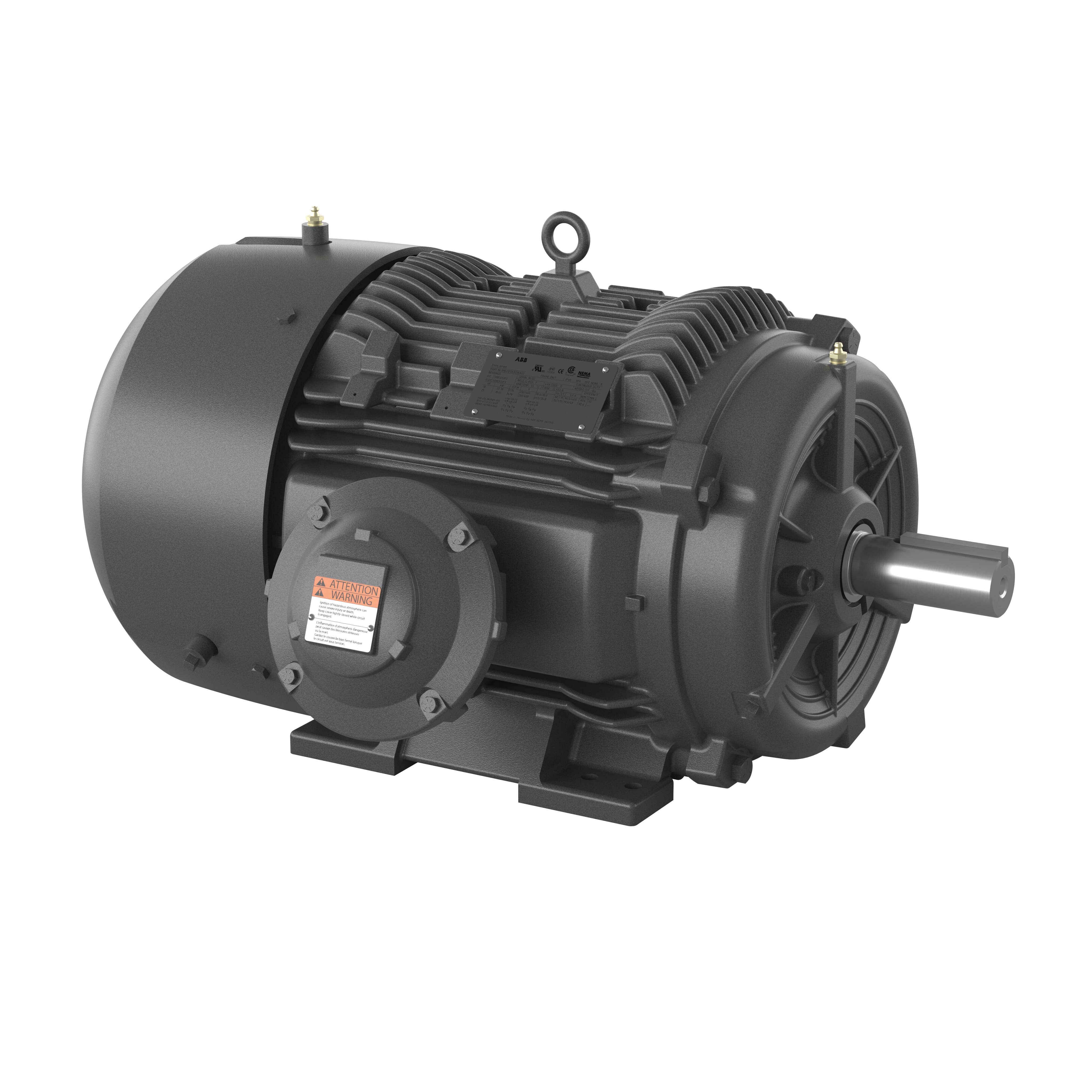

ABB 1MB21214CB312AG3

MOTOR,200,1800,XP100,460,447T

MPN: 1MB21214CB312AG3
Category: XP100

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB 1MB21214CB312AG3?

LVM Explosion Proof Motors - GDL 200 Hp 400 V (1MB21214CB312AG3)

Specifications

Ordering

Catalog Number	1MB21214CB312AG3
Brand / Label	ABB NEMA Motors
Country or Territory of Origin	Mexico
Customs Tariff Number	8501530400
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Efficiency Level	Premium Efficiency (NEMA 12-12)
Insulation Class	F
NEMA Design Code	B
Number of Phases	3-phase
Number of Poles	4P
Number of Speeds	single_speed
Power Factor	85 %
Rated Efficiency	96.2 %
Service Factor	1.15
Temperature Class	T3C
Type of Duty	Continuous
Starting of Motor	Direct on line
Synchronous Speed (vsyn)	1500 r/min, 1800 r/min
Output Power	200 Hp

Mechanical

Drive End Flange Type	Standard
Enclosure Type	TEFC
Explosion Proof Group Class	Class I, Group C & D, Class II, Group F & G G
Frame Material	Cast_Iron
Motor Frame Size	447T
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	0 in
Product Net Weight	1093 lb
Product Net Width	0 in

1MB21214CB312AG3: frequently asked questions

When can 1MB21214CB312AG3 be shipped?

1MB21214CB312AG3 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1MB21214CB312AG3 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1MB21214CB312AG3 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1MB21214CB312AG3, subject to availability and destination.
