ABB 1LE63215AC812AA1
MOTOR,400,1200,SD200,460,5011,NP
- MPN
- 1LE63215AC812AA1
- Category
- SD200
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the ABB 1LE63215AC812AA1?

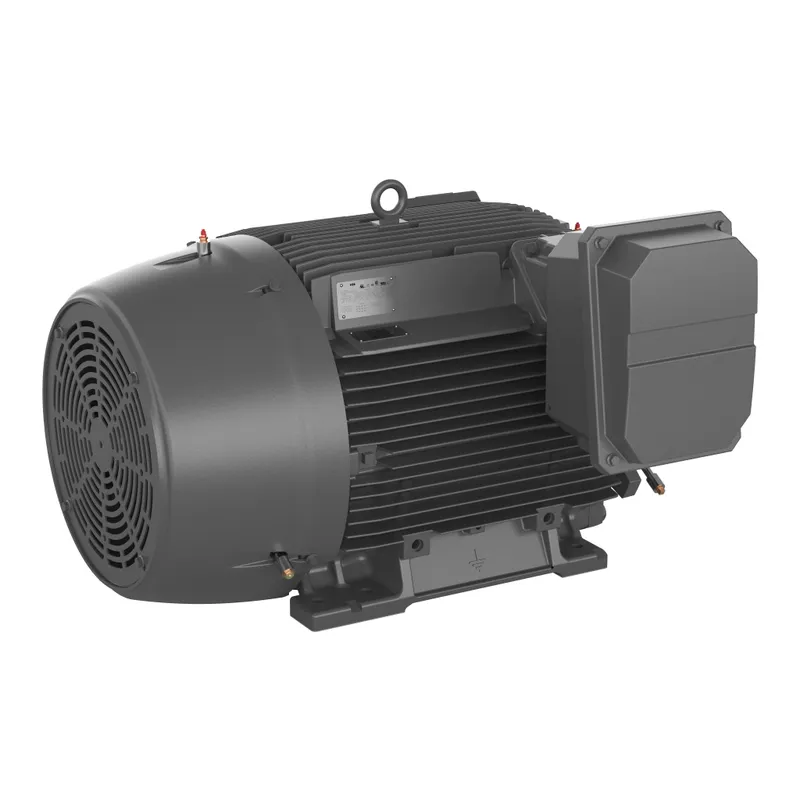

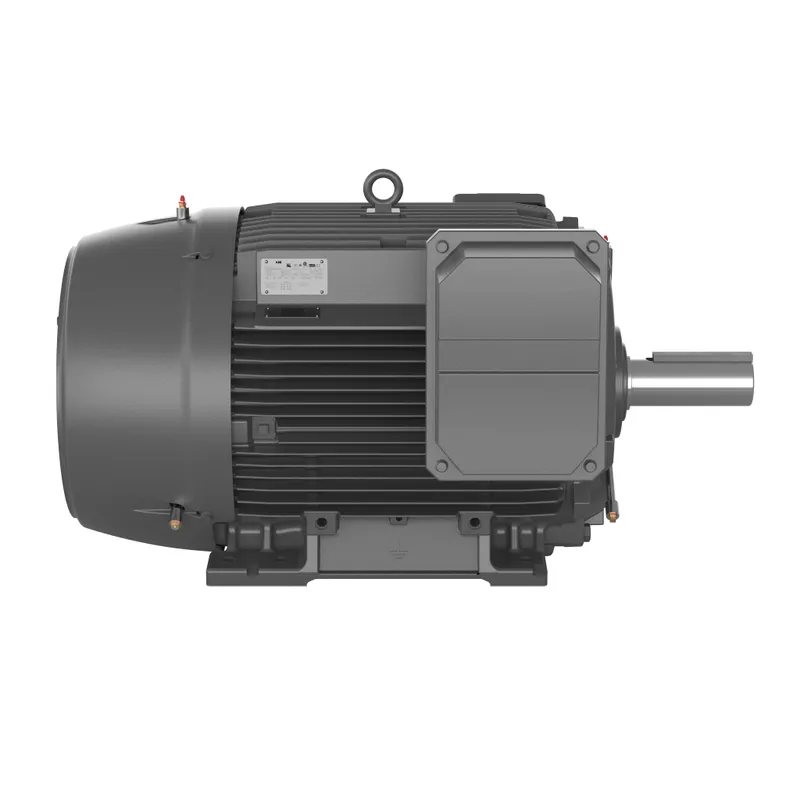

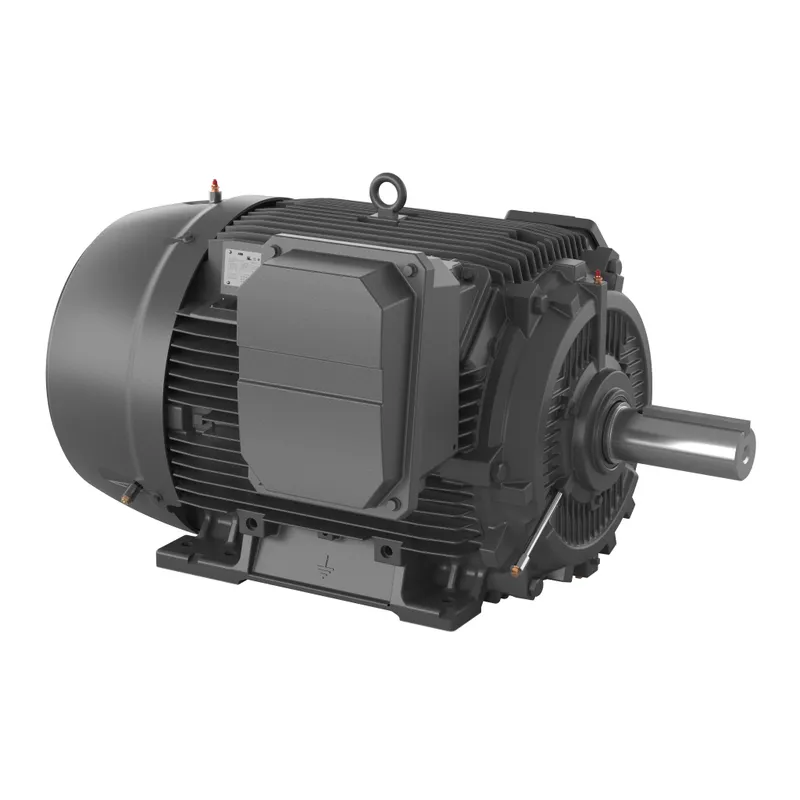

Severe Duty Motor 400 Hp 460 V (1LE63215AC812AA1)
Specifications
Ordering
| Catalog Number | 1LE63215AC812AA1 |
| Brand / Label | ABB NEMA Motors |
| Country or Territory of Origin | Mexico |
| Customs Tariff Number | 8501530400 |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
Electrical
| Electrical Data 1 | Current 470 A, Frequency 60 Hz, Power 400 Hp, 1190 r/min, Voltage 460 V A |
| Ambient Temperature | 40 °C |
| Efficiency Level | Premium Efficiency (NEMA 12-12) |
| Insulation Class | H |
| NEMA Design Code | B |
| Number of Phases | 3-phase |
| Number of Poles | 6P |
| Number of Speeds | single_speed |
| Power Factor | 84.1 % |
| Rated Efficiency | 96.2 % |
| Service Factor | 1.15 |
| Temperature Class | T3 |
| Type of Duty | Continuous |
| Starting of Motor | Direct on line |
| Synchronous Speed (vsyn) | 1200 r/min |
| Output Power | 400 Hp |
Mechanical
| Drive End Flange Type | Standard |
| Enclosure Type | TEFC |
| Explosion Proof Group Class | Class I, Group A, B, C & D A |
| Frame Material | Cast_Iron |
| Motor Frame Size | 5011 |
| Motor Base Type | Foot Mounted |
| Mounting Position | F1 |
| Brake Present | No |
Dimensions
| Product Net Height | 0 in |
| Product Net Weight | 2453 lb |
| Product Net Width | 0 in |
1LE63215AC812AA1: frequently asked questions
When can 1LE63215AC812AA1 be shipped?
1LE63215AC812AA1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1LE63215AC812AA1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1LE63215AC812AA1 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1LE63215AC812AA1, subject to availability and destination.
