ABB

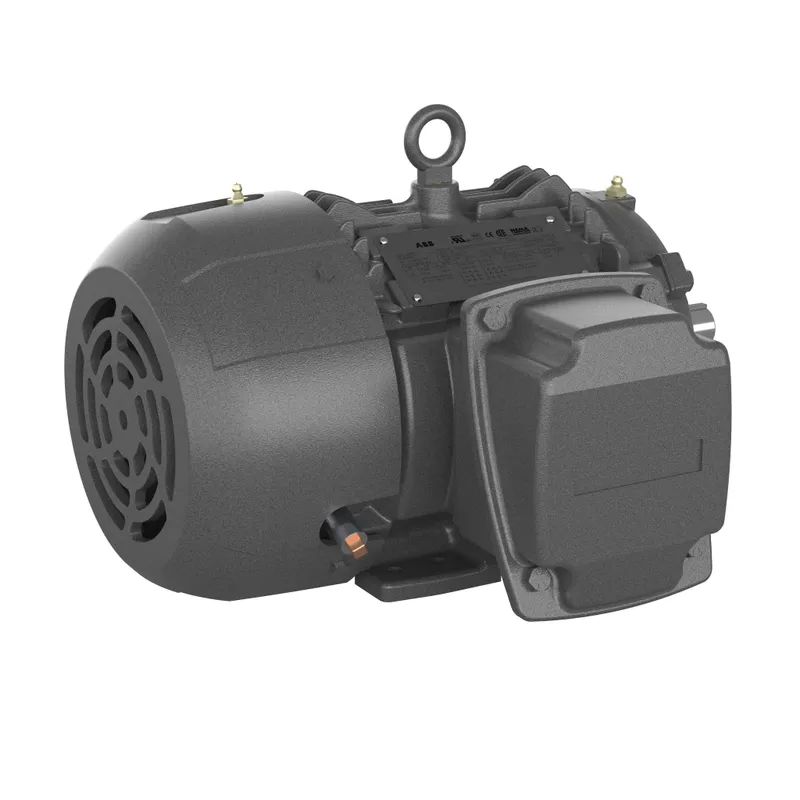

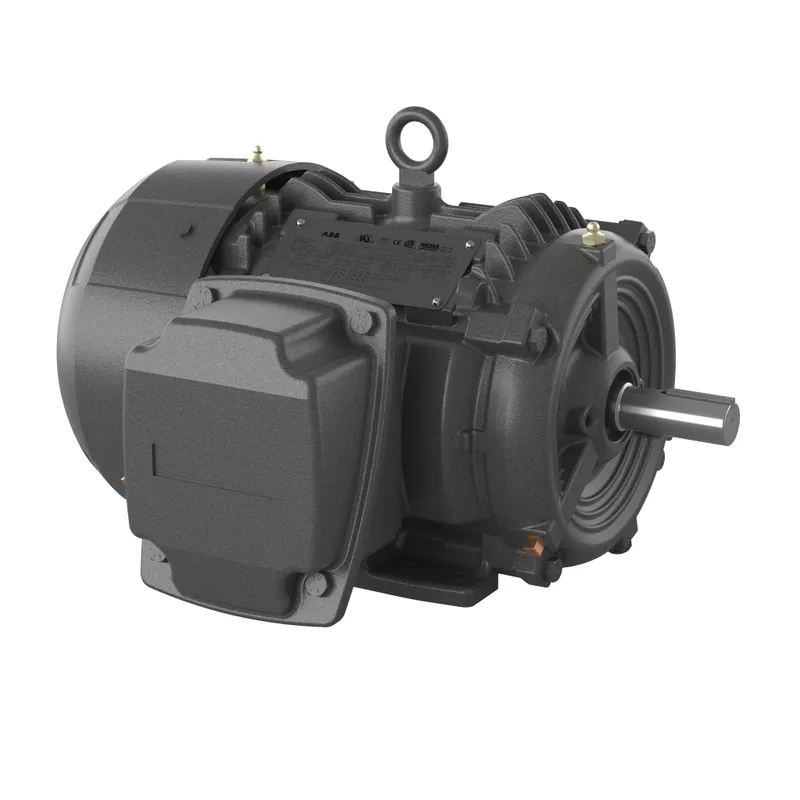

ABB 1LE23213CB213AA3

MOTOR,75,1800,SD100,575,365T,NP

MPN: 1LE23213CB213AA3
Category: SD100

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB 1LE23213CB213AA3?

Severe Duty Motor 75 Hp 575 V (1LE23213CB213AA3)

Specifications

Ordering

Catalog Number	1LE23213CB213AA3
Brand / Label	ABB NEMA Motors
Country or Territory of Origin	Mexico
Customs Tariff Number	8501520400
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Efficiency Level	Premium Efficiency (NEMA 12-12)
Insulation Class	F
NEMA Design Code	B
Number of Phases	3-phase
Number of Poles	4P
Number of Speeds	single_speed
Power Factor	87 %
Rated Efficiency	95.4 %
Service Factor	1.15
Temperature Class	T3
Type of Duty	Continuous
Starting of Motor	Direct on line
Synchronous Speed (vsyn)	1800 r/min
Output Power	75 Hp

Mechanical

Drive End Flange Type	Standard
Enclosure Type	TEFC
Explosion Proof Group Class	Class I, Group A, B, C & D, Class II, Group F & G A
Frame Material	Cast_Iron
Motor Frame Size	365T
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	0 in
Product Net Weight	454 lb
Product Net Width	0 in
