ABB

ABB 1LE23211CD313GA3

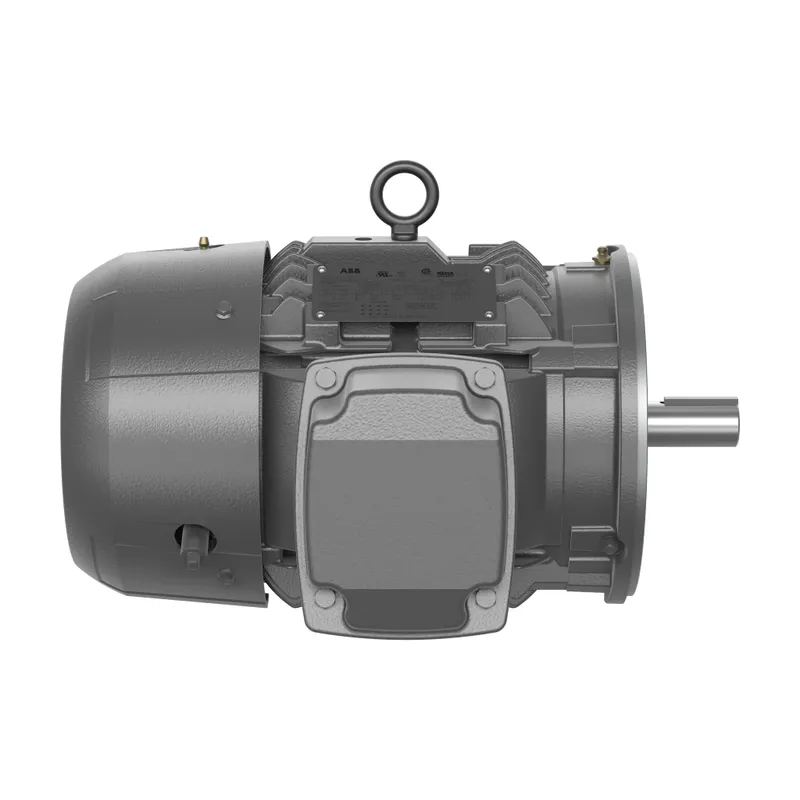

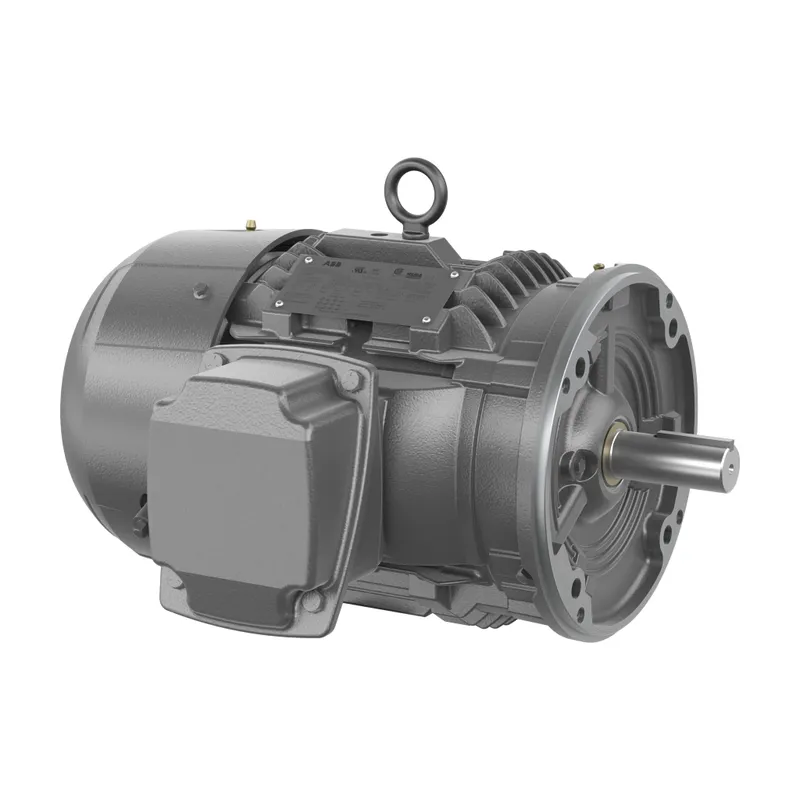

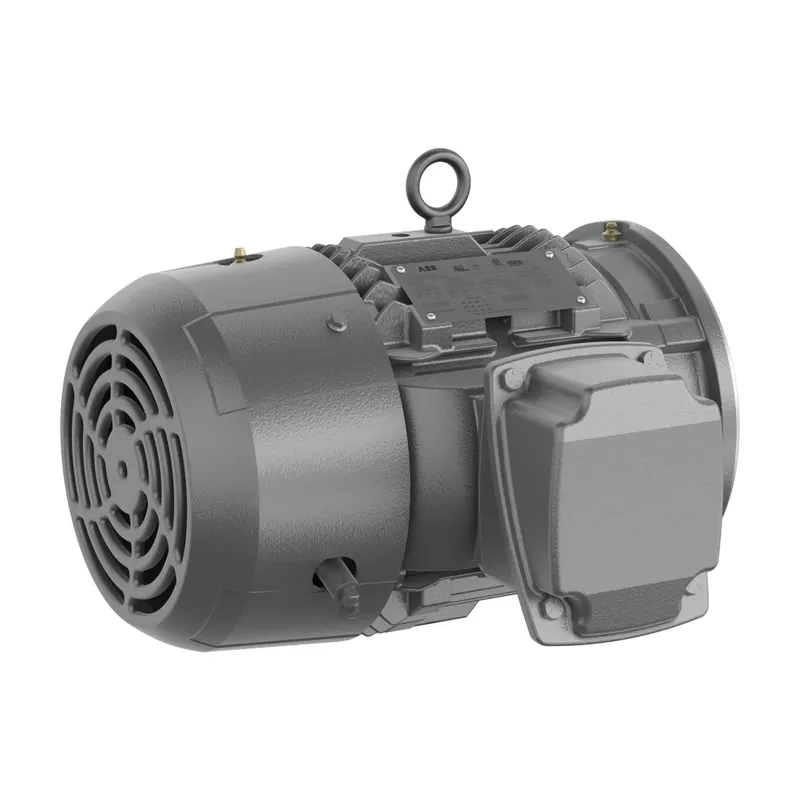

MOTOR,1.5,900,SD100,575,184TC

MPN: 1LE23211CD313GA3
Category: SD100

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB 1LE23211CD313GA3?

Severe Duty Motor 1.5 Hp 575 V (1LE23211CD313GA3)

Specifications

Ordering

Catalog Number	1LE23211CD313GA3
Brand / Label	ABB NEMA Motors
Country or Territory of Origin	Mexico
Customs Tariff Number	8501520400
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Efficiency Level	Premium Efficiency (NEMA 12-12)
Insulation Class	F
NEMA Design Code	B
Number of Phases	3-phase
Number of Poles	8P
Number of Speeds	single_speed
Power Factor	56 %
Rated Efficiency	82.5 %
Service Factor	1.15
Temperature Class	T3
Type of Duty	Continuous
Starting of Motor	Direct on line
Synchronous Speed (vsyn)	900 r/min
Output Power	1.5 Hp

Mechanical

Drive End Flange Type	C-Face
Enclosure Type	TEFC
Explosion Proof Group Class	Class I, Group A, B, C & D A
Frame Material	Cast_Iron
Motor Frame Size	184TC
Motor Base Type	Footless
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	0 in
Product Net Weight	54 lb
Product Net Width	0 in
