Home / ABB / SD100 / ABB 1LE23014EM240AA3

ABB

ABB 1LE23014EM240AA3

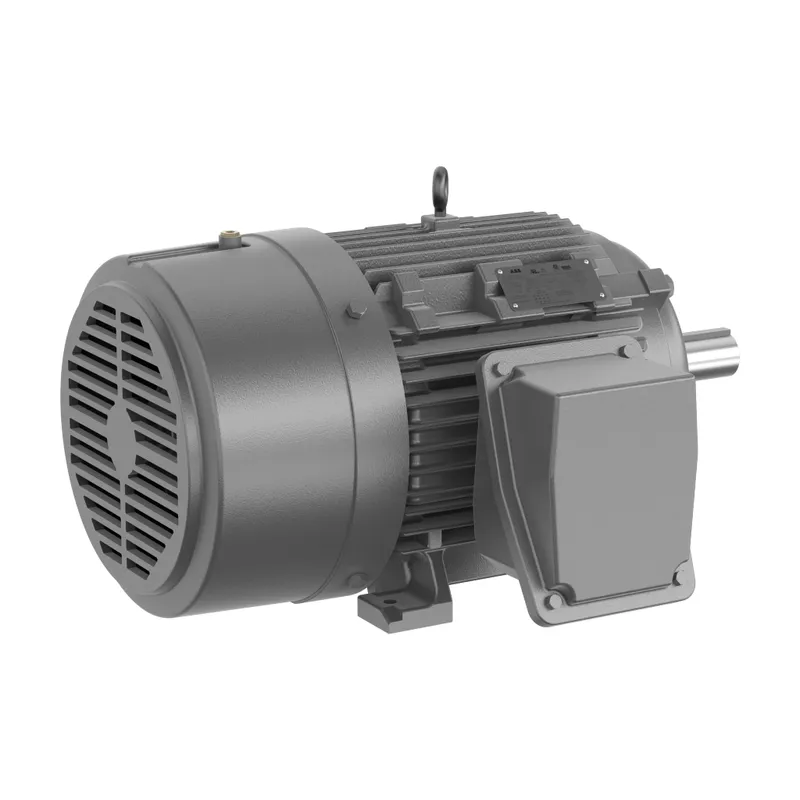

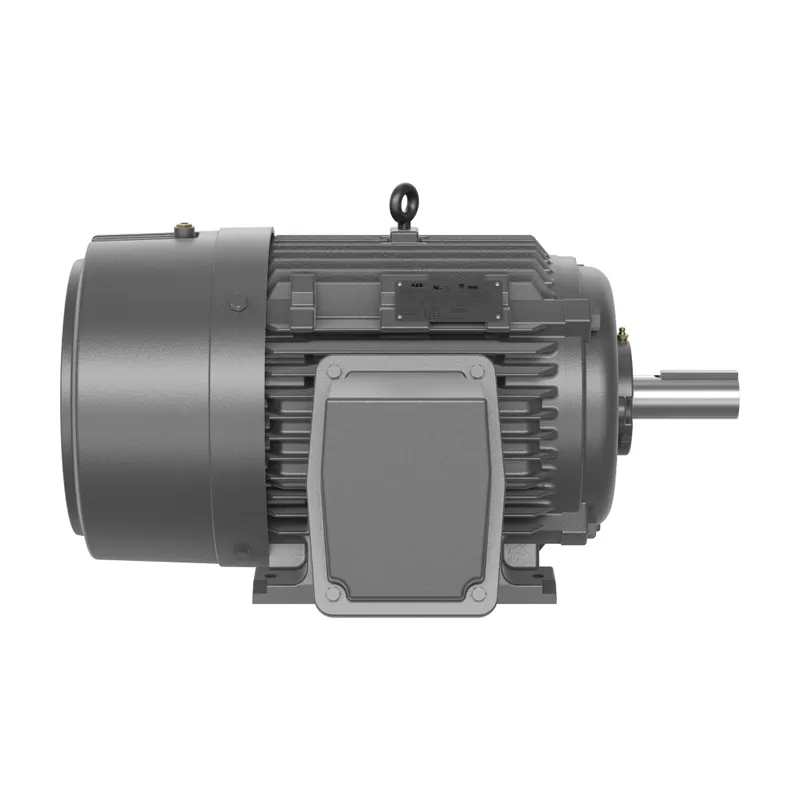

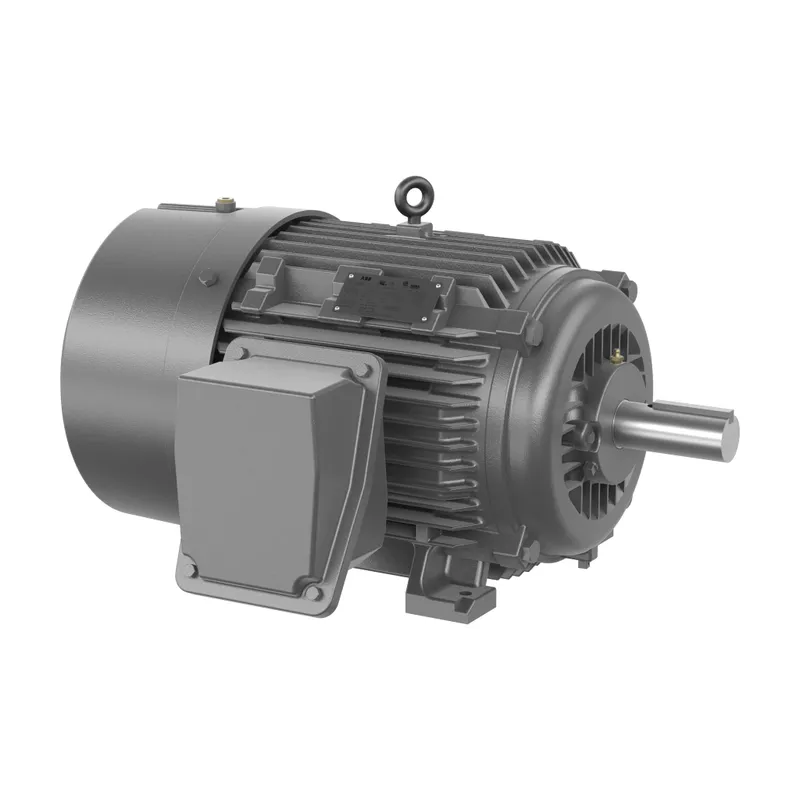

MOTOR,125 / 31,1800/900,SD10MS,460

MPN: 1LE23014EM240AA3
Category: SD100

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 1LE23014EM240AA3?

Severe Duty Motor 125 Hp 460 V (1LE23014EM240AA3)

Specifications

Ordering

Catalog Number	1LE23014EM240AA3
Brand / Label	ABB NEMA Motors
Country or Territory of Origin	Mexico
Customs Tariff Number	8501530400
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Efficiency Level	Not Regulated / Exempt
Insulation Class	F
Number of Phases	3-phase
Number of Poles	4P, 8P
Number of Speeds	two_speed 1w_vt
Power Factor	81/56 %
Rated Efficiency	93.0 %
Service Factor	1.15
Type of Duty	Continuous
Starting of Motor	Direct on line
Synchronous Speed (vsyn)	1800 r/min, 900 r/min
Output Power	125 Hp

Mechanical

Drive End Flange Type	Standard
Enclosure Type	TEFC
Frame Material	Cast_Iron
Motor Frame Size	445T
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	0 in
Product Net Weight	862 lb
Product Net Width	0 in
