Home / ABB / GP100 / ABB 1LE22211CA313GA3

ABB

ABB 1LE22211CA313GA3

MOTOR,5,3600,GP100,575,184TC,NP

MPN: 1LE22211CA313GA3
Category: GP100

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB 1LE22211CA313GA3?

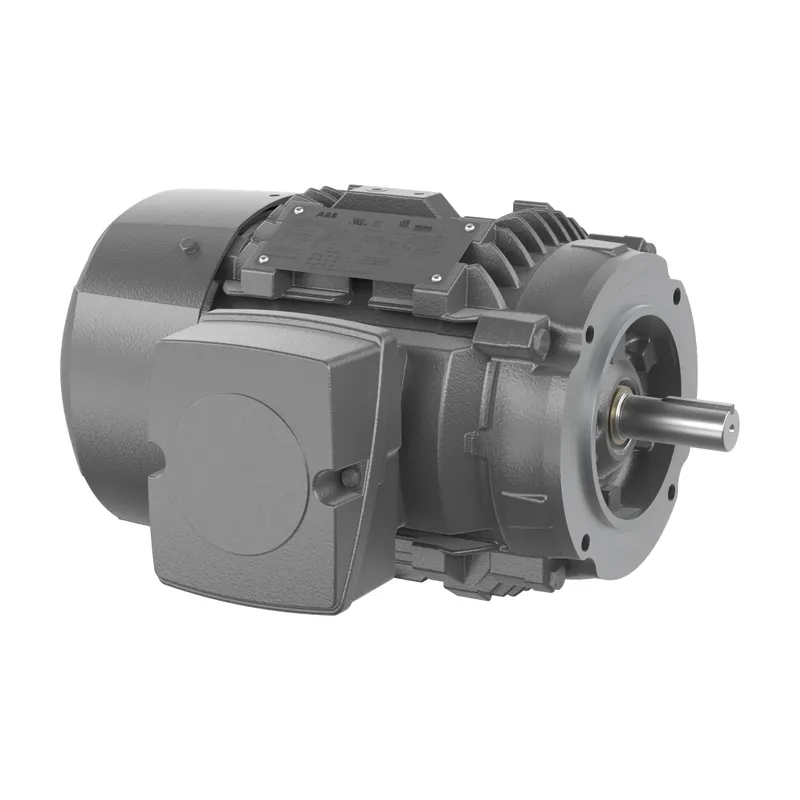

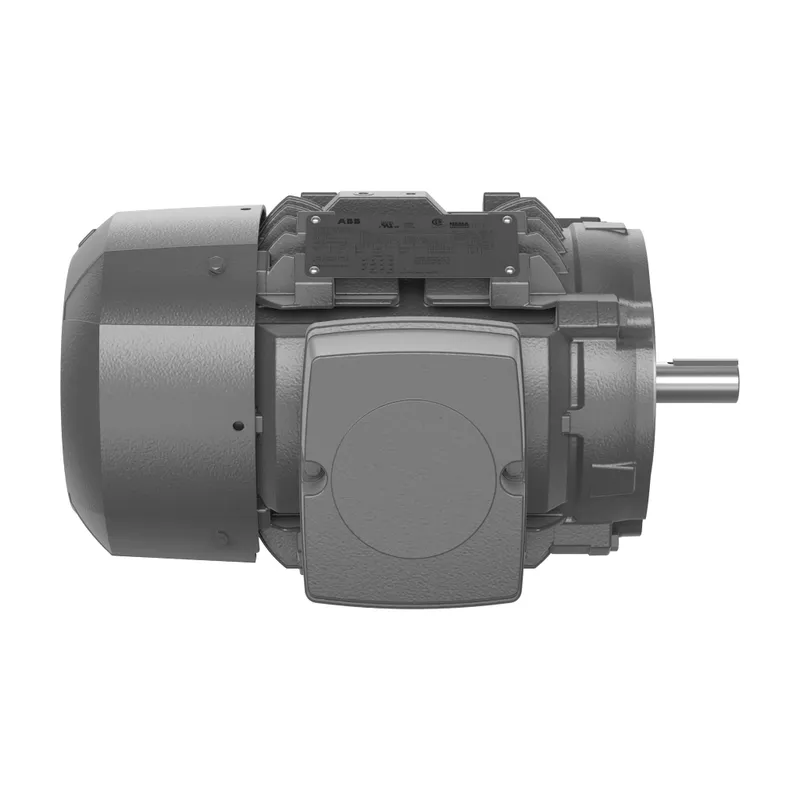

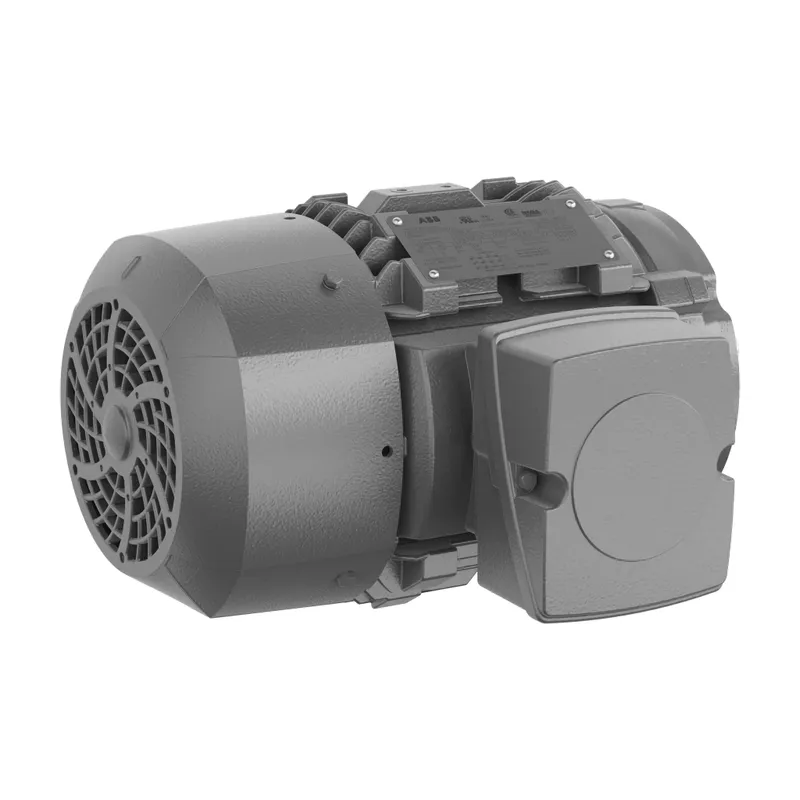

General Purpose Motor 5 Hp 575 V (1LE22211CA313GA3)

Specifications

Ordering

Catalog Number	1LE22211CA313GA3
Brand / Label	ABB NEMA Motors
Country or Territory of Origin	Mexico
Customs Tariff Number	8501520400
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Efficiency Level	Premium Efficiency (NEMA 12-12)
Insulation Class	F
NEMA Design Code	B
Number of Phases	3-phase
Number of Poles	2P
Number of Speeds	single_speed
Power Factor	88.2 %
Rated Efficiency	88.5 %
Service Factor	1.15
Type of Duty	Continuous
Starting of Motor	Direct on line
Synchronous Speed (vsyn)	3600 r/min
Output Power	5 Hp

Mechanical

Drive End Flange Type	C-Face
Enclosure Type	TEFC
Frame Material	Cast_Iron
Motor Frame Size	184TC
Motor Base Type	Footless
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	0 in
Product Net Weight	46 lb
Product Net Width	0 in
