ABB AOM3617T

1HP,860RPM,3PH,60HZ,182T,3622M,TEAO

MPN: AOM3617T
Category: HVAC General Purpose

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare ABB parts? We buy surplus →

What is the ABB AOM3617T?

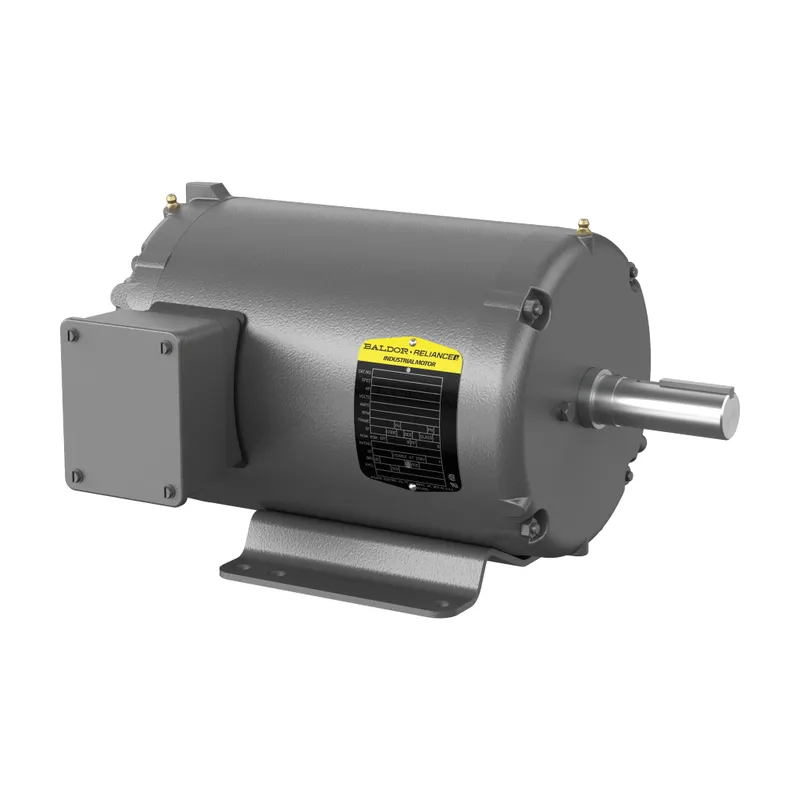

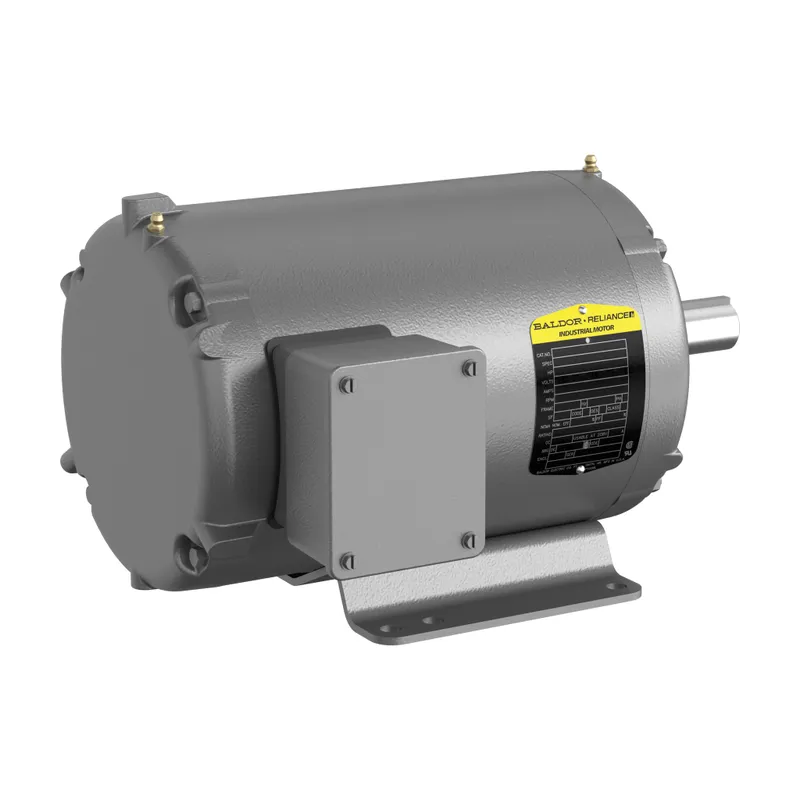

Air-Over Fan 1 Hp 208 V (AOM3617T)

Specifications

Ordering

Catalog Number	AOM3617T
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015100
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Efficiency Level	Energy Efficiency (NEMA 12-11), Not Regulated / Exempt, Undefined Efficiency
Insulation Class	F
NEMA Design Code	B
Number of Phases	3-phase
Number of Poles	8P
Number of Speeds	Single Speed
Power Factor	56 %
Rated Efficiency	74 %
Service Factor	1.00
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	900 r/min
Output Power	1 Hp

Mechanical

Drive End Flange Type	Standard
Enclosure Type	TEAO
Frame Material	Steel
Motor Frame Size	182T
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	13.123 in
Product Net Weight	62 lb
Product Net Width	13.75 in
Dimension Diagram	36LYG256

Certificates and Declarations

Certification Agency	CSA, UR
IDEA Granular Category Code (IGCC)	1318 >> Heating and cooling system motor AC
ETIM 7	EC001851 - Electric motor

AOM3617T: frequently asked questions

When can AOM3617T be shipped?

AOM3617T is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up AOM3617T in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for AOM3617T and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for AOM3617T, subject to availability and destination.
