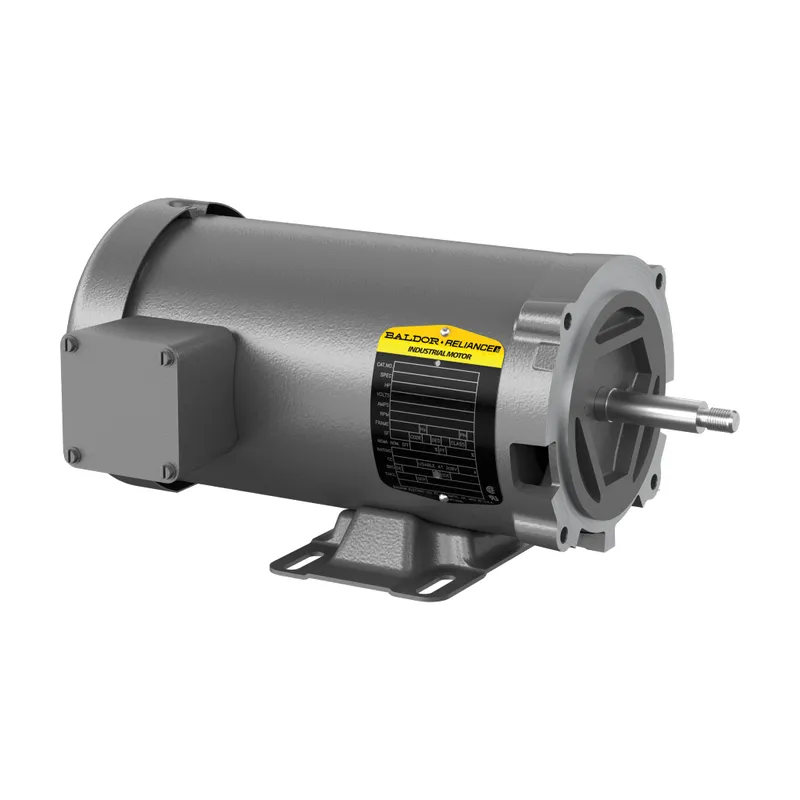

ABB CJM3120

1.5HP,3450RPM,3PH,60HZ,56J,3424M,OP

MPN
CJM3120
Category
Jet pump
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare ABB parts? We buy surplus →

What is the ABB CJM3120?

Pump Motor 1.5 Hp 230 V (CJM3120)

Specifications

Ordering

Catalog NumberCJM3120
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85015220
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Duty Time60 Min
Efficiency LevelIE1, Not Regulated / Exempt
Insulation ClassB
NEMA Design CodeB
Number of Phases3-phase
Number of Poles2P
Number of SpeedsSingle Speed
Power Factor89 %
Rated Efficiency81.50 %
Service Factor1.15
Type of DutyContinuous
Starting of MotorDirect On Line
Synchronous Speed (vsyn)3600 r/min
Output Power1.5 Hp

Mechanical

Drive End Flange TypeC-Face
Enclosure TypeODP
Frame MaterialSteel
Motor Frame Size56J
Motor Base TypeFoot Mounted
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height11.25 in
Product Net Weight31 lb
Product Net Width10.5 in
Dimension Diagram34LYF029

Certificates and Declarations

Certification AgencyCURUS, UR
IDEA Granular Category Code (IGCC)1320 >> Pump motor AC
ETIM 7EC001851 - Electric motor
