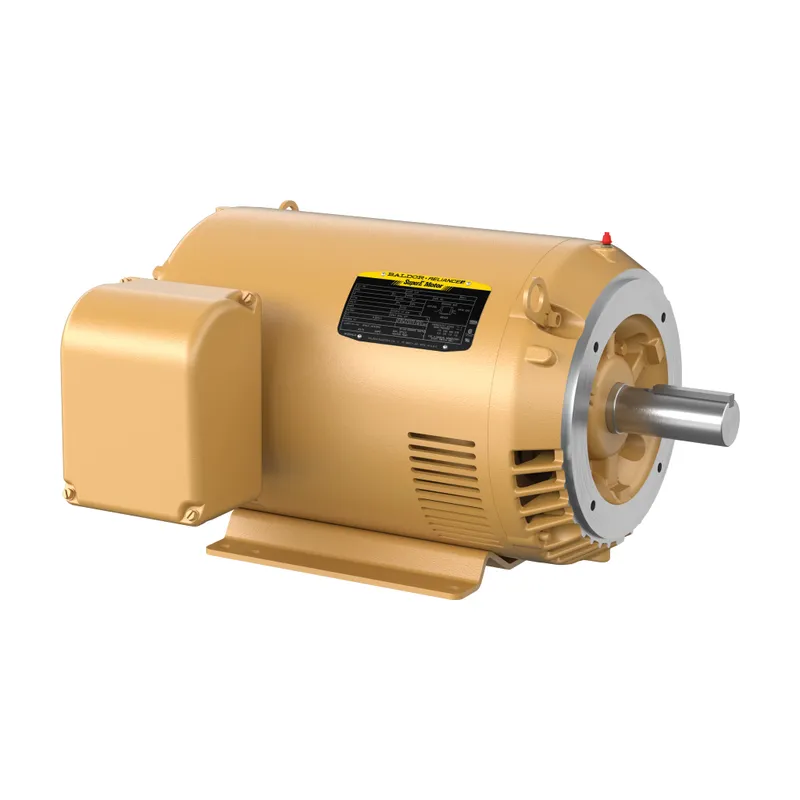

ABB CEM2524T-G

15HP,1180RPM,3PH,60HZ,284TC,OPSB,F1

MPN
CEM2524T-G
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare ABB parts? We buy surplus →

What is the ABB CEM2524T-G?

Shaft Ground 15 Hp 230 V (CEM2524T-G)

Specifications

Ordering

Catalog NumberCEM2524T-G G
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85015220
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Duty Time60 Min
Efficiency LevelPremium Efficiency (NEMA 12-12)
Insulation ClassH
NEMA Design CodeB
Number of Phases3-phase
Number of Poles6P
Number of SpeedsSingle Speed
Power Factor75 %
Rated Efficiency91.70 %
Service Factor1.15
Type of DutyContinuous
Starting of MotorDirect On Line
Synchronous Speed (vsyn)1200 r/min
Output Power15 Hp

Mechanical

Drive End Flange TypeC-Face
Enclosure TypeODP
Frame MaterialSteel
Motor Frame Size284TC
Motor Base TypeFoot Mounted
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height21 in
Product Net Weight297 lb
Product Net Width24 in
Dimension Diagram40LY-000-046

Certificates and Declarations

Certification AgencyCURUSEEV, NEMA_PREMIUM, UR
ETIM 7EC001851 - Electric motor

CEM2524T-G: frequently asked questions

When can CEM2524T-G be shipped?

CEM2524T-G is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up CEM2524T-G in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for CEM2524T-G and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CEM2524T-G, subject to availability and destination.

More ABB parts

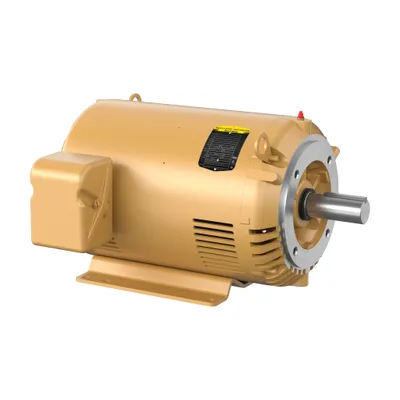

ABB CEM2515T-G – 20HP,1765RPM,3PH,60HZ,256TC,OPSB,F1
ABB
CEM2515T-G

20HP,1765RPM,3PH,60HZ,256TC,OPSB,F1

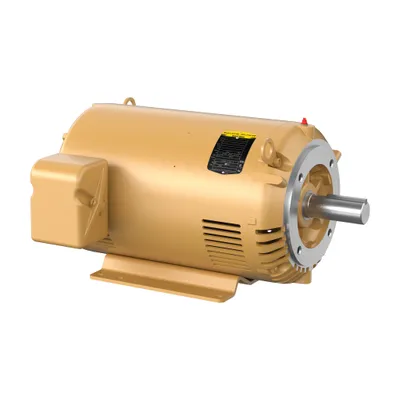

ABB CEM2516T – 25HP,3515RPM,3PH,60HZ,256TC,3938M,O
