ABB ECR91508TR-4

150HP,890RPM,3PH,60HZ,449T,A44160M

MPN
ECR91508TR-4
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare ABB parts? We buy surplus →

What is the ABB ECR91508TR-4?

Severe Duty Motor 150 Hp 460 V (ECR91508TR-4)

Specifications

Ordering

Catalog NumberECR91508TR-4
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85015381
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Duty Time60 Min
Efficiency LevelPremium Efficiency (NEMA 12-12)
Insulation ClassF
NEMA Design CodeA A
Number of Phases3-phase
Number of Poles8P
Number of SpeedsSingle Speed
Power Factor73 %
Rated Efficiency94.50 %
Service Factor1.15
Type of DutyContinuous
Starting of MotorDirect On Line
Synchronous Speed (vsyn)900 r/min
Output Power150 Hp

Mechanical

Drive End Flange TypeStandard
Enclosure TypeTEFC
Frame MaterialIron
Motor Frame Size449T
Motor Base TypeFoot Mounted
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height52.5 in
Product Net Weight2648 lb
Product Net Width55 in
Dimension Diagram617427-091

Certificates and Declarations

Certification AgencyCURUSEEV
IDEA Granular Category Code (IGCC)1328 >> Multi phase motor AC
ETIM 7EC001851 - Electric motor

ECR91508TR-4: frequently asked questions

When can ECR91508TR-4 be shipped?

ECR91508TR-4 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up ECR91508TR-4 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for ECR91508TR-4 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ECR91508TR-4, subject to availability and destination.

More ABB parts

ABB ECR91258TR-4 – 125HP,900RPM,3PH,60HZ,447T,TEFC,F1
ABB
ECR91258TR-4

125HP,900RPM,3PH,60HZ,447T,TEFC,F1

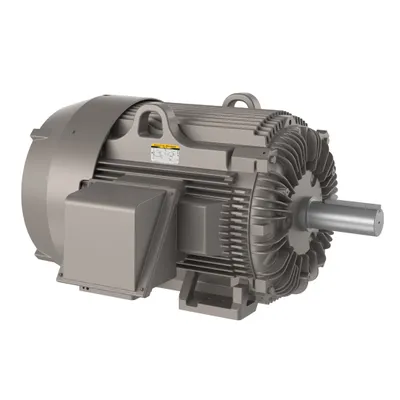

ABB ECR91504T-4 – 150HP,1785RPM,3PH,60HZ,445T,A4488M
ABB
ECR91504T-4

150HP,1785RPM,3PH,60HZ,445T,A4488M

ABB ECR91504TR-4 – 150HP,1785RPM,3PH,60HZ,445T,A4488M
ABB
ECR91504TR-4

150HP,1785RPM,3PH,60HZ,445T,A4488M

ABB ECR91506TR-4 – 150HP,1190RPM,3PH,60HZ,447T,A44112M
ABB
ECR91506TR-4

150HP,1190RPM,3PH,60HZ,447T,A44112M

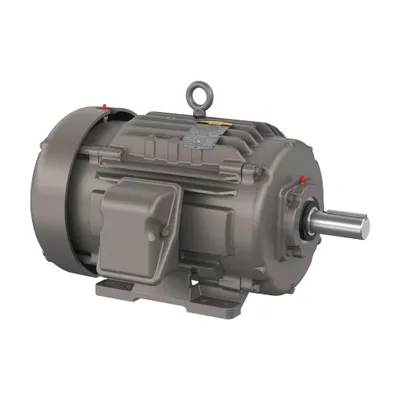

ABB ECR9154T – 15HP,1765RPM,3PH,60HZ,254T,0948M,TE
ABB
ECR9154T

15HP,1765RPM,3PH,60HZ,254T,0948M,TE

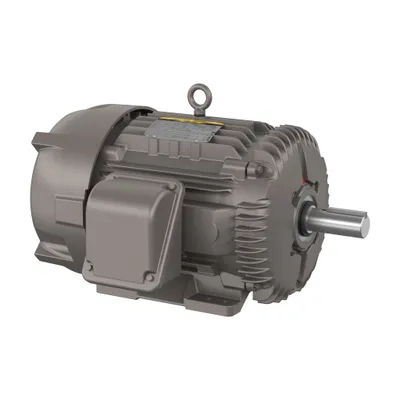

ABB ECR9156T – 15HP,1175RPM,3PH,60HZ,284T,1068M,TE
