ABB XT31002TS

100HP,3560RPM,3PH,60HZ,405TS,A40060

MPN
XT31002TS
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare ABB parts? We buy surplus →

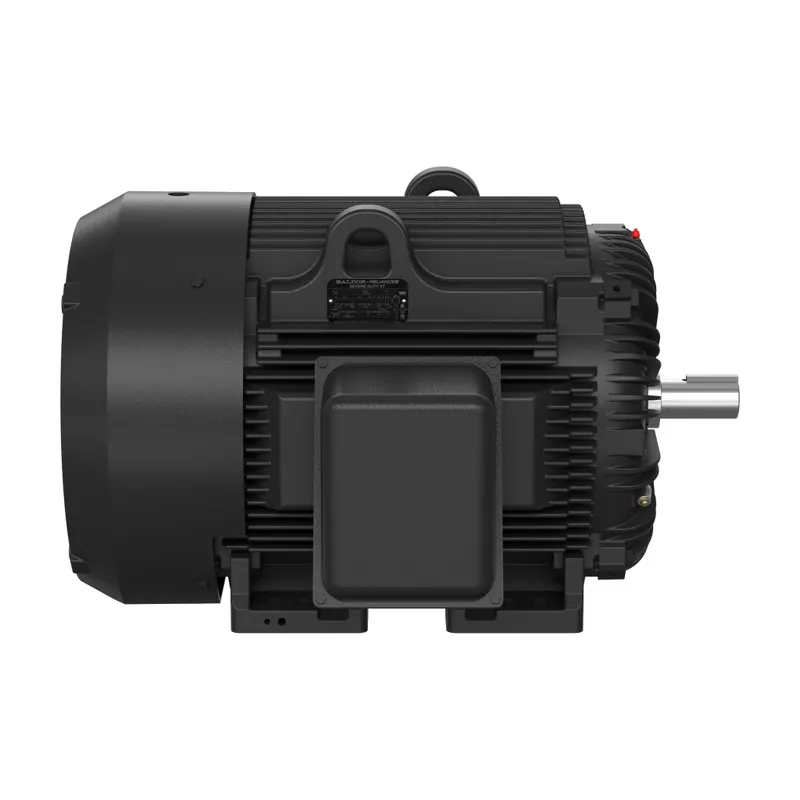

What is the ABB XT31002TS?

100HP,3560RPM,3PH,60HZ,405TS,A40060M,TEF

Specifications

Additional Information

ABB Type Designation100HP,3560RPM,3PH,60HZ,405TS,A40060
Ambient Temperature40 °C
Bearing6313, Ball
Bearing NDE6313
Brake PresentNo
Brand / LabelBaldor-Reliance
Catalog NumberXT31002TS
Certification AgencyCCSA US, CSA EEV, NEMA PREMIUM, UR
Country or Territory of OriginUnited States
Customs Tariff Number85015230
Drive End Flange TypeStandard
Efficiency LevelPremium Efficiency (NEMA 12-12)
Enclosure TypeTEFC
Frame MaterialIron
Frame SizeUndefined
Global Commercial AliasXT31002TS
Gross Volume62769 in³
Gross Weight1211 lb
Insulation ClassF
Invoice Description100HP,3560RPM,3PH,60HZ,405TS,A40060M,TEF
Made To OrderNo
Maximum Speed4500 r/min
Medium DescriptionFrame Size 405Ts, Standard Mounting, 3Phase Phase, TEFC Enclosure, (XT31002TS)
Minimum Order Quantity1 piece
Motor Base TypeRigid
Motor Frame Size405TS
Mounting OrientationHorizontal
Mounting PositionF1
NEMA Design CodeB
Number of Phases3-phase
Number of Poles2P
Number of Poles (High)2
Number of SpeedsSingle Speed
Order Multiple1 piece
Output Power100 Hp
Power Factor90 %
Product NameLV Severe Duty Motors
Product Net Depth / Length49 in
Product Net Height30.5 in
Product Net Weight1211 lb
Product Net Width42 in
Product TypeUndefined
Quote OnlyNo
Rated Current (In)110 A A
Rated Efficiency94.10 %
Rated Speed3560 r/min
Selling Unit of Measurepiece
Service Factor1.15
Shaft Diameter2.13 in
Short DescriptionFrame Size 405Ts, Standard, 3Phase PH, TEFC,
StandardsNEMA
Starting of MotorDirect On Line
Stocked At (Warehouses)China, Fort Smith, Arkansas, United States, Alaska, United States
Synchronous Speed (vsyn)3600 r/min
Type of DutyContinuous
Voltage Rating230 V, 460 V V

XT31002TS: frequently asked questions

When can XT31002TS be shipped?

XT31002TS is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up XT31002TS in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for XT31002TS and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for XT31002TS, subject to availability and destination.
