B&RUsed

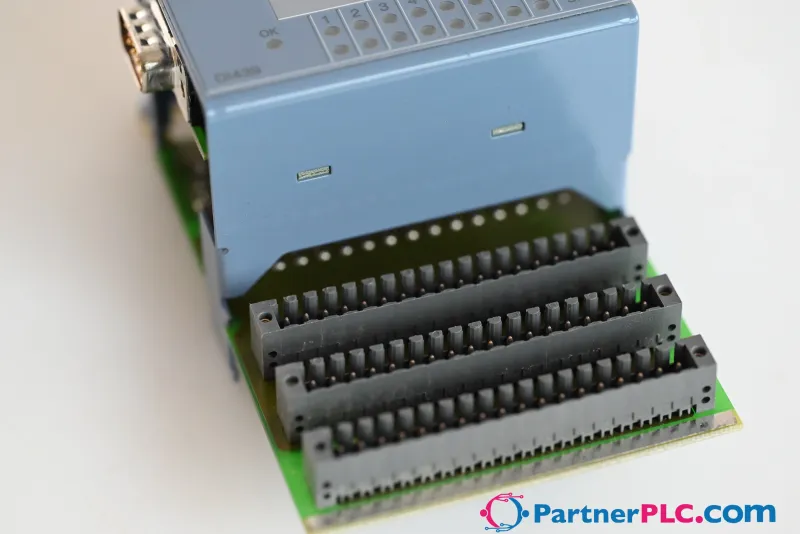

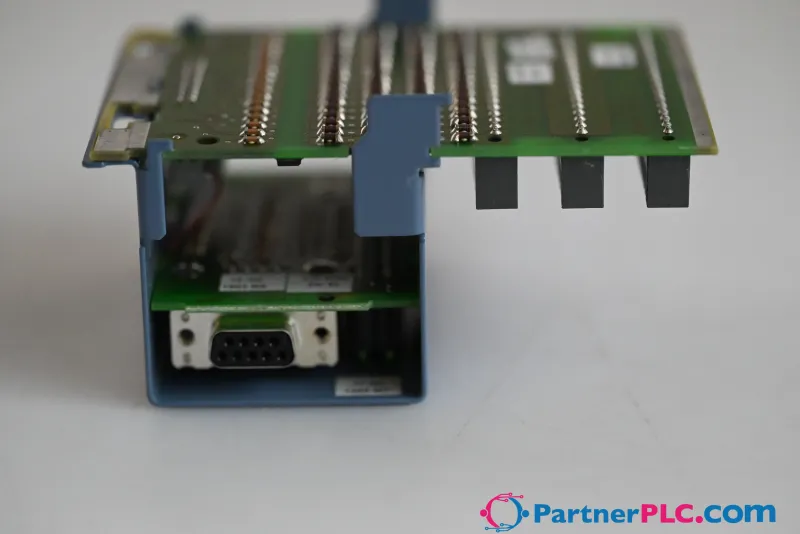

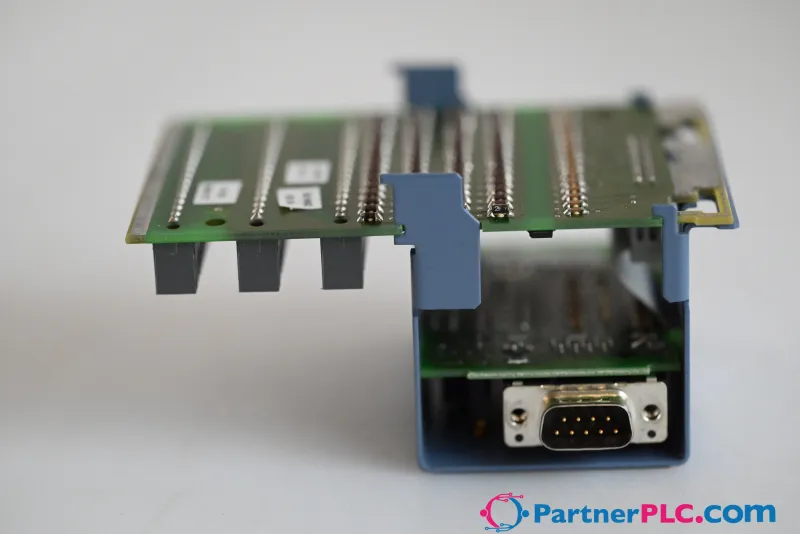

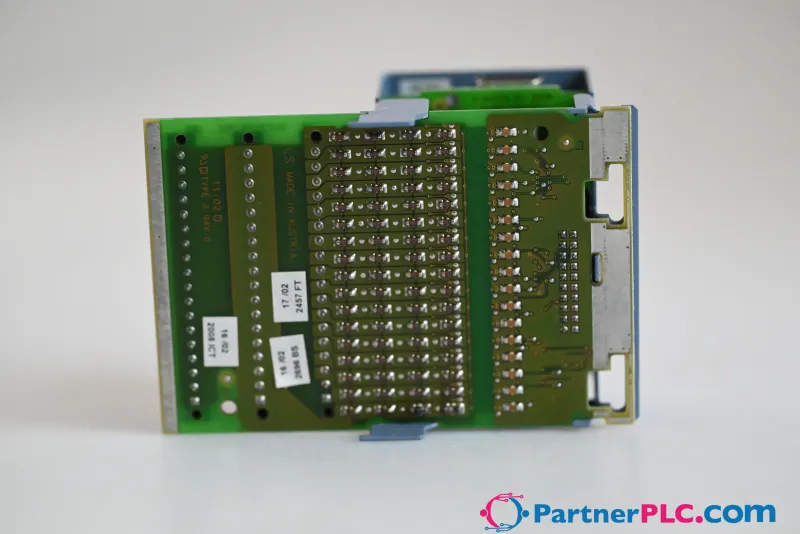

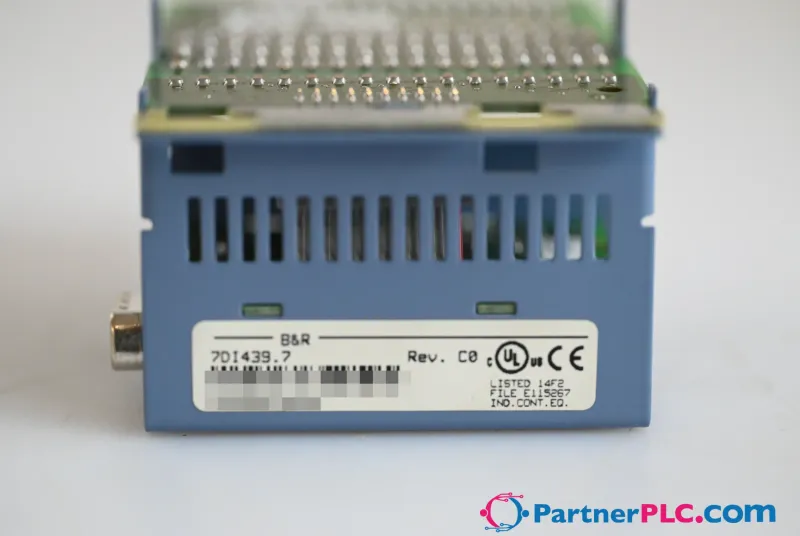

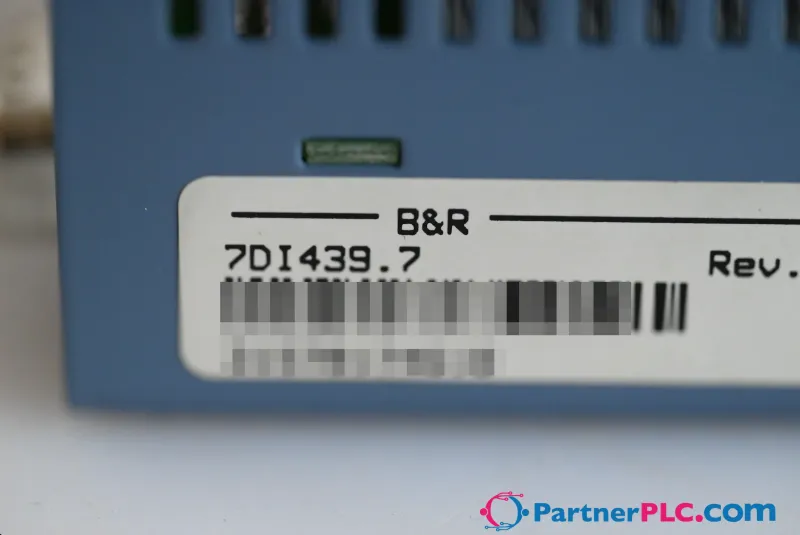

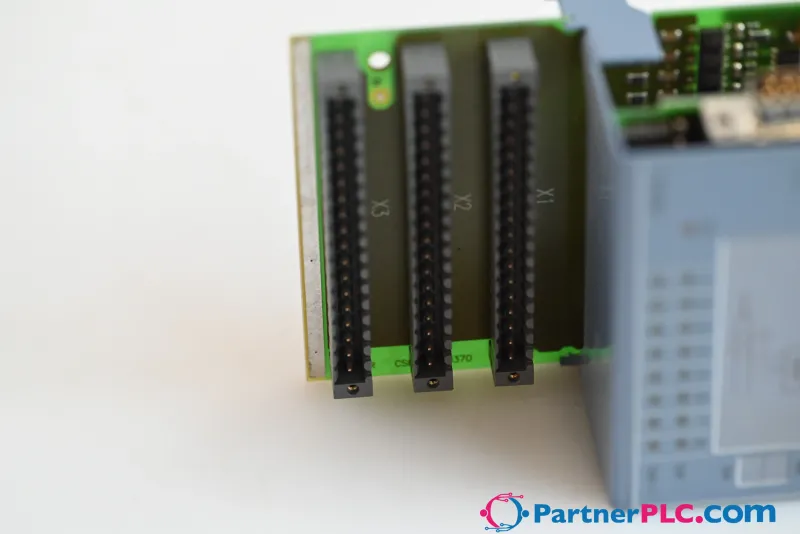

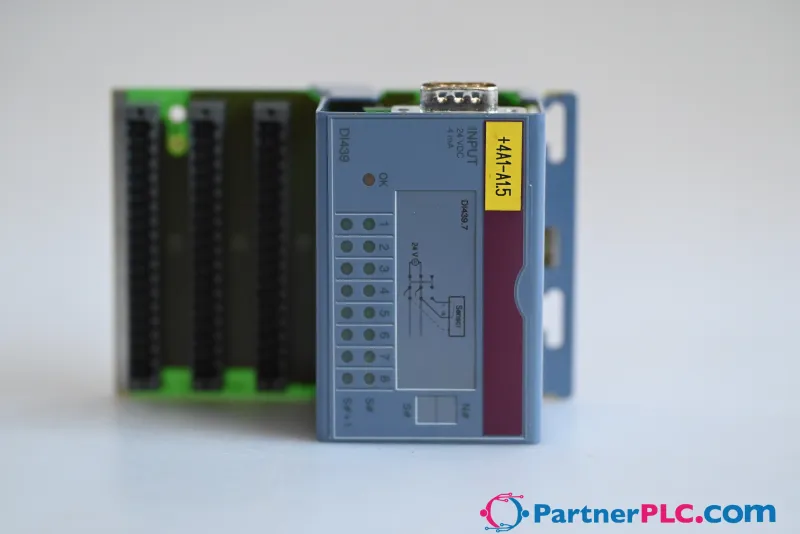

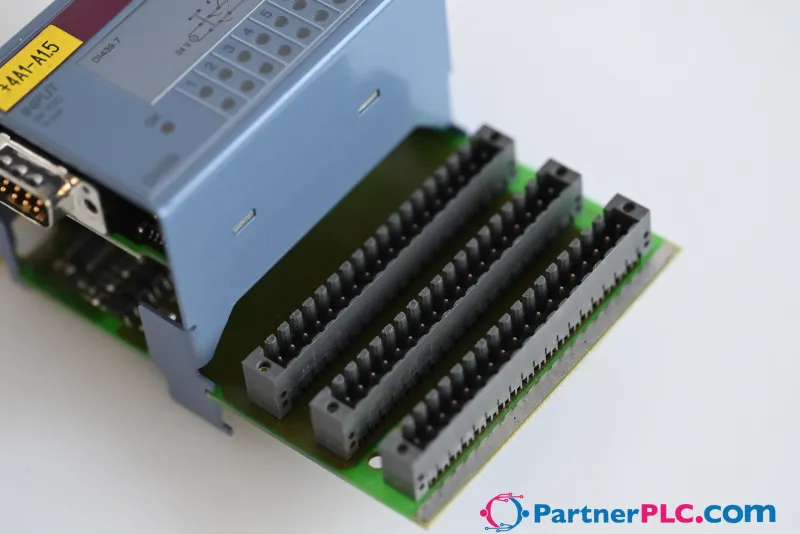

B&R 7DI439.7

Digital I/O Module

MPN: 7DI439.7
Category: Digital I/O Modules

€23.32excl. VAT & shipping

In stock — 20 available·Ships within 1 business day

Need a larger quantity or a formal quote?

Request a Quote

3-month warranty
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

What is the B&R 7DI439.7?

Digital I/O Module

Specifications

General Information

Short Description	2003 digital input module, 16 inputs 24 VDC, 1 ms, sink/source, Order terminal blocks separately!
C-UL-US Listed	in preparation
B&R ID Code	$ED

Static Characteristics

Module Type	B&R 2003 I/O Module
Wiring	Sink or source
Input Voltage – Minimum	18 VDC
Input Voltage – Nominal	24 VDC
Input Voltage – Maximum	30 VDC
Switching Threshold – LOW	<5 V
Switching Threshold – HIGH	>15 V
Switching Threshold – Input Delay	Max. 1 ms (at 18 - 30 V)
Switching Threshold – Input Current at Nominal Voltage	Approx. 4 mA (sink/source)
Switching Threshold – Voltage Monitoring (LED: U-OK)	Yes Supply voltage >18 V
Switching Threshold – Power Consumption	Max. 0.4 W

Operating Characteristics

Electrical Isolation

Input - PCC

Mechanical Characteristics

Dimensions

B&R 2003 single width

Accessories

Required accessories (order separately)

7TB718.91	Terminal blocks — The single-row, 18-pin 7TB718 terminal block is used to connect to I/O modules. Removal is simplified by two ejection levers on the termina…
7TB718.9	Terminal blocks — The single-row, 18-pin 7TB718 terminal block is used to connect to I/O modules. Removal is simplified by two ejection levers on the termina…

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet 7DI439.7PDF · 432 KB · 1.0 (06/08/2004) - EN
