B&R 5cfcrd.0128-03

Memory Modules & Card

MPN: 5cfcrd.0128-03
Category: Memory Modules & Cards

€31.80excl. VAT & shipping

In stock — 1 available·Ships within 1 business day

Need a larger quantity or a formal quote?

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

What is the B&R 5cfcrd.0128-03?

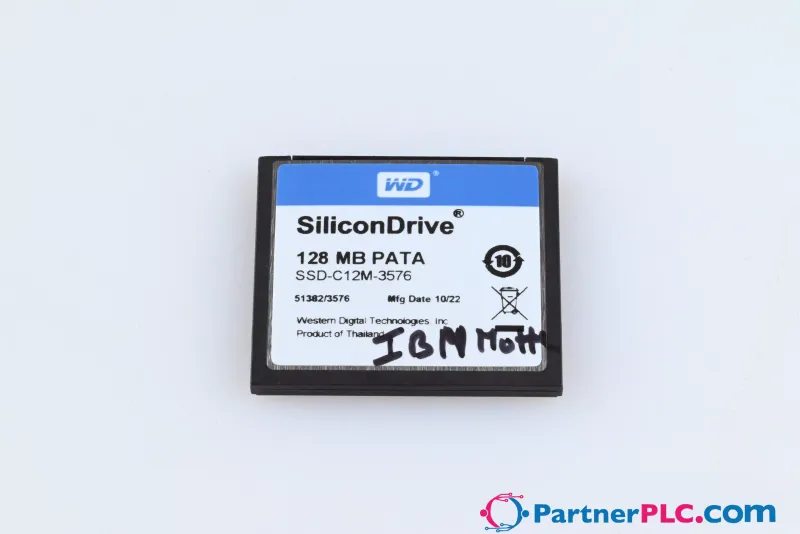

CompactFlash 128 MB Western Digital (SLC)

Specifications

General information

Continuous reading – Typical	8 MB/s
Continuous writing – Typical	6 MB/s
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – DNV	Temperature: A (0 to 45°C); Humidity: B (up to 100%); Vibration: A (0.7 g); EMC: B (bridge and open deck)
Capacity	128 MB
Data retention	10 years (note: Per JEDEC (JESD47), EOL conditions are not permitted to be reached before 18 months. A higher average daily write workload reduces the expected service life and data retention of the data storage medium.)
Data reliability	<1 unrecoverable error per 10 14 bits read
Lifetime monitoring	Yes
MTBF	>4,000,000 hours (at 25°C)
Servicing	None
Supported operating modes	PIO mode 0-4, multiword DMA mode 0-2

Endurance

Erase/Write cycles – Typical	>2,000,000
SLC flash memory	Yes
Wear leveling	Static
Error-correcting code (ECC)	Yes
S.M.A.R.T. support	No

Support

Operating systems – Windows 7 32-bit	No
Operating systems – Windows 7 64-bit	No
Operating systems – Windows Embedded Standard 7 32-bit	No
Operating systems – Windows Embedded Standard 7 64-bit	No
Operating systems – Windows XP Professional	No
Operating systems – Windows XP Embedded	No
Operating systems – Windows Embedded Standard 2009	No
Operating systems – Windows CE 6.0	Yes
Operating systems – Windows CE 5.0	Yes
Software – PVI Transfer	≥V2.57 (part of PVI Development Setup ≥ V2.5.3.3005)
Software – B&R Embedded OS Installer	≥V2.21
Hardware	MP100/200, PP100/200, PP300/400, PP500, PPC300, PPC700, PPC725, PPC800, Provit 2000, Provit 5000, APC620, APC680, APC810, APC820

Ambient conditions

Temperature – Operation	0 to 70°C
Temperature – Storage	-50 to 100°C
Temperature – Transport	-50 to 100°C
Relative humidity – Operation	8 to 95%, non-condensing
Relative humidity – Storage	8 to 95%, non-condensing
Relative humidity – Transport	8 to 95%, non-condensing
Vibration – Operation	Max. 16.3 g (159 m/s² 0-peak)
Vibration – Storage	Max. 30 g (294 m/s² 0-peak)
Vibration – Transport	Max. 30 g (294 m/s² 0-peak)
Shock – Operation	Max. 1000 g (9810 m/s² 0-peak)
Shock – Storage	Max. 3000 g (29430 m/s² 0-peak)
Shock – Transport	Max. 3000 g (29430 m/s² 0-peak)
Elevation – Operation	Max. 24,383 m

Mechanical properties

Dimensions – Width	42.8 ±0.10 mm
Dimensions – Length	36.4 ±0.15 mm
Dimensions – Height	3.3 ±0.10 mm
Weight	11.4 g
