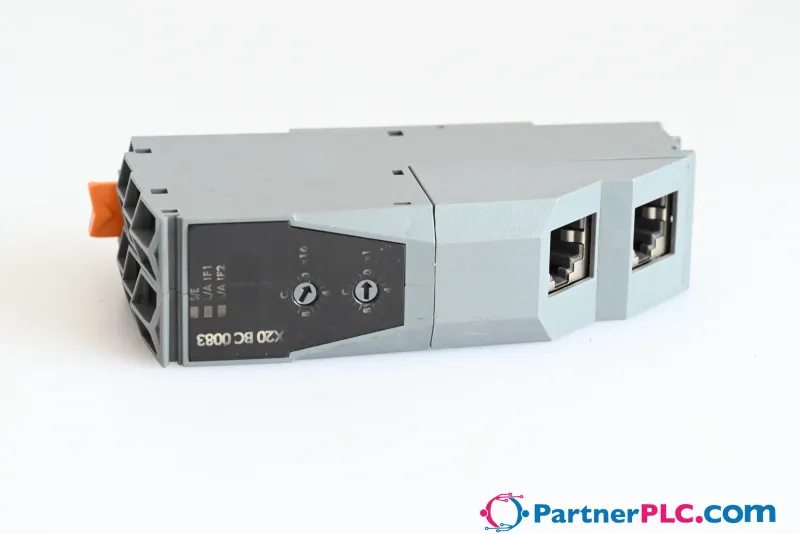

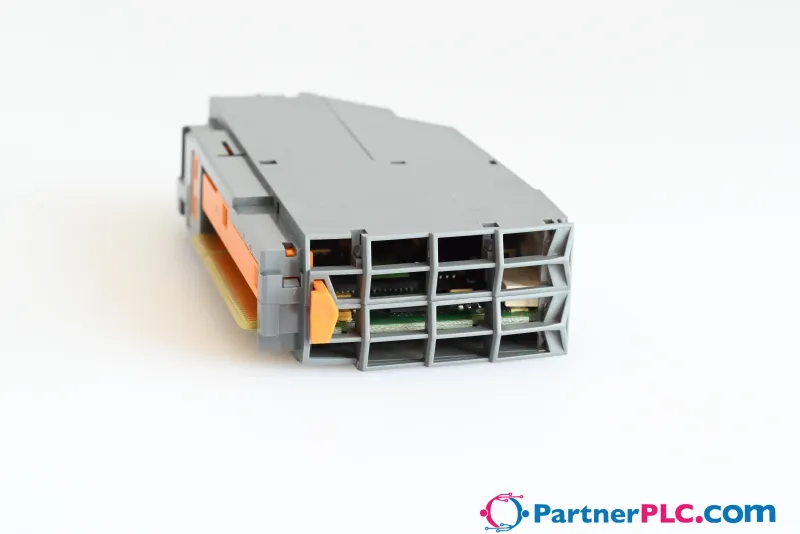

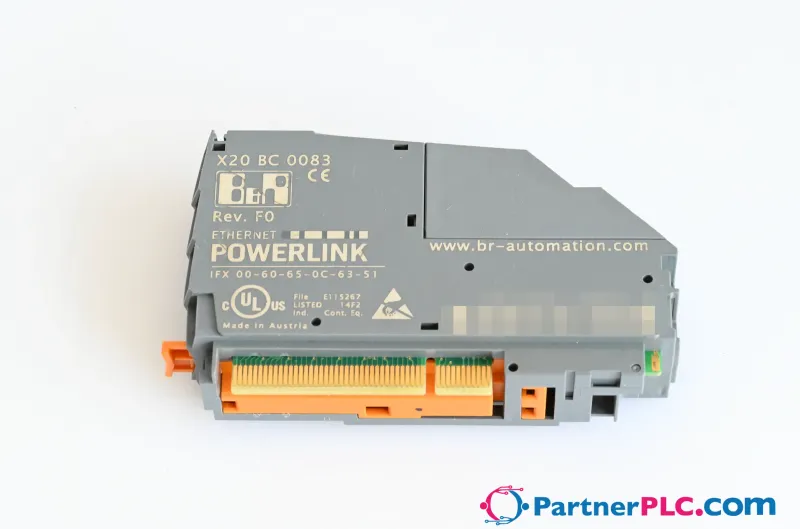

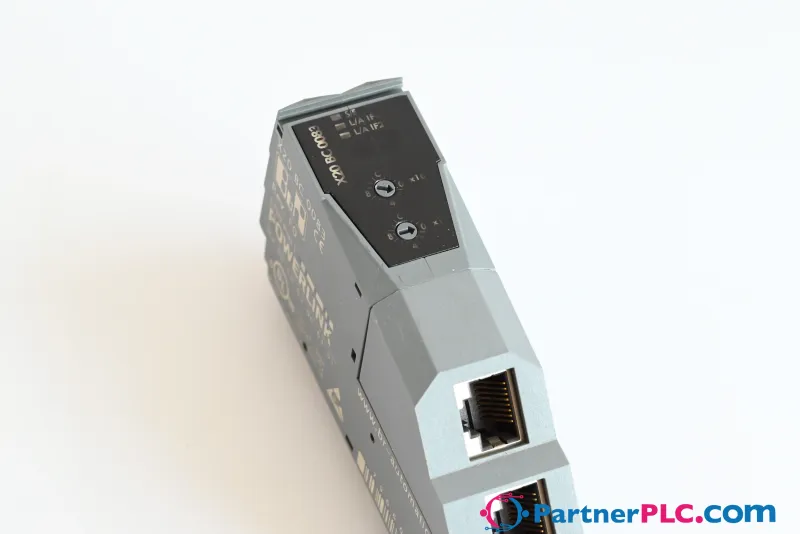

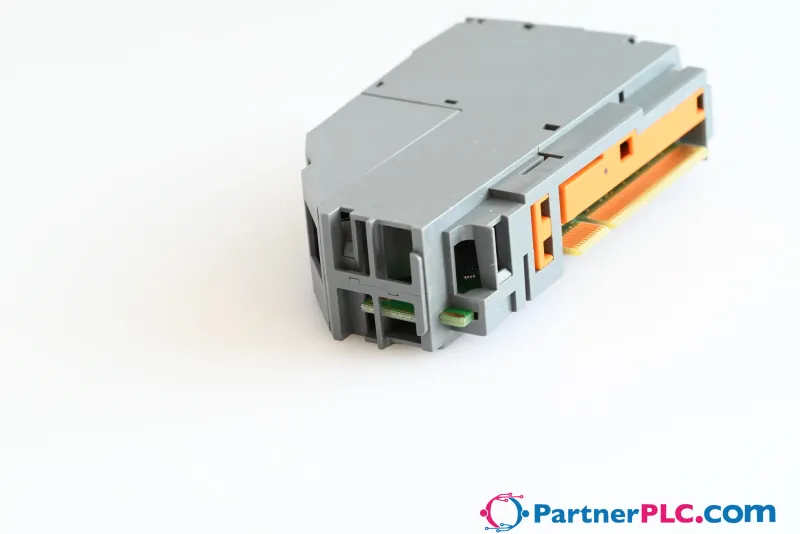

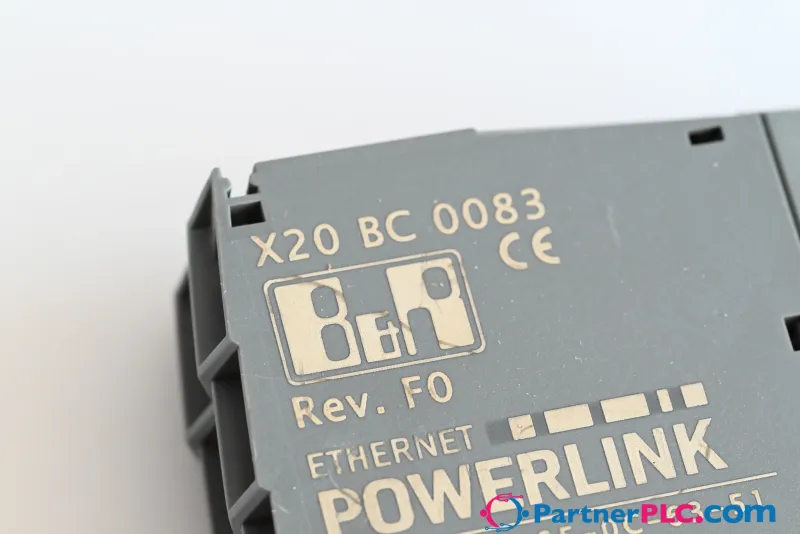

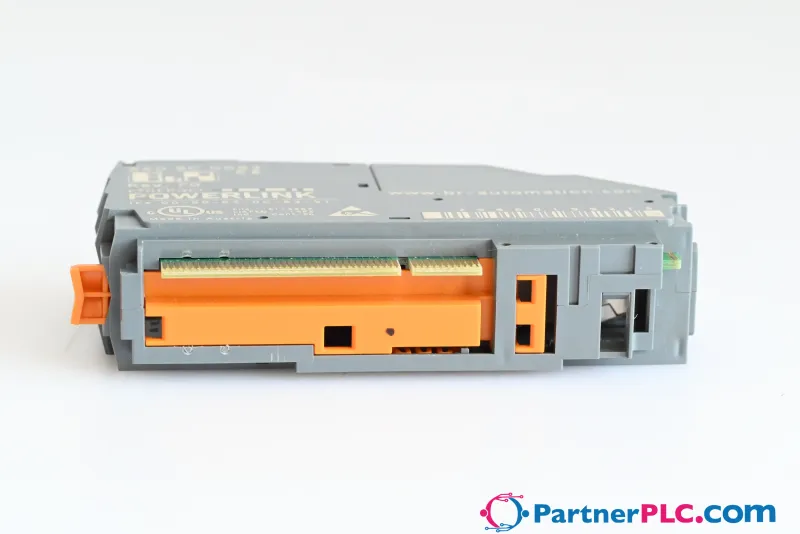

B&R X20BC0083

POWERLINK I/O configuration and firmware update via the fieldbus Integrated hub for economical wiring The…

MPN: X20BC0083
Category: Communication Modules

€68.90excl. VAT & shipping

In stock — 2 available·Ships within 1 business day

Need a larger quantity or a formal quote?

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

What is the B&R X20BC0083?

POWERLINK I/O configuration and firmware update via the fieldbus Integrated hub for economical wiring The bus controller makes it possible to connect X2X Link I/O nodes to POWERLINK. It is also possible to operate the X2X Link cycle synchronously 1:1 or synchronous to POWERLINK using a prescaler. POWERLINK is a standard protocol for Fast Ethernet equipped with hard real-time characteristics. The POWERLINK Standardization Group (EPSG) ensures that the standard remains open and is continually developed:: www.ethernet-powerlink.org.

Specifications

Short description

Bus controller

POWERLINK (V1/V2) controlled node

General information

Diagnostics – Module status	Yes, using LED status indicator and software
Diagnostics – Bus function	Yes, using LED status indicator and software
Support – Dynamic node allocation (DNA)	Yes
Power consumption – Bus	2 W
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5
Certifications – DNV	Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: B (4 g); EMC: B (bridge and open deck)
Certifications – CCS	Yes
Certifications – LR	ENV1
Certifications – KR	Yes
Certifications – ABS	Yes
Certifications – BV	EC33B ; Temperature: 5 - 55°C; Vibration: 4 g; EMC: Bridge and open deck
Certifications – KC	Yes
B&R ID code	0x1F1E
Status indicators	Module status, bus function
Additional power dissipation caused by actuators (resistive) [W]	-

Interfaces

Transfer – Physical layer	100BASE-TX
Transfer – Half-duplex	Yes
Transfer – Full-duplex	No
Transfer – Autonegotiation	Yes
Transfer – Auto-MDI/MDIX	Yes
Min. cycle time – Fieldbus	200 μs (note: The minimum cycle time specifies how far the bus cycle can be reduced without communication errors occurring.)
Min. cycle time – X2X Link	200 μs (note: The minimum cycle time specifies how far the bus cycle can be reduced without communication errors occurring.)
Fieldbus	POWERLINK (V1/V2) controlled node
Type	Type 2Communication / POWERLINK / General information / Hardware - CN" in Automation Help."> (note: For additional information, see section)

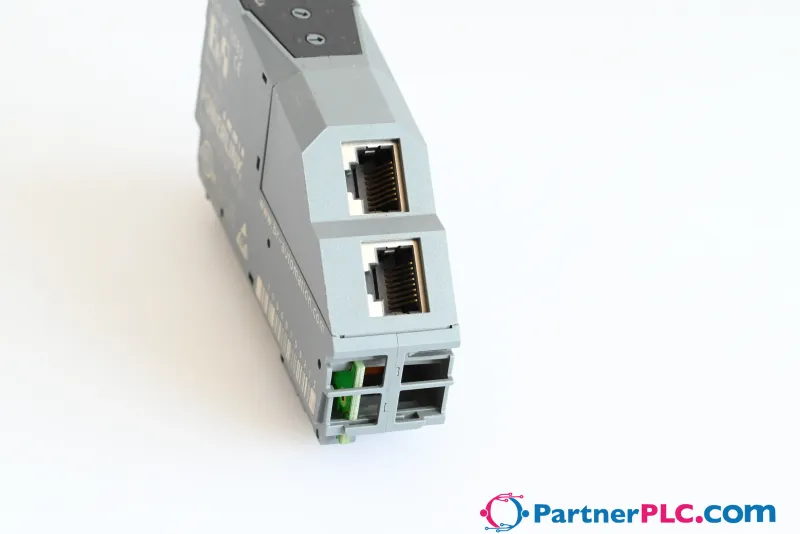

Variant	2x shielded RJ45 (hub)
Line length	Max. 100 m between 2 stations (segment length)
Transfer rate	100 Mbit/s
Hub propagation delay	0.96 to 1 µs
Synchronization between bus systems possible	Yes

Electrical properties

Electrical isolation

POWERLINK isolated from bus and I/O

Operating conditions

Mounting orientation – Horizontal	Yes
Mounting orientation – Vertical	Yes
Installation elevation above sea level – 0 to 2000 m	No limitation
Installation elevation above sea level – >2000 m	Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature – Horizontal mounting orientation	-25 to 60°C
Temperature – Vertical mounting orientation	-25 to 50°C
Temperature – Derating	-
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C
Relative humidity – Operation	5 to 95%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Note	Order 1x terminal block X20TB12 separately. ; Order 1x power supply module X20PS9400 or X20PS9402 separately. ; Order 1x bus base X20BB80 separately.
Pitch	37.5 +0.2 mm (note: Pitch is based on the width of bus base X20BB80. In addition, power supply module X20PS9400 or X20PS9402 is always required for the bus controller.)

Accessories

Required accessories (order separately)

X20PS9402	System modules for bus controllers — Supply for the bus controller, X2X Link and internal I/O supply; Low-cost supply module for small X20 system; Feed and bus controller / X2X…
X20PS9400	System modules for bus controllers — Supply for the bus controller, X2X Link and internal I/O supply; Feed and bus controller / X2X Link supply electrically isolated; Redundanc…
X20BB80	System modules for bus controllers — Bus base The following modules are used on the bus module: Base module (BC, HB, etc.); Supply module The left and right end cover plates ar…
X20TB12	Terminal blocks — Tool-free wiring with push-in technology; Simple wire release using lever; Ability to label each terminal; Plain text labeling also possibl…
