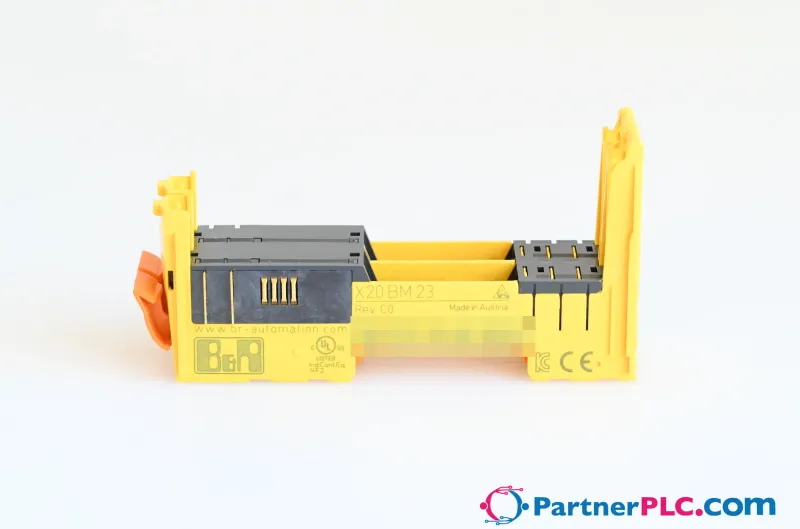

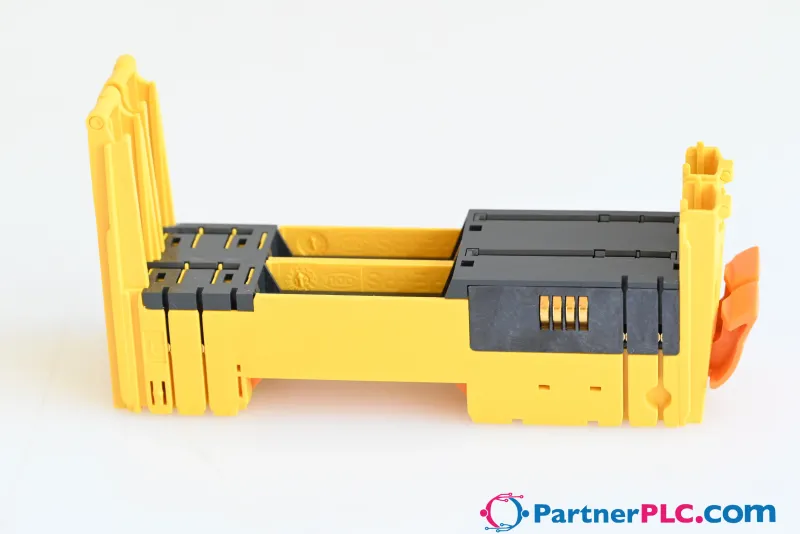

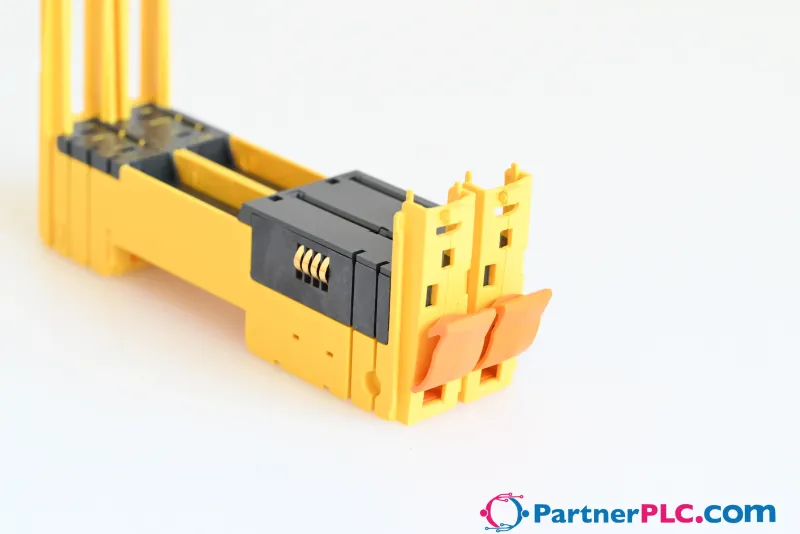

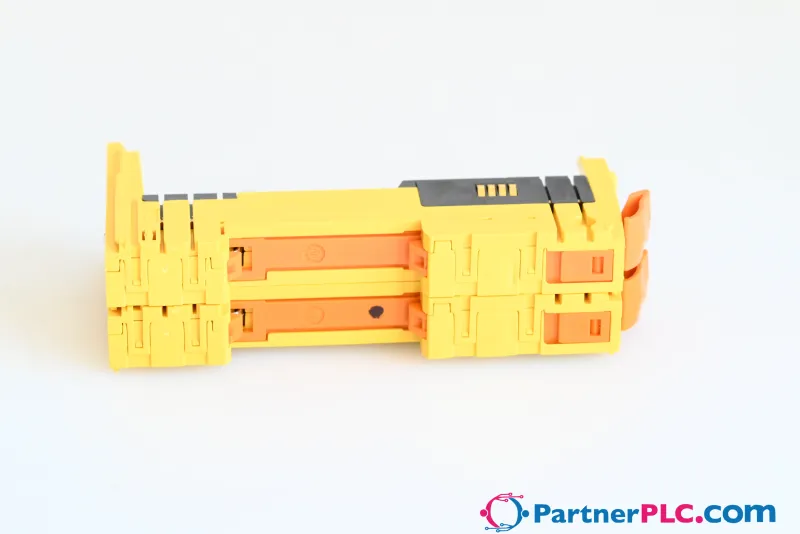

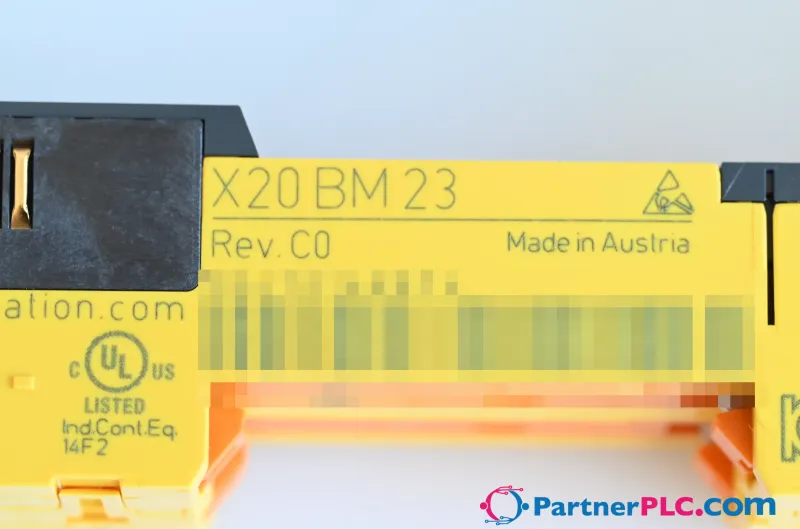

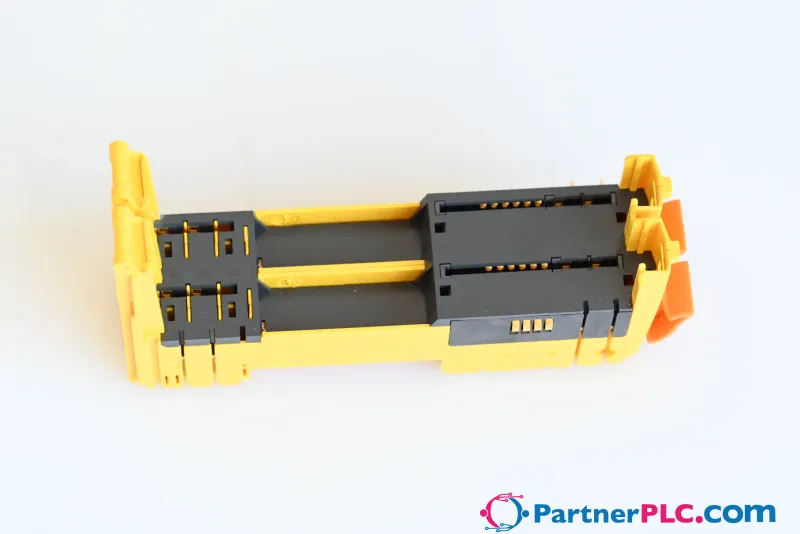

X20BM23 | B&R Industrial Automation
Request a Quote
Quick facts
| Availability | In stock — 1 available |
| Category | Communication Modules |
| Warranty | 12-month |
| Weight | 0.2 kg |
Shipping & availability
When can X20BM23 be shipped?
X20BM23 is in stock and typically ships within 1 business day via UPS, DHL or FedEx, worldwide.
Can I pick up X20BM23 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — alongside standard UPS, DHL and FedEx shipping, express (next-day) delivery is available at checkout for in-stock items like X20BM23.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X20BM23, subject to availability and destination.
• Bus module for SafeIO power supply modules
• The internal I/O power supply is interrupted to the left.
• For creating potential groups
The bus module is the base for all SafeIO power supply modules. The internal I/O power supply is interrupted to the left.
Specifications
Short description
| Bus module | Power supply bus module, for X20 SafeIO power supply modules, internal I/O power supply interrupted to the left |
General information
| Power consumption – Bus | 0.13 W |
| Power consumption – Internal I/O | - |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – ATEX | Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X |
| Certifications – UL | cULus E115267; Industrial control equipment; cULus E537419; Engine generator controller |
| Certifications – HazLoc | cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5 |
| Certifications – DNV | Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: B (4 g); EMC: B (bridge and open deck) |
| Certifications – CCS | Yes |
| Certifications – LR | ENV1 |
| Certifications – KR | Yes |
| Certifications – ABS | Yes |
| Certifications – BV | EC33B ; Temperature: 5 - 55°C; Vibration: 4 g; EMC: Bridge and open deck |
| Certifications – KC | Yes |
| Additional power dissipation caused by actuators (resistive) [W] | - |
I/O power supply
| Nominal voltage | 24 VDC |
| Permissible contact load | 10 A |
Operating conditions
| Mounting orientation – Horizontal | Yes |
| Mounting orientation – Vertical | Yes |
| Installation elevation above sea level | 0 to 2000 m, no limitation |
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Horizontal mounting orientation | -25 to 60°C |
| Temperature – Vertical mounting orientation | -25 to 50°C |
| Temperature – Derating | - |
| Temperature – Storage | -40 to 85°C |
| Temperature – Transport | -40 to 85°C |
| Relative humidity – Operation | 5 to 95%, non-condensing |
| Relative humidity – Storage | 5 to 95%, non-condensing |
| Relative humidity – Transport | 5 to 95%, non-condensing |
Mechanical properties
| Pitch | 25 +0.2 mm |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
| Data sheet X20(c)BMxx - Legacy | PDF · 1 MB · 1.141 (05/03/2019) - EN |
| Data sheet X20(c)BMxx - mapp Safety | PDF · 1 MB · 2.14 (12/16/2022) - EN |
| X20 Package leaflet ATEX/CSA | PDF · 2 MB · 1.4 (09/17/2024) |
| X20 System User´s Manual | PDF · 50 MB · 4.40 (03/10/2026) - EN |
CAD & dimension drawings
| 3D file STEP X20BMxx | ZIP · 32 KB · 1.00 (05/07/2013) |
| DFX File Bus module | ZIP · 5 KB · 1.00 (05/27/2013) |
| Dimensions PDF X20 Bus module | PDF · 46 KB · 1.00 (05/27/2013) |
