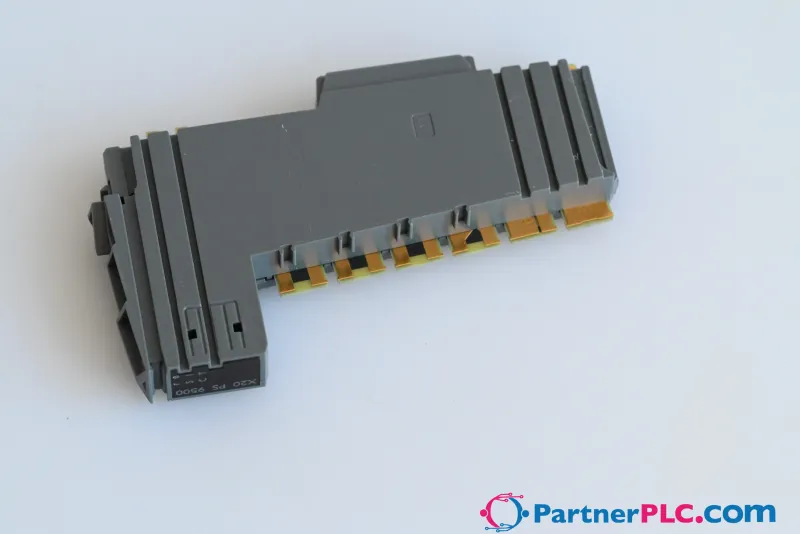

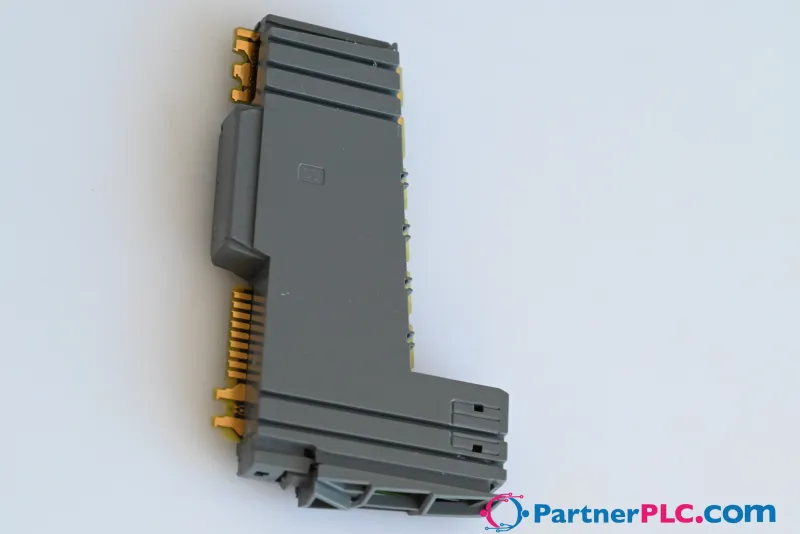

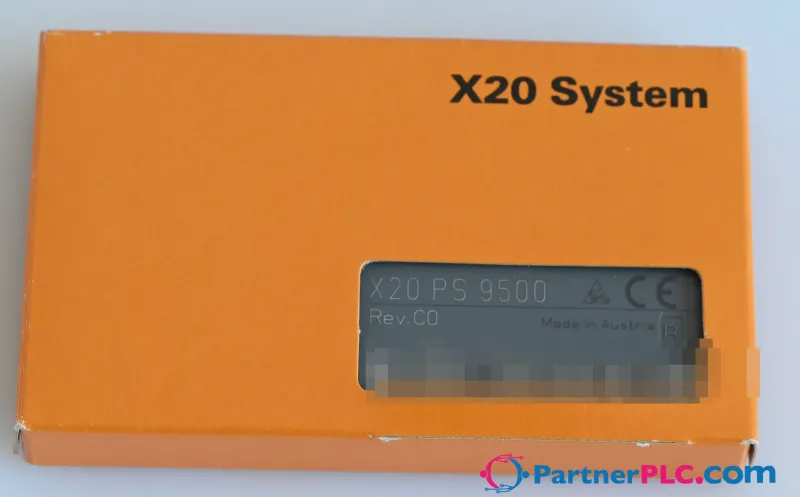

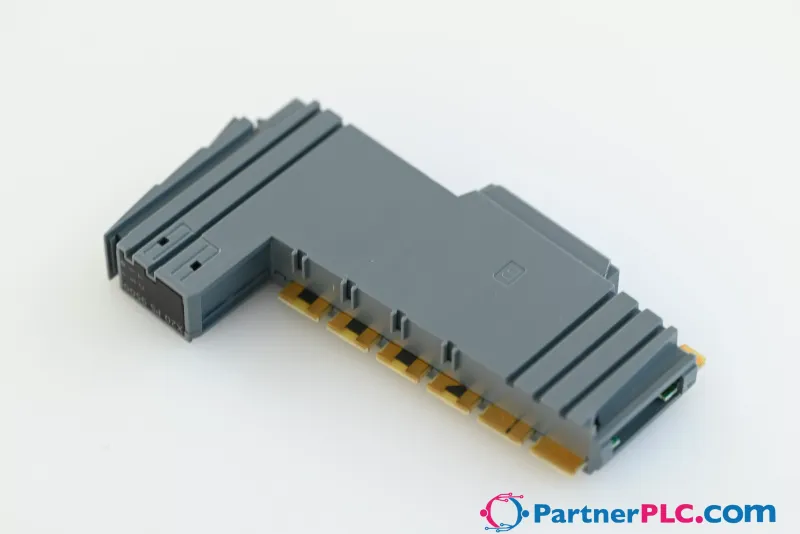

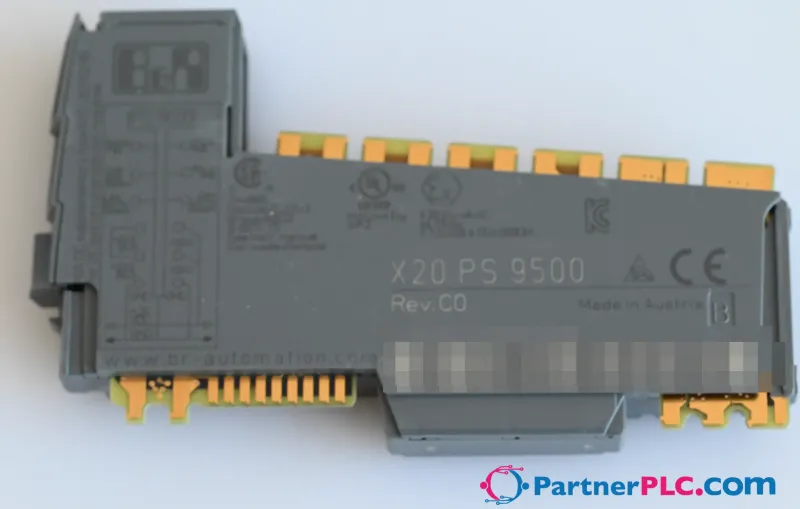

B&R X20PS9500 – Supply for Compact or Fieldbus CPU

Name: B&R X20PS9500 – Supply for Compact or Fieldbus CPU
Brand: B&R
SKU: X20PS9500
Price: 274.54 EUR
Availability: InStock

MPN: X20PS9500 · Brand: B&R

€274.54 excl. VAT & shipping

Request a Quote

12-month warranty

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	In stock — 1 available
Category	Power Supplies
Warranty	12-month
Weight	0.04 kg
Country of origin	AT
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can X20PS9500 be shipped?

X20PS9500 is in stock and typically ships within 1 business day via UPS, DHL or FedEx, worldwide.

Can I pick up X20PS9500 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — alongside standard UPS, DHL and FedEx shipping, express (next-day) delivery is available at checkout for in-stock items like X20PS9500.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X20PS9500, subject to availability and destination.

• Supply for Compact or Fieldbus CPU, X2X Link network and internal I/O power supply

• Electrical isolation of supply and CPU / X2X Link power supply

• Redundancy of CPU / X2X Link supply possible by operating multiple supply modules simultaneously

• RS232 configurable as an online interface

• CAN bus

The power supply module is used together with an X20 Compact or Fieldbus CPU. It is equipped with a supply for the Compact or Fieldbus CPU, X2X Link network and internal I/O power supply.

Accessories

Required accessories (order separately)

X20TB12	Terminal blocks — Tool-free wiring with push-in technology; Simple wire release using lever; Ability to label each terminal; Plain text labeling also possibl…
X20BB47	Undefined — Base for all X20 Fieldbus CPUs; 2 slots for interface modules; RS232 connection; CAN bus connection; Integrated terminating resistor for CA…
X20BB42	Undefined — Base for all X20 Fieldbus CPUs; 2 slots for interface modules; RS232 connection The bus module is a base for all X20 Fieldbus CPUs. It is e…
X20BB37	Undefined — Base for all X20 Fieldbus CPUs; RS232 connection; CAN bus connection; Integrated terminating resistor for CAN bus The bus module is the bas…
X20BB32	Undefined — Base for all X20 Fieldbus CPUs; RS232 connection The bus module is the base for all X20 Fieldbus CPUs. The left and right end cover plates…
X20BB27	Undefined — Base for all X20 Compact CPUs; RS232 connection; CAN bus connection; Integrated terminating resistor for CAN bus The bus module is the base…
X20BB22	Undefined — Base for all X20 Compact CPUs; RS232 connection The bus module is the base for all X20 Compact CPUs. The left and right end cover plates ar…

Specifications

Short description

Power supply module	24 VDC power supply module for Compact or Fieldbus CPU, X2X Link power supply and I/O
Interfaces	1x RS232, 1x CAN bus " data-placement="top" data-html="true" data-container="body" data-content="CAN bus only in connection with bus module X20BB27, X20BB37 or X20BB47.">

General information

Diagnostics – Module run/error	Yes, using LED status indicator and software
Diagnostics – CAN bus data transfer " data-placement="top" data-html="true" data-container="body" data-content="CAN bus only in connection with bus module X20BB27, X20BB37 or X20BB47.">	Yes, using LED status indicator
Diagnostics – RS232 data transfer	Yes, using LED status indicator
Diagnostics – Overload	Yes, using LED status indicator and software
Power consumption " data-placement="top" data-html="true" data-container="body" data-content="The specified values are maximum values. For examples of the exact calculation, see section "Mechanical and electrical configuration" in the X20 system user's manual."> – Internal I/O	0.6 W
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5
Certifications – DNV	Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: B (4 g); EMC: B (bridge and open deck)
Certifications – CCS	Yes
Certifications – LR	ENV1
Certifications – KR	Yes
Certifications – ABS	Yes
Certifications – BV	EC33B ; Temperature: 5 - 55°C; Vibration: 4 g; EMC: Bridge and open deck
Certifications – KC	Yes
B&R ID code	0x2018
Status indicators	Overload, operating state, module status, RS232, CAN bus " data-placement="top" data-html="true" data-container="body" data-content="CAN bus only in connection with bus module X20BB27, X20BB37 or X20BB47.">
Power consumption for X2X Link power supply " data-placement="top" data-html="true" data-container="body" data-content="The specified values are maximum values. For examples of the exact calculation, see section "Mechanical and electrical configuration" in the X20 system user's manual.">	1.42 W
Additional power dissipation caused by actuators (resistive) [W]	-

CPU / X2X Link power supply input

Input voltage	24 VDC -15% / +20%
Input current	Max. 0.7 A
Fuse	Integrated, cannot be replaced
Reverse polarity protection	Yes

CPU / X2X Link power supply output

Nominal output power	7 W
Parallel connection	Yes " data-placement="top" data-html="true" data-container="body" data-content="In parallel operation, it is only permitted to expect 75% of the nominal power. It is important to make sure that all power supply units operated in parallel are switched on and off at the same time.">
Redundant operation	Yes
Overload characteristics	Short-circuit proof, temporary overload

Input I/O power supply

Input voltage	24 VDC -15% / +20%
Fuse	Required line fuse: Max. 10 A, slow-blow
Reverse polarity protection	No

Output I/O power supply

Nominal output voltage	24 VDC
Behavior on short circuit	Required line fuse
Permissible contact load	10 A

Interfaces

Interface IF1 – Signal	RS232
Interface IF1 – Variant	Connection via 12-pin terminal block X20TB12
Interface IF1 – Transfer rate	Max. 115.2 kbit/s
Interface IF3 " data-placement="top" data-html="true" data-container="body" data-content="CAN bus only in connection with bus module X20BB27, X20BB37 or X20BB47."> – Signal	CAN bus
Interface IF3 " data-placement="top" data-html="true" data-container="body" data-content="CAN bus only in connection with bus module X20BB27, X20BB37 or X20BB47."> – Variant	Connection via 12-pin terminal block X20TB12
Interface IF3 " data-placement="top" data-html="true" data-container="body" data-content="CAN bus only in connection with bus module X20BB27, X20BB37 or X20BB47."> – Transfer rate	Max. 1 Mbit/s

Electrical properties

Electrical isolation

CPU/X2X Link supply isolated from CPU/X2X Link power supply ; I/O supply not isolated from I/O power supply

Operating conditions

Mounting orientation – Horizontal	Yes
Mounting orientation – Vertical	Yes
Installation elevation above sea level – 0 to 2000 m	No limitation
Installation elevation above sea level – >2000 m	Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature – Horizontal mounting orientation	-25 to 60°C
Temperature – Vertical mounting orientation	-25 to 50°C
Temperature – Derating	See section "Derating".
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C
Relative humidity – Operation	5 to 95%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Note	Order 1x terminal block X20TB12 separately. ; Order 1x Compact CPU base X20BB22 or X20BB27 separately ; Order 1x Fieldbus CPU base X20BB3x/4x separately
Pitch	12.5 +0.2 mm
