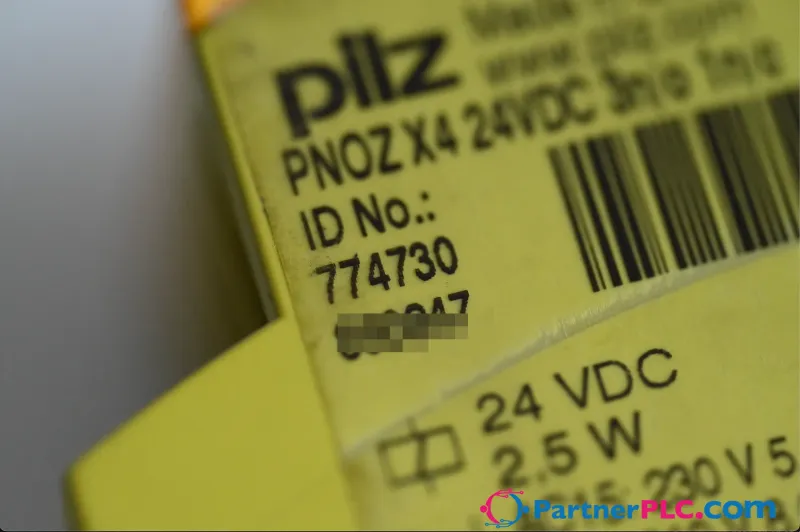

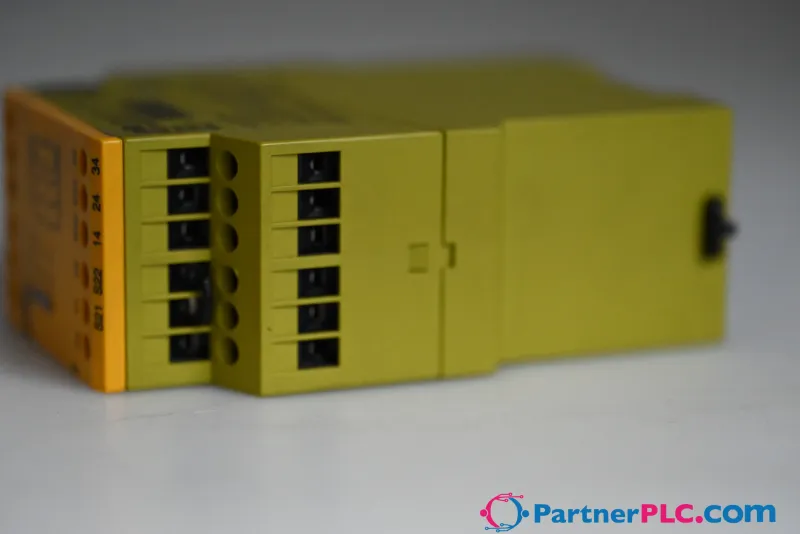

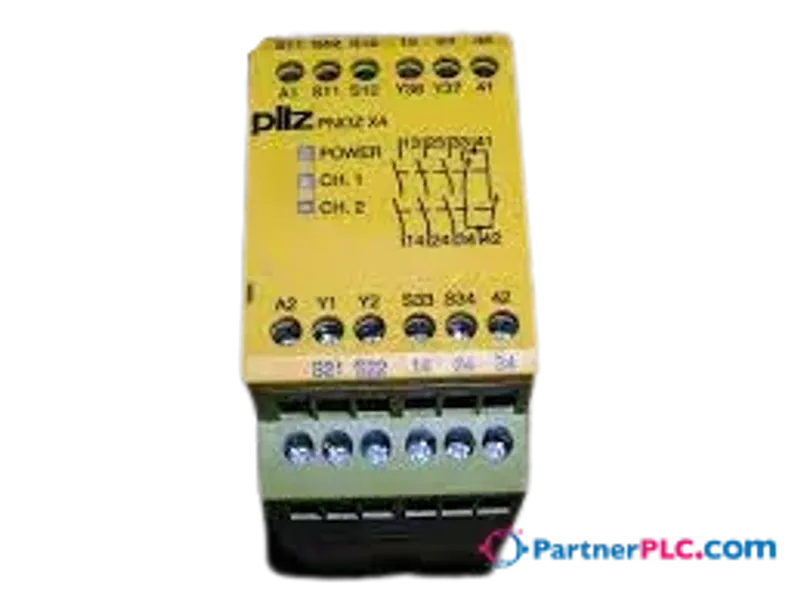

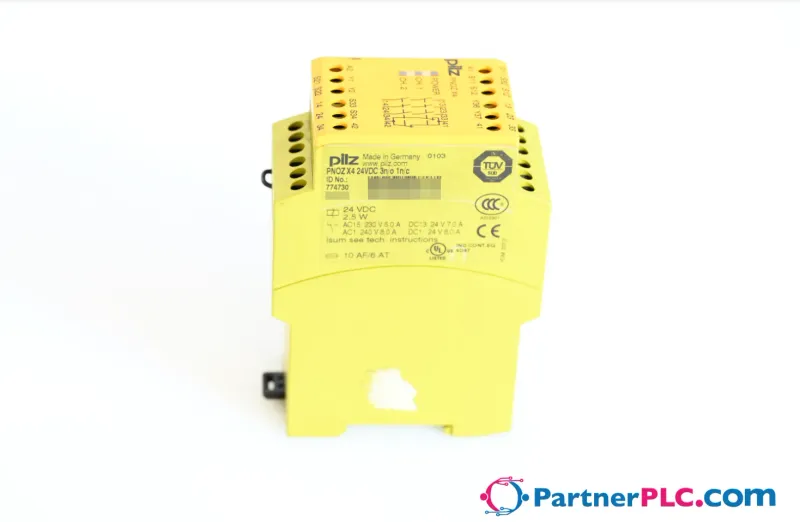

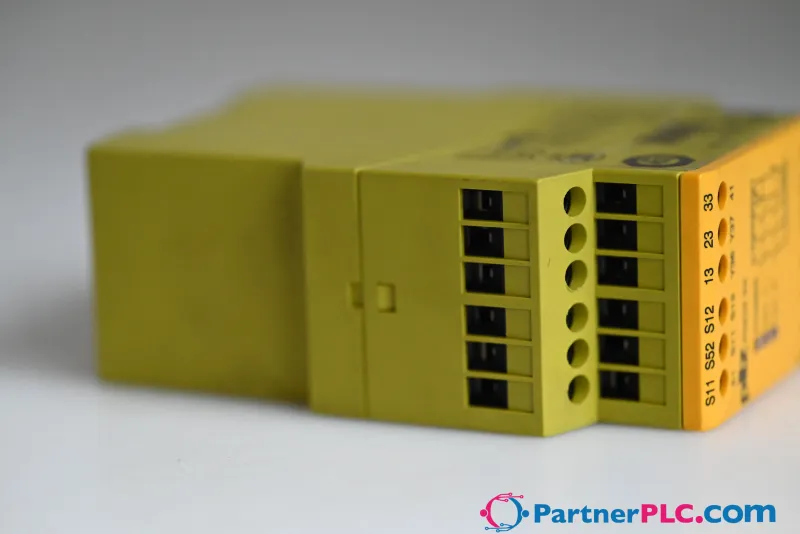

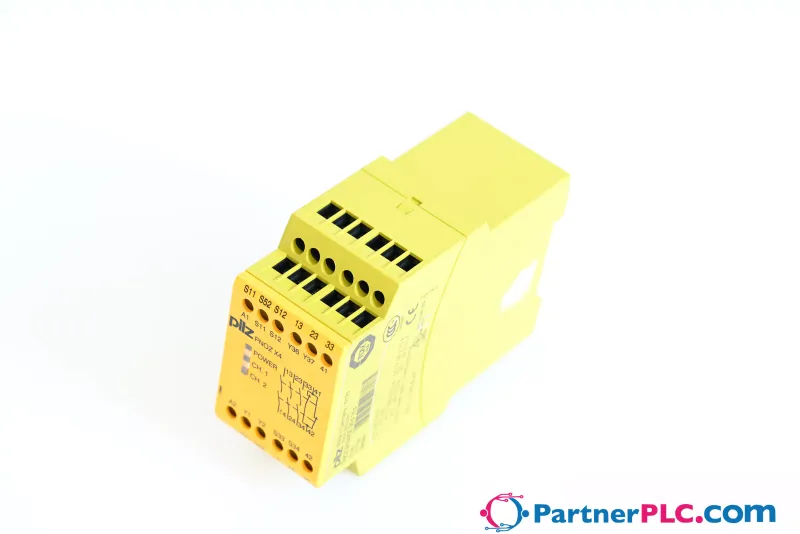

Pilz 774730

Monitoring of E-STOP, safety gates, light barrier

MPN: 774730
EAN: 4046548010428
Category: Monitoring of E-STOP, safety gates, light barriers

€19.08excl. VAT & shipping

In stock — 2 available·Ships within 1 business day

Need a larger quantity or a formal quote?

Request a Quote

3-month warranty
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

What is the Pilz 774730?

Monitoring of E-STOP, safety gates, light barrier

Specifications

General data

Product ID (Pilz order number)	774730
Approval	CCC, CE, UKCA, cULus Listed, TÜV, EAC (Eurasian)
Lifecycle	Active (current Pilz product)

Electrical data

Supply voltage (V)	24 V
Type of supply voltage U1	DC
Power consumption DC	2.5 W

Inputs

Number of inputs

Semiconductor outputs

Number of semicond. outputs

Relay outputs

Utilisation cat. AC/DC1 stand.	EN 60947-4-1
Voltage AC1 safety cont.	240 V
Max. current AC1 safety cont.	8 A
Voltage DC1 safety cont.	24 V
Max. current DC1 safety cont.	8 A
Utilisation cat. AC15/DC13sta.	EN 60947-5-1
Voltage AC15 safety cont.	230 V
Max. current AC15 safety cont.	5 A
Voltage DC13 safety cont.	24 V
Safety contacts: AC at UL	240 VAC G. P.
Safety contacts: pilot duty	B300, R300
Relay contact material	AgSnO2
Addit. contact details relay	+ 0.2 µm Au

Environmental data

Climatic suitability to ...	EN 60068-2-78
Ambient temperature	-10 °C
Humidity rating	93 % r. h. at 40 °C
Condensation permitted?	Not permitted
EMC to standard ...	EN 60947-5-1, EN 61000-6-2, EN 61326-3-1
Vibration to standard ...	EN 60068-2-6
Clearance & creepage dist. to	EN 60947-1
Overvoltage category	III / II
Pollution degree clear.&creep.	2
Protection type, housing	IP40

Mechanical data

Mounting position	any
Housing material front plate	ABS UL 94 V0
Connection terminal	Screw terminal
Terminal style	fixed
Flex. cond. c/s AWG info	24 - 10 AWG
Height dimension	87 mm
Width dimension	45 mm
Depth dimension	121 mm
Net weight	270 g
Gross weight	280 g

Environment

RoHS directive	2011/65/EU, 2015/863/EU
RoHS conformity	yes
RoHS exceptions	yes
RoHS except.s acc. to direct.	6c, 7c I
REACh compliance	contains min. 1 SVHC-substance
REACh included substances	Lead, Lead oxide
%-part of the pollutant	> 0,1 %
CAS No.	7439-92-1, 1317-36-8
SCIP entry available	yes
WEEE classification (08/2018)	5 devices (feed size < 50cm)

Commercial data

ECLASS version	ECLASS-13
ECLASS Reference Feature	27371819
ETIM Version	ETIM-9.0
ETIM Reference Group	EG000019
ETIM Reference Feature	EC001449
UNSPSC 25	39122331
GTIN	4046548010428
Volume	0.526 dm3
Harmonized System Code	85364900
Quantity per packaging unit	1
